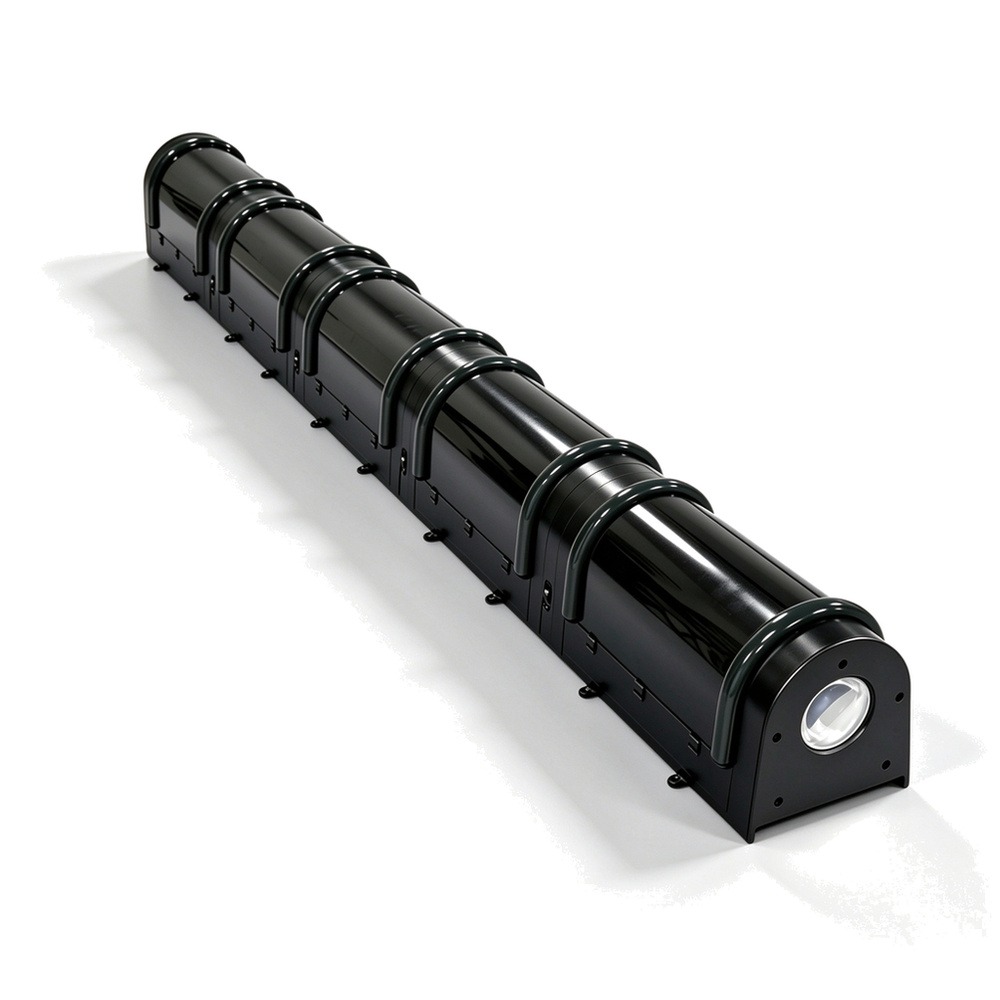

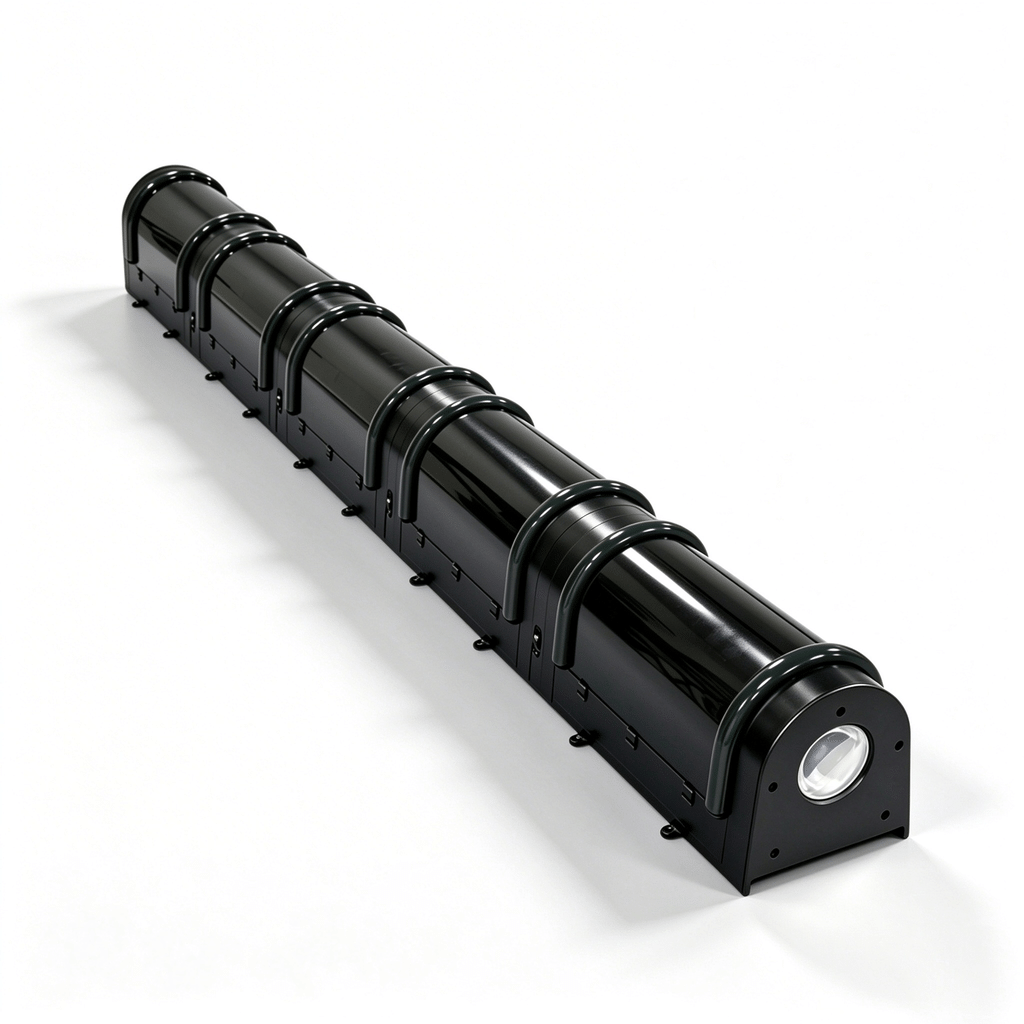

72 Pixel Train Bar WS2811 RGB Addressable LED Pixel Bar Light
* Garantie: Dedans 2 année.[ Réparation gratuite, fournir des accessoires,si nécessaire, retourner à l’usine,L’acheteur doit payer les frais d’expédition.]

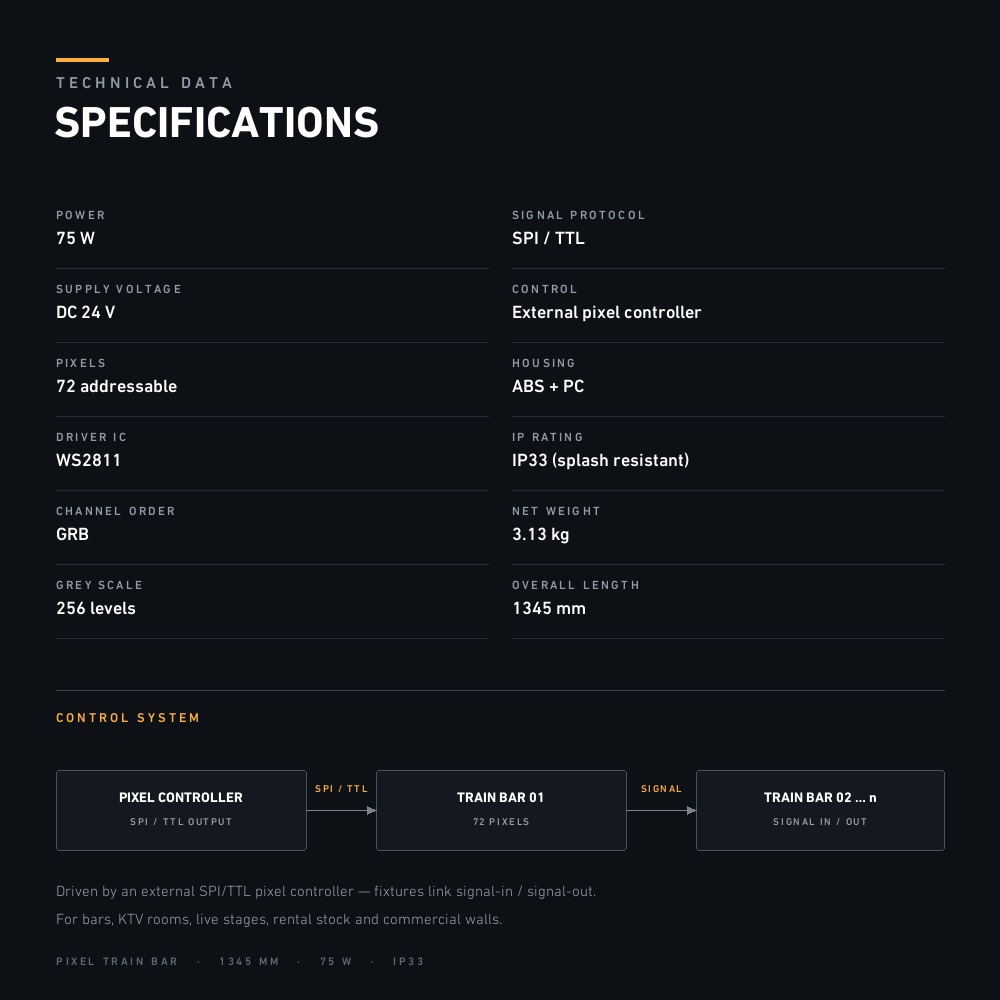

Product Technical Parameters:
- Tension de fonctionnement: DC 24V
- Consommation d’énergie: 75W
- LED Source: RGB 3-in-1 addressable pixels
- Pixel Quantity: 72 Pixels (1.35m length)
- Driver IC: WS2811
- Channel Order: GRB
- Grey Scale: 256 levels
- Protocole de contrôle: SPI / TTL
- Mode de contrôle: External pixel controller (signal-in / signal-out daisy chain)
- Housing Material: ABS + PC
- Indice IP: IP33 (splash resistant)

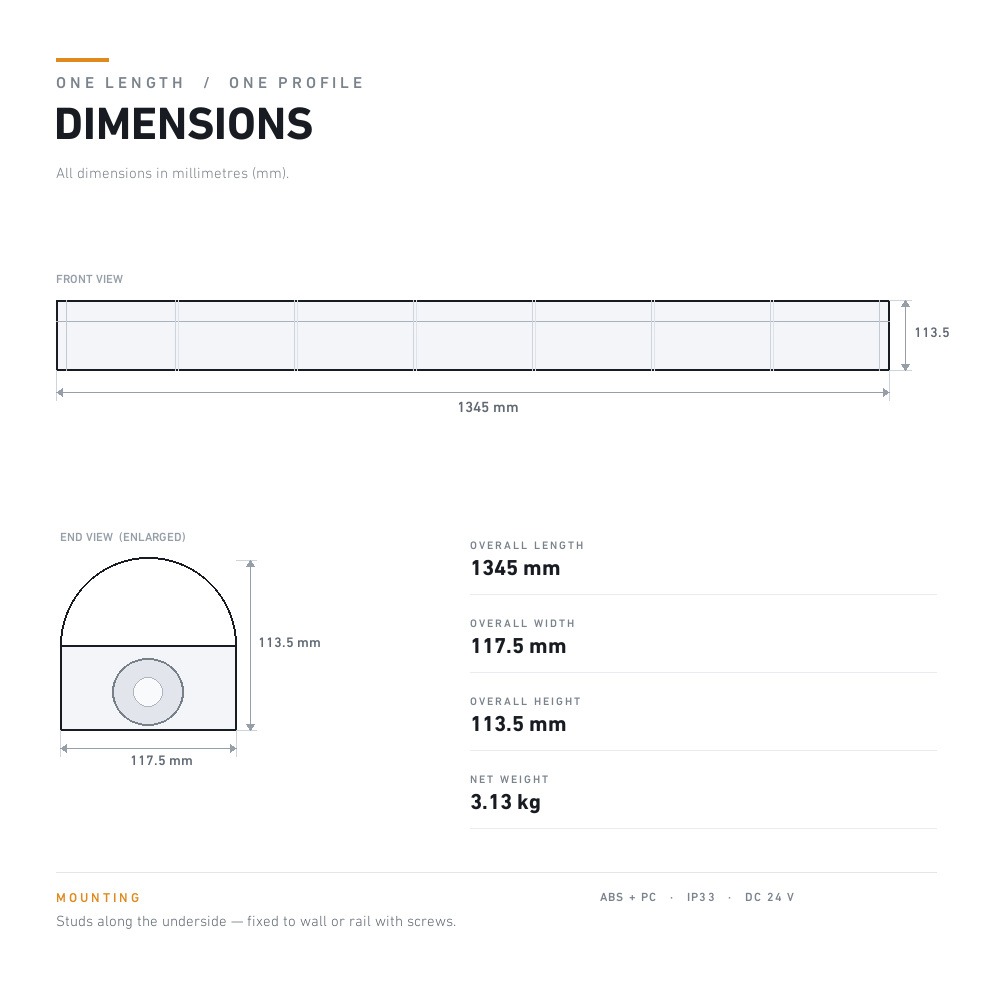

- Overall Size: 1345 x 117.5 x 113.5 mm
- Poids net: 3.13 Kg
- Mounting: Wall or rail mount via base studs
Caractéristiques clés:

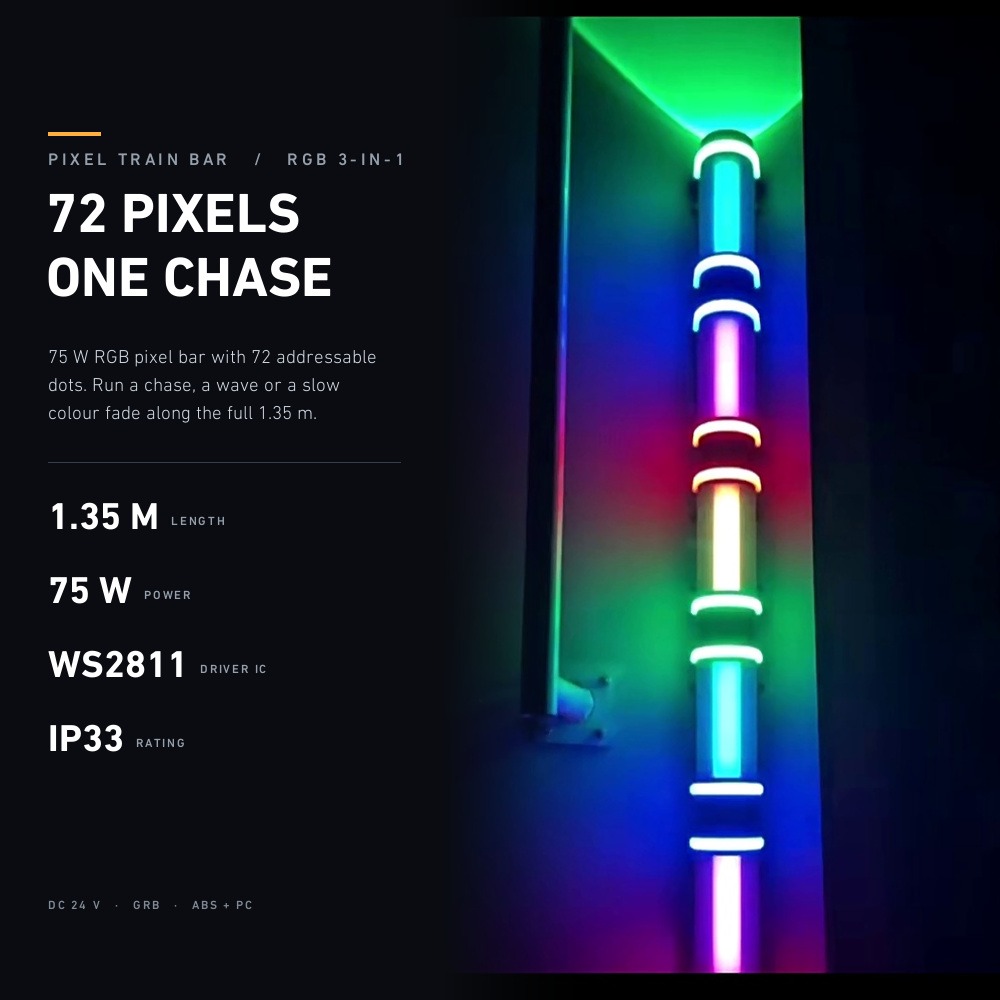

- 72 independent addressable pixels run a chase, wave, or slow colour fade along the full 1.35 m barrel.

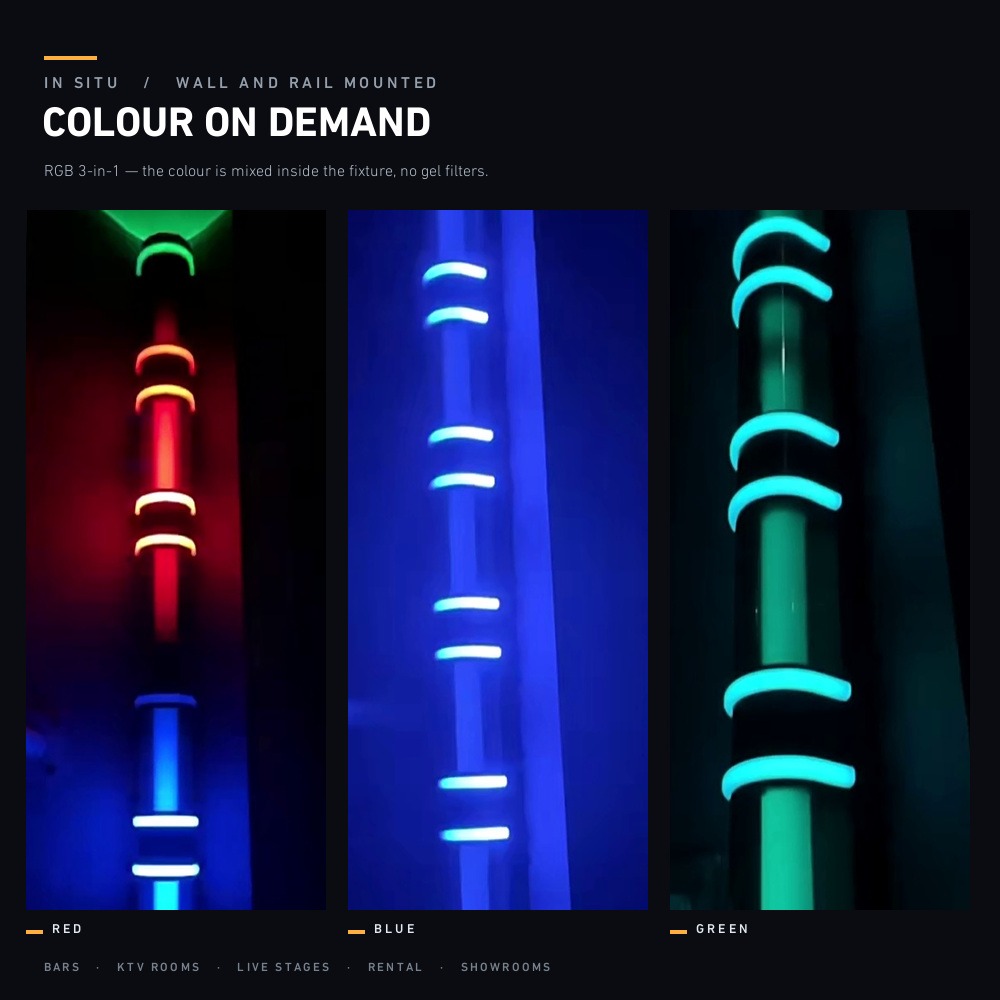

- RGB 3-in-1 colour mixing inside the fixture — no gel filters needed.

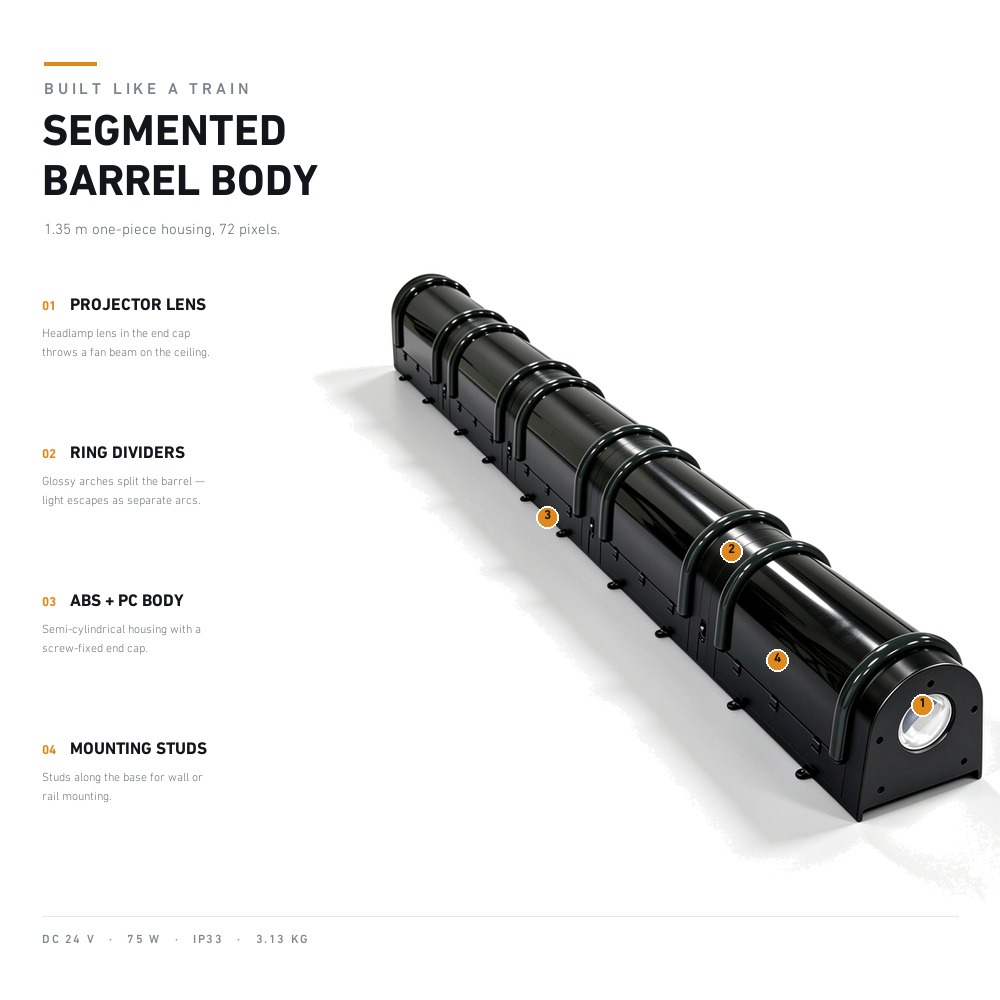

- Segmented glossy ring dividers split the barrel so light escapes as separate glowing arcs, like train carriages.
- Headlamp projector lens in the end cap throws a fan beam onto the ceiling.
- Driven by an external SPI/TTL pixel controller; fixtures link signal-in / signal-out for long runs.

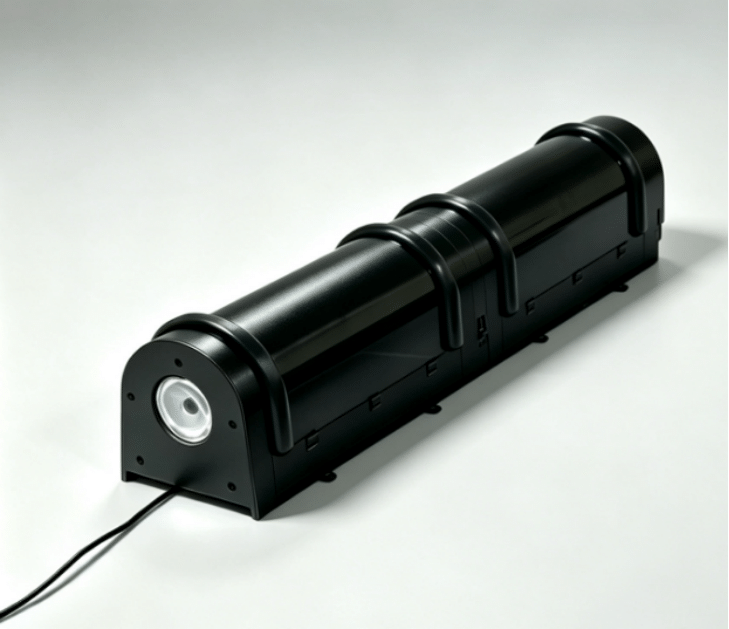

- Semi-cylindrical ABS+PC housing with screw-fixed end cap and mounting studs.
DMX / Channel Description:
- Pixel control via external SPI/TTL pixel controller (WS2811 protocol, GRB order, 256 grey levels).
- Each of the 72 pixels is individually addressable for chase, wave, jump, fade and custom mapping effects.
- Fixture links signal-in / signal-out so multiple Train Bars can be chained to one controller.
Applications:
- Bars, lounges and pubs
- KTV rooms and private clubs
- Live stages and performances
- Rental and event production
- Showrooms and commercial feature walls
