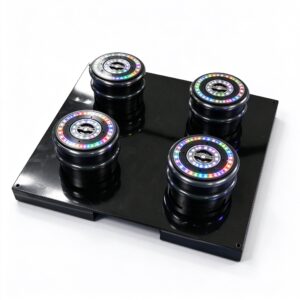

3D Gyro Pixel Light WS2812 RGB Matrix Stage Light 500x500mm Modular 1-3 Layers Beam Pixel Dual Source

3D Gyro Pixel Light WS2812 RGB Matrix Stage Light 500x500mm Modular 1-3 Layers Beam Pixel Dual Source

* 보증: 이내 2 년.[ 무료 수리, 모든 액세서리를 제공하십시오,공장으로 돌아가야 하는 경우,Buyer need pay for the shipping cost.

Product Technical Parameters:

모델: SDIP-220V-249D-WS2812
형: 3D Gyro Pixel Light / LED Matrix Panel
전압: AC 110-220V
힘: 48W (1 layer) / 73W (2 layers) / 98W (3 layers)
크기: 500 x 500 x 98 밀리미터 (1 layer) / 500 x 500 x 138 밀리미터 (2 layers) / 500 x 500 x 178 밀리미터 (3 layers)
발광 다이오드: WS2812 5050 RGB를 선택합니다.
IC Model: WS2812
채널: GRB
Pixels: 184 (1 layer) / 216 (2 layers) / 248 (3 layers)
Greyscale: 256 levels
재료: PC + 아 bs + metal
제어: TTL / SPI; 아트넷, DMX512 시리즈, 매드릭스, DVI를 참조하십시오
방수하다: IP33 등급
무게: 4.25 킬로그램 (1 layer) / 4.95 킬로그램 (2 layers) / 5.70 킬로그램 (3 layers)
수명: 50,000 시간
설치: wall screws or ceiling hooks, 4 fixing points per panel

Key Features:
1. DUAL LIGHT SOURCE – Each gyro head pairs an addressable WS2812 pixel ring with a central RGB beam lens, so pixel graphics and beam effects run from one fixture.
2. MODULAR 1/2/3 LAYERS – The same 500 x 500 mm panel stacks into two or three layers in 40 mm steps, building taller 3D pixel walls without changing the fixture.
3. TOOL-FREE ROTARY LOCK – Heads seat into the socket and lock with a twist; four heads per panel, fast to install and service on site.
4. DAISY-CHAIN POWER AND SIGNAL – AC 110-220V hand-in-hand power plus RJ45 in/out per panel; TTL/SPI at the fixture, 아트넷 / DMX512 시리즈 / MADRIX from the controller.
5. 184-248 PIXELS PER PANEL – WS2812 5050 RGB를 선택합니다., GRB channel, 256 grey levels, 50,000-hour lifespan, PC + 아 bs + metal housing, IP33 등급.

Applications: nightclub, live stage, touring production, exhibition, 텔레비젼 스튜디오, architectural feature wall
