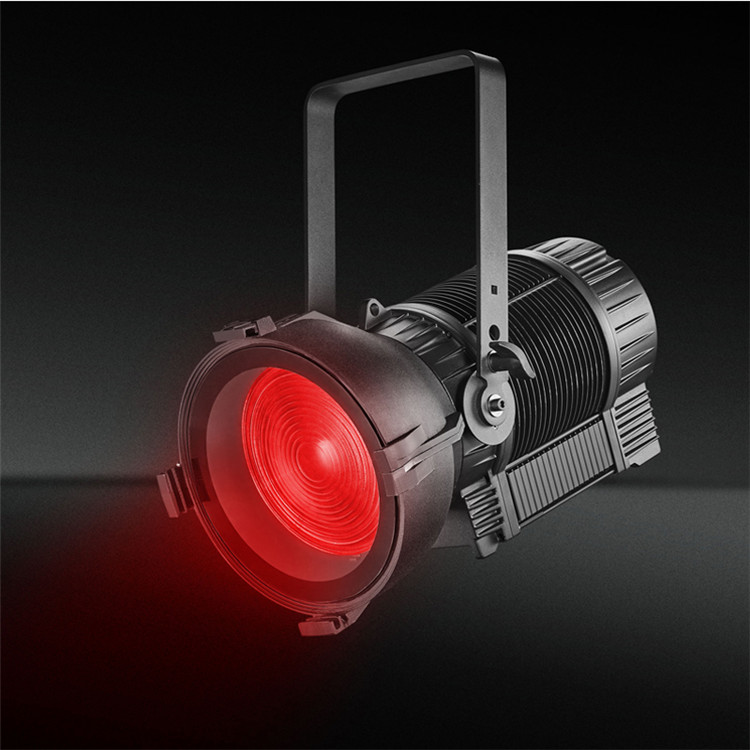

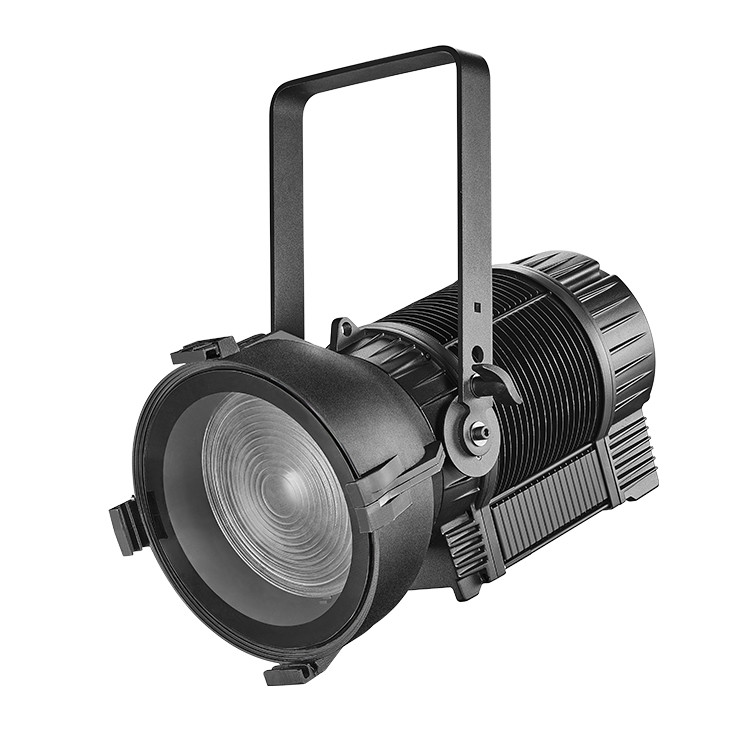

자동 급상승 HS-FS300OUT를 가진 IP65 옥외 300W 5IN1 RGBAL LED 프레넬

This fresnel features with a high power 300W RGBAL full color led lamp, adjustable color temperature from 2700K to 12,000K. This model comes with Die-casting Aluminum body, with the zoom lens options from 15°-30°by DMX controlled.

300W Theater Spotlight system was designed for the studio and other applications where high-definition lighting is a must. About this new product, it can make high power of 300W, using RGBAL 5IN1 LED, color included Red, Green, Blue, Amber, Lime. With RGBAL full color, HSIC intelligent color mix system. Fully Tuneable from 2,700 to 12,000K，similar to sunrise to sunset. Adjust high quality mix color. Also with our own optical, make a stable and efficient brightness effect.

Control features of the IP Rated LED Studio Fresnel includes auto zoom, DMX Controlled electronic strobe , 16bit dimming and selectable dimming curve modes. This LED fixture produces flicker free operation making it ideal for use in TV and FILM. It also offers adjustable refresh frequency and gamma brightness, IP rated 3pin DMX and power in/out connections.

• Optional Models

• 광학계

1. LED Power: 300W
2. LED color: RGBAL 5in(300W)/Single color WW/CW (200W/300)
3. Fully Tuneable from 2,700 to 12,000K
4. Led Lamp: Imported Led
5. Color Rendering Index(CRI (영어)): Ra≥90
6. Zoom Functin: Auto zoom by DMX
7. 빔 각도(Beam Angle): 15°-30°
8. LED Life Time: over 50,000 시간

• 기능

1. Housing: Die-casting Aluminum
2. HSIC color management system
3. 스트로브 :1-25times/sec
4. Technology: High-quality optical system, glass reflector

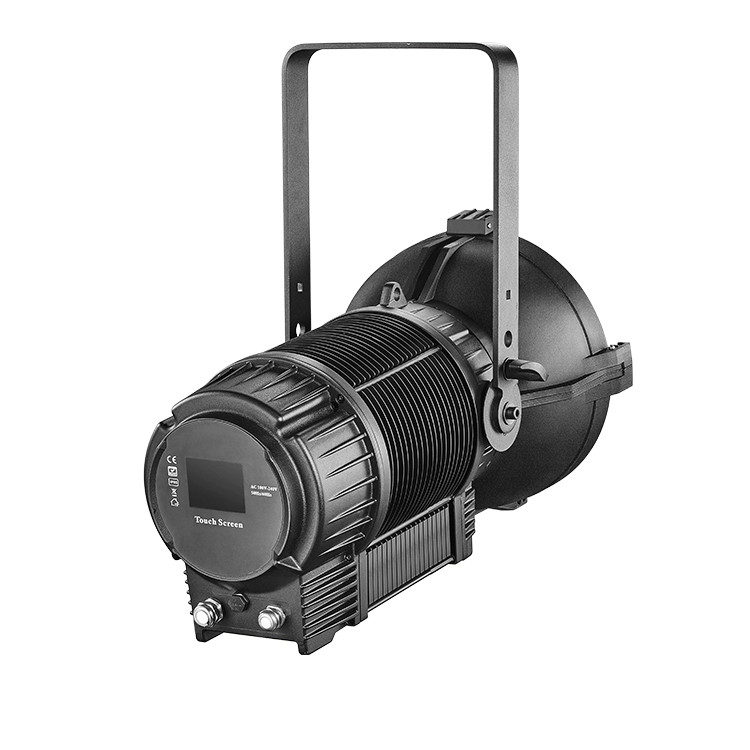

5. Touch screen: LCD with touch screen
6. Fan-Less Housing

• 제어

1. Control Protocol: RDM / 디엠엑스
2. Control system: DMX512 시리즈, Auto run and Master/Slave
3. 제어 채널: 5/22채널

• 전원 공급 장치

1. 전원 공급 장치: 전자식 자동 범위 조정
2. 입력 전압: AC100-240 볼트
3. 전력 소비: 200/300W
4. Dimming Curve: 4 kinds
5. Dimming Mode Frequency: 500HZ (영문) – 25000HZ optional

• 근무 환경

1. 작동 온도: -30°C~40°C
2. Cooling System: No fan no noise
3. Thermal Sensor Monitoring: Over-temperature Protection
4. IP Grade: IP65 waterproof

• 승인

1. 세륨 & 로에스
2. 다른 인증서가 필요한 경우, 우리와 함께 확인하십시오

• 제품 및 포장 치수

1. 포장 크기: 670*385*390밀리미터 (26.3*15.1*15.3 인치)
2. 순중량: 12.66 킬로그램 (27.9 파운드)
3. 총중량: 14.78 킬로그램 (32.5 파운드)

• 포장 목록

1. IP65 FRESNEL WITH AUTO ZOOM
2. 사용 설명서
3. 전원 케이블
4. 3-핀 XLR 커넥터

• 선택적인 부속품

1. 비행 케이스: 4PC 입력 1
2. 클램프
3. 안전 로프
4. DMX 와이어
