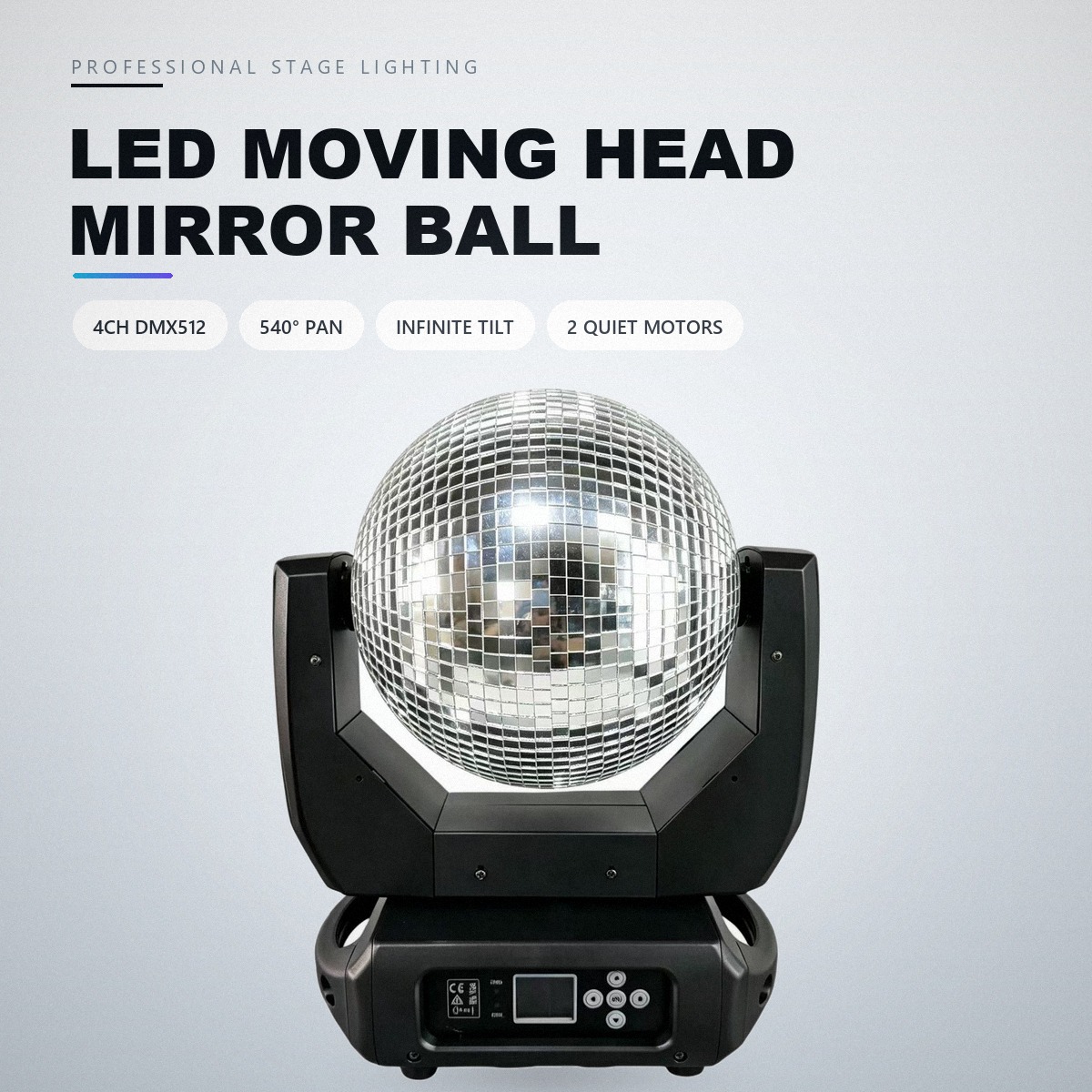

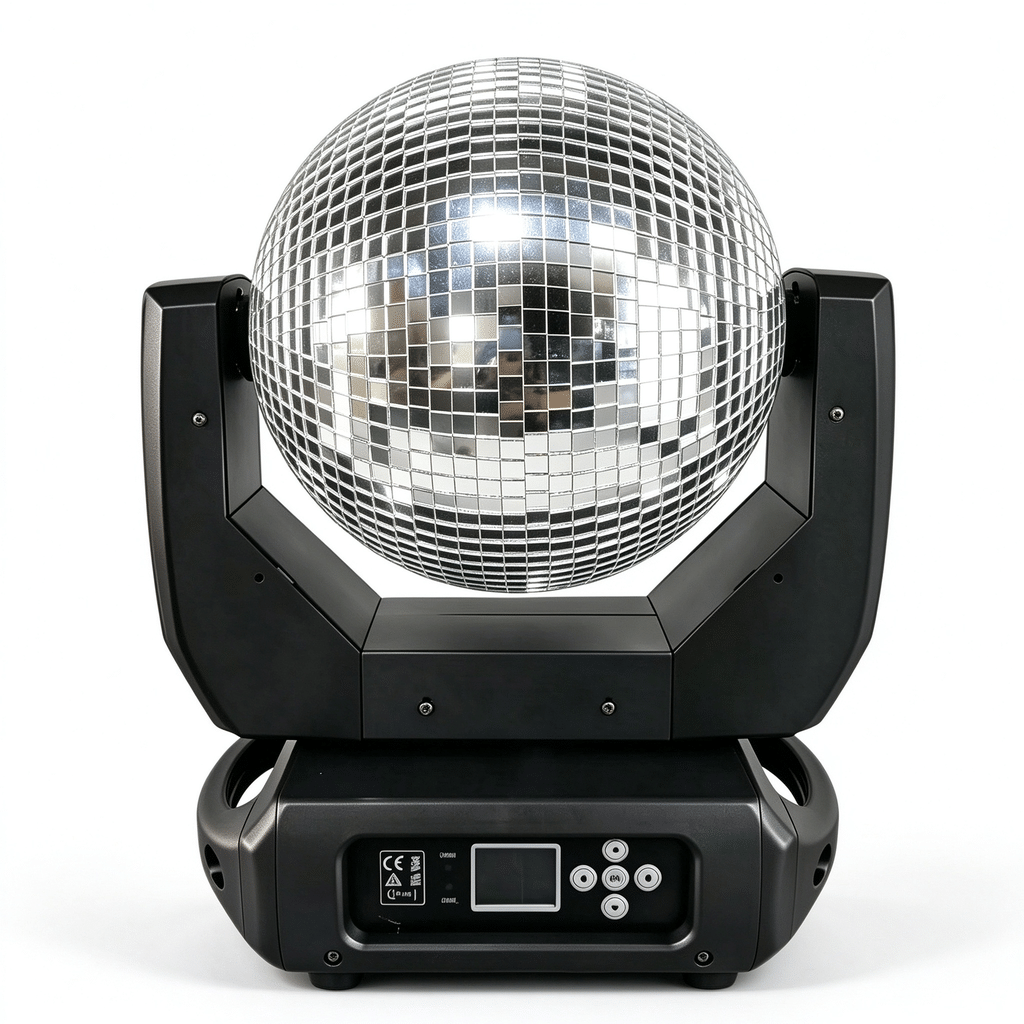

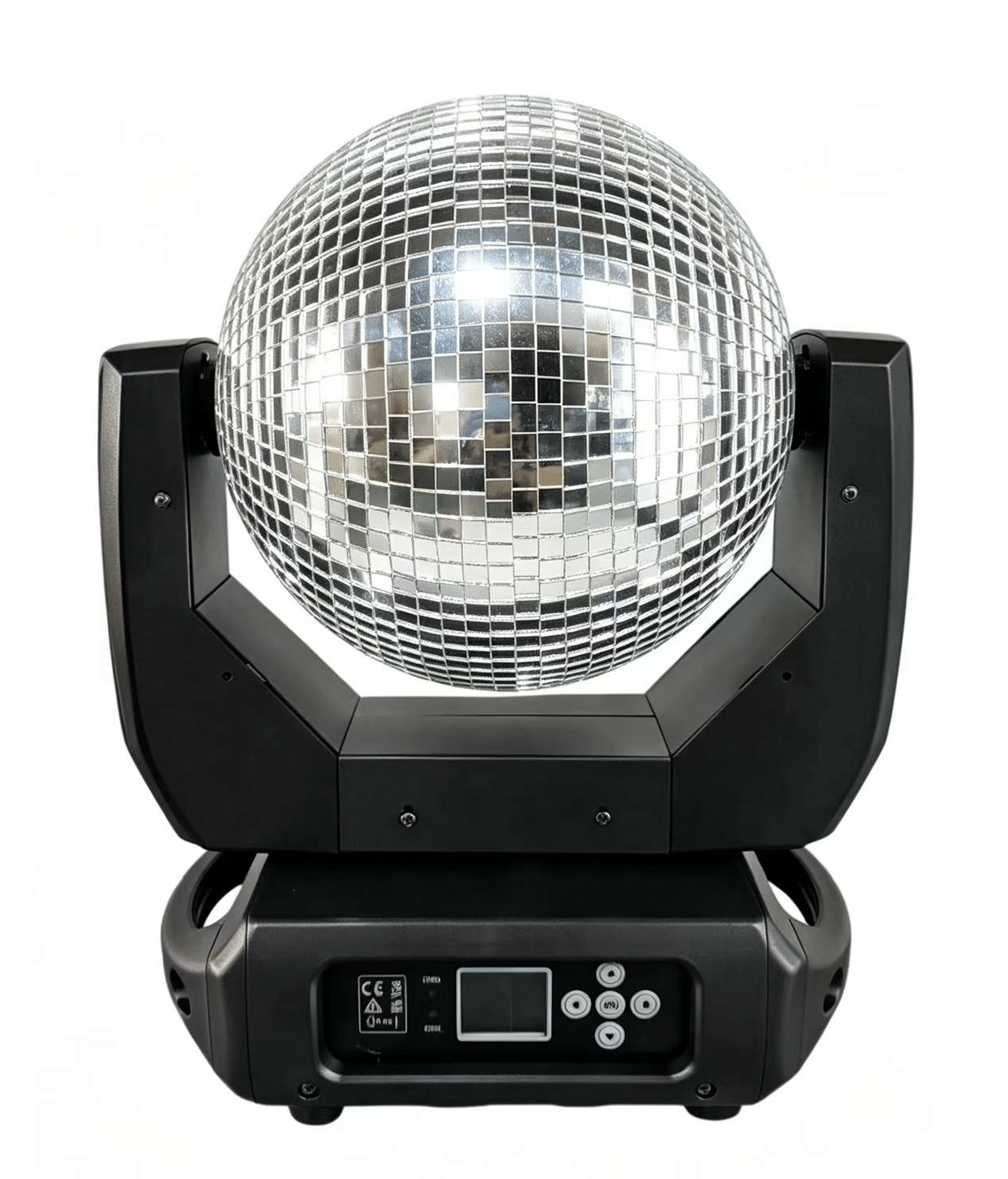

LED Moving Head Mirror Ball Light 4CH DMX512 Disco Ball Effect
* Garantie: Innerhalb 2 Jahr.[ Kostenlos zu reparieren, Stellen Sie jegliches Zubehör zur Verfügung,bei Bedarf zurück zur Fabrik,Der Käufer muss die Versandkosten bezahlen.]

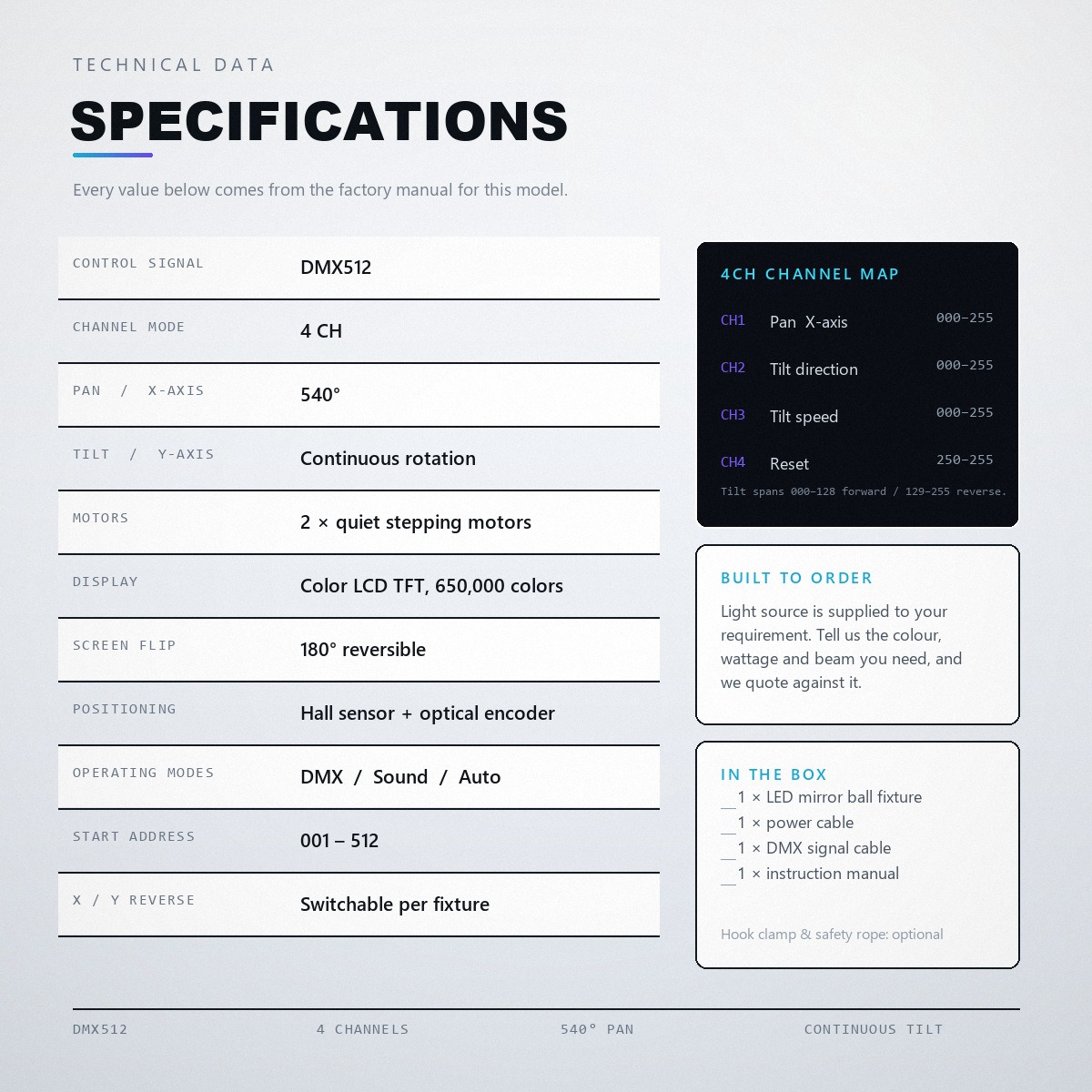

Product Technical Parameters:
- Control Signal: DMX512
- Channel Mode: 4 CH
- Pfanne / X-Achse: 540 Grad
- Kippen / Y-Achse: Continuous rotation
- Motors: 2 x quiet stepping motors
- Zeigen: Color LCD TFT, 650,000 Farben, 180 degree reversible
- Positioning: Hall sensor + optical encoder
- Operating Modes: DMX (DMX) / Klang aktiv / Auto
- Start Address: 001 – 512
- X / Y Reverse: Switchable per fixture

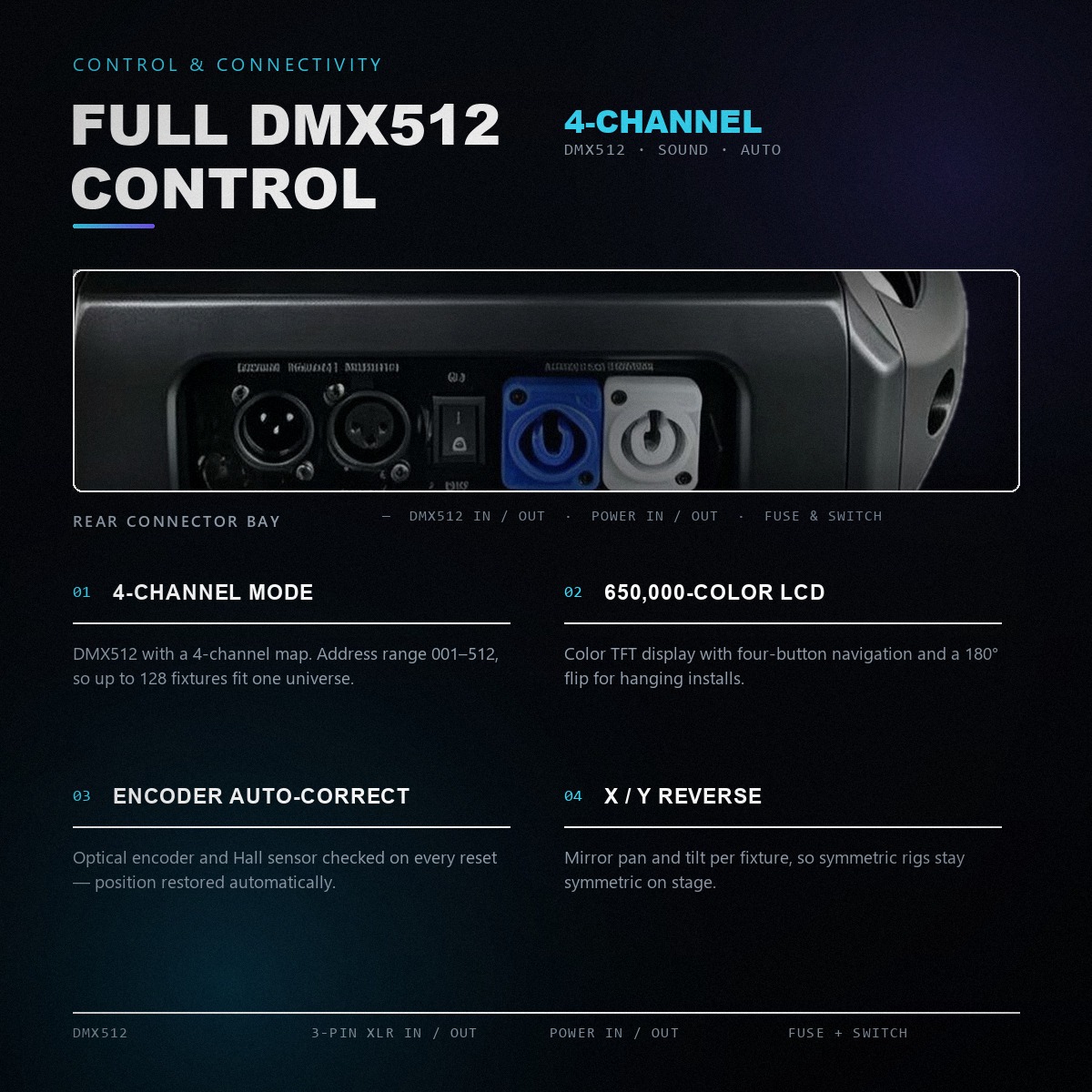

- Kontroll-Protokoll: DMX512 standard, 3-pin XLR in / aus
- Lichtquelle: Built to order – RGBW / single color / beam as requested
Hauptmerkmale:

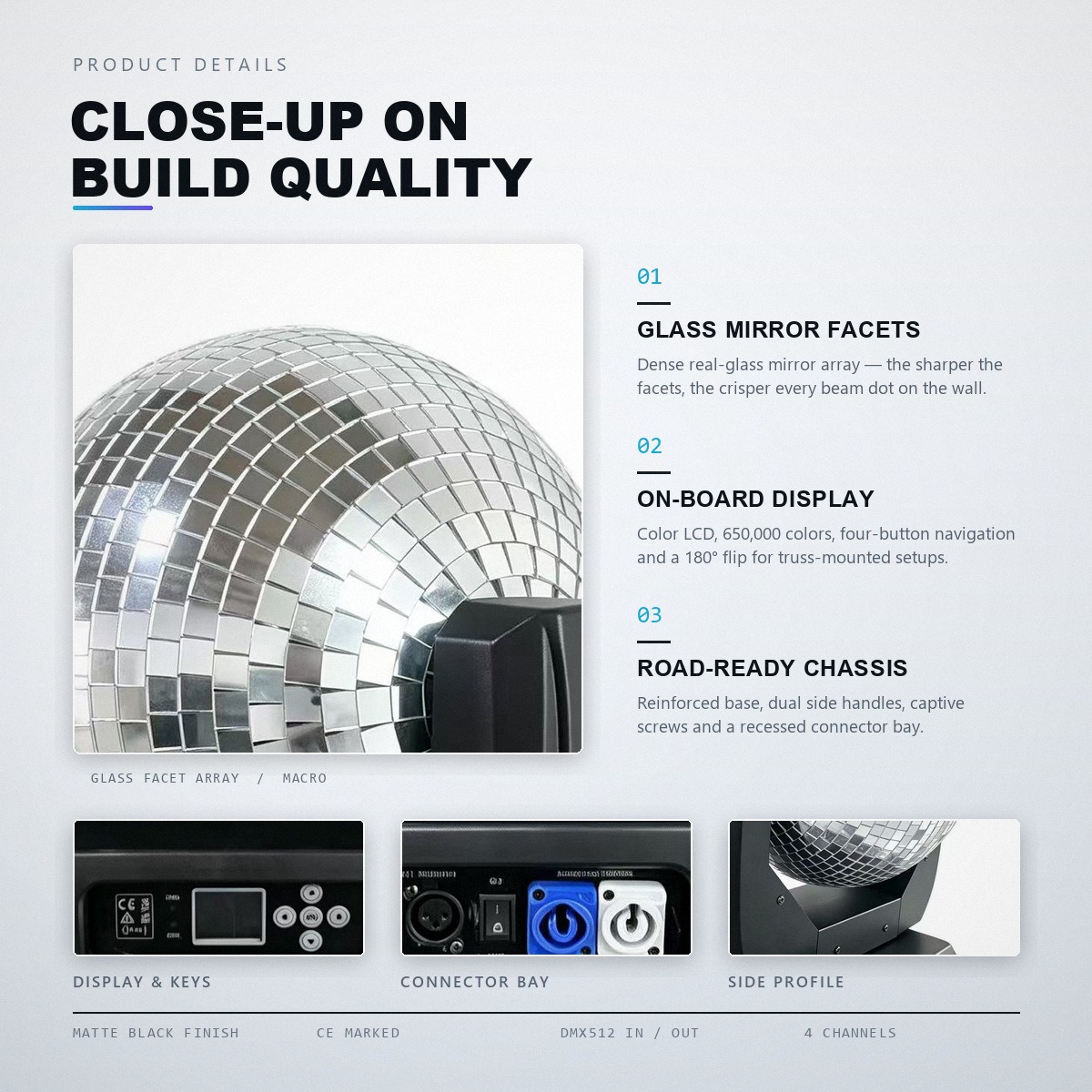

- Classic disco mirror ball driven by a moving-head yoke for dynamic, sweeping reflection.
- Pfanne 540 degree and continuous tilt rotation create non-stop ball motion.
- Two quiet stepping motors with automatic calibration and positioning.
- Hall sensor + optical encoder detect sync loss and auto-correct position.
- Color LCD TFT menu, 180 degree reversible display, Chinesisch / English language.
- DMX (DMX), sound-active and auto modes for standalone or console control.
- Light source customized to your color, wattage and beam requirements.
DMX Channel Description (4CH):
- CH1: Pfanne / X-Achse (000-255)
- CH2: Tilt direction (000-255; forward 000-128 / reverse 129-255)
- CH3: Tilt speed (000-255)
- CH4: Reset (250-255)

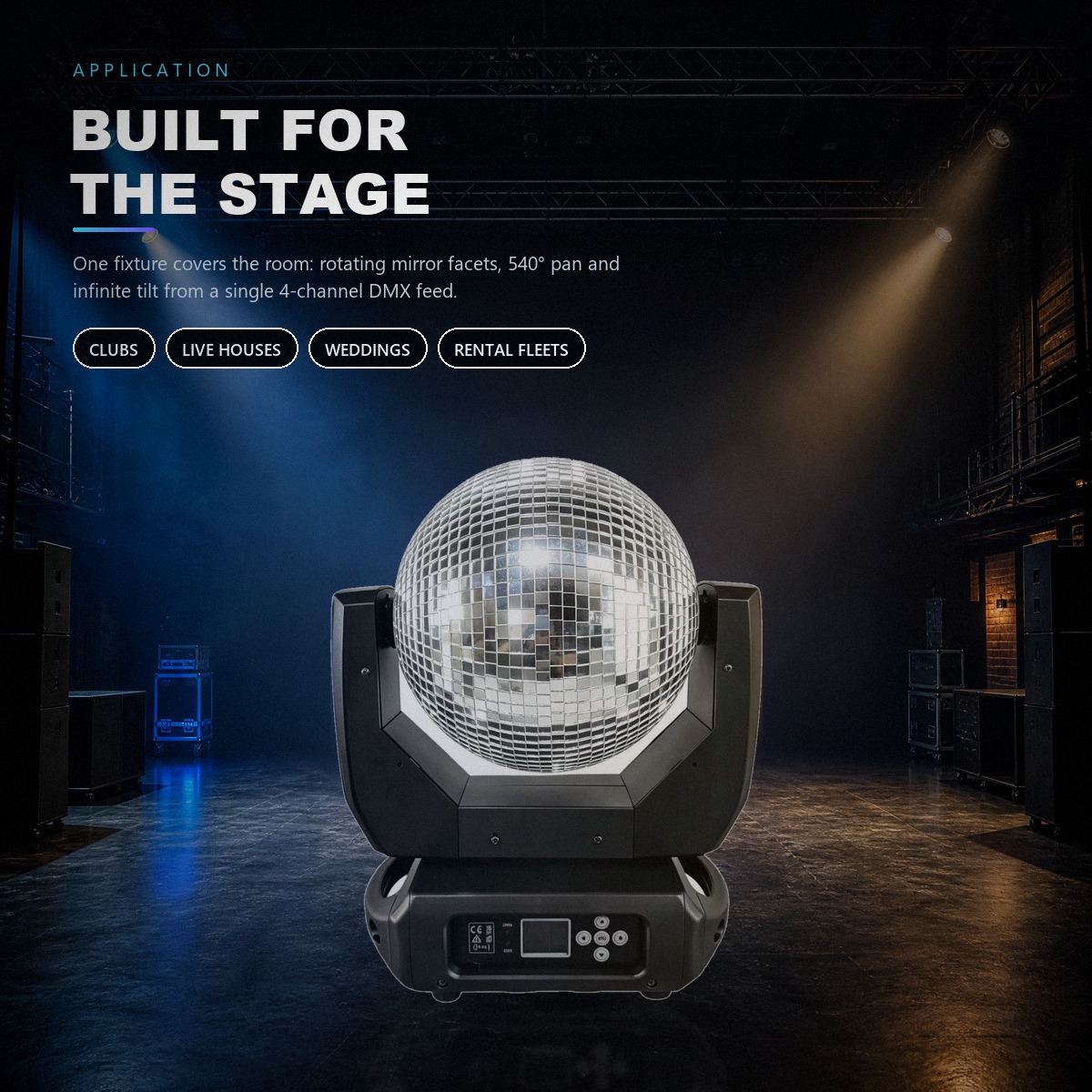

Applications:
- Diskothek, clubs and bars
- KTV rooms and lounges
- Wedding and party venues
- Live stages and performances
- Rental and event production
