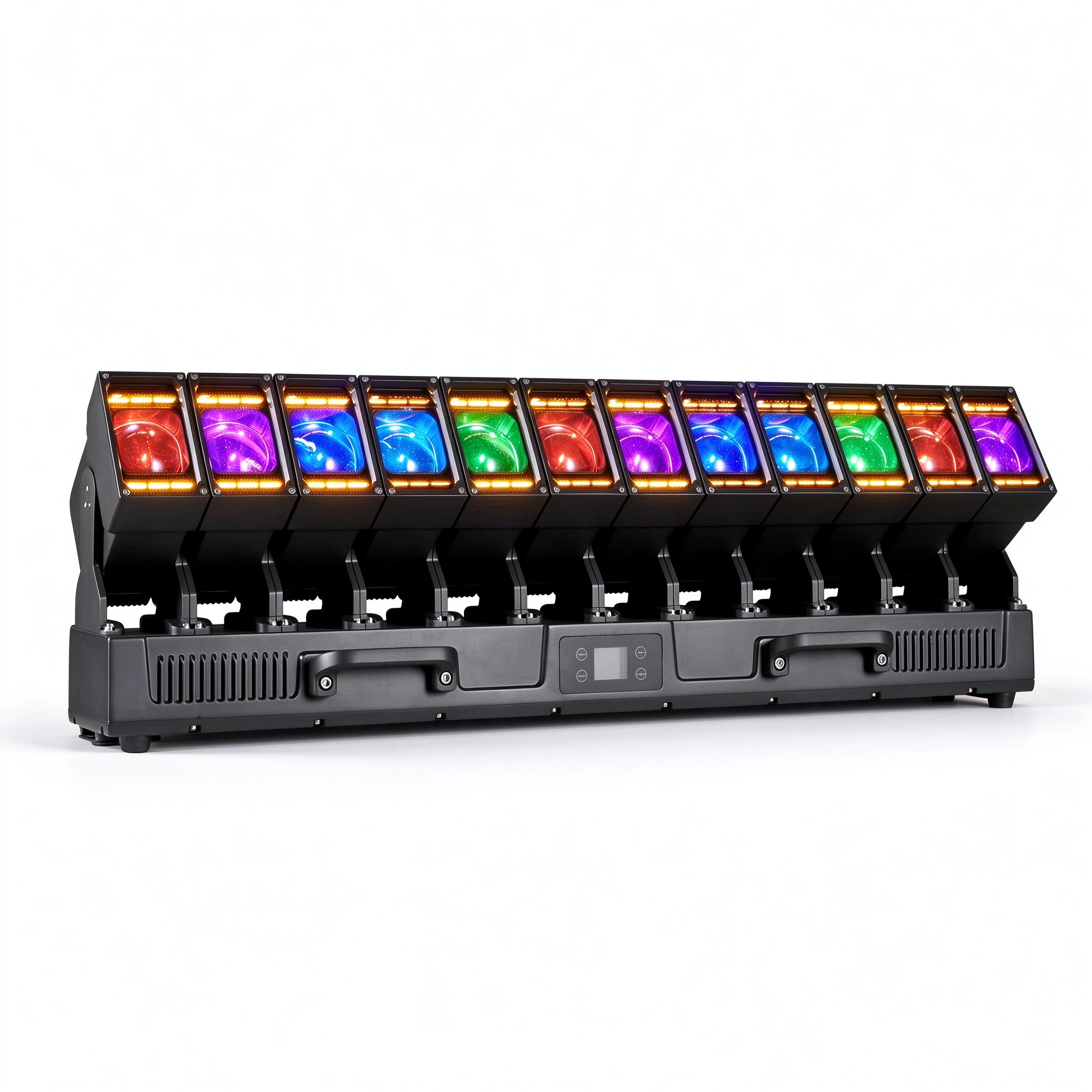

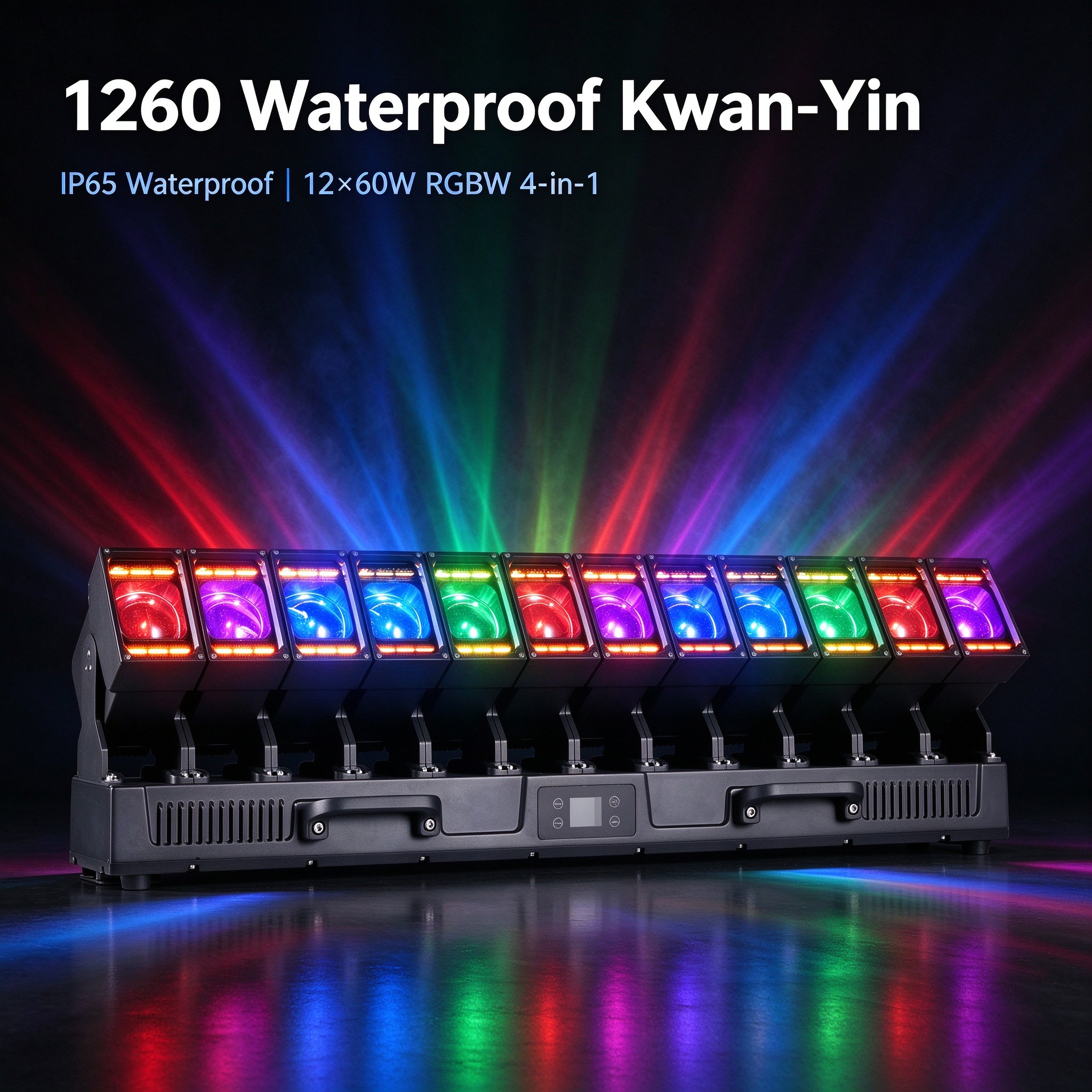

IP65 Waterproof Medusa 12x60W RGBW LED Pixel Bar Moving Head Light with 240x1W Strobe Outdoor Stage Light

* 보증: 이내 2 년. [ 무료 수리, 모든 액세서리를 제공하십시오, 공장으로 돌아가야 하는 경우, Buyer need pay for the shipping cost. ]

Product Technical Parameters:

• Main Light Source: 12 x 60W RGBW 4-in-1 LED
• Strobe Light 1: 120 x 1W 6500K White LED
• Strobe Light 2: 120 x 1W 3000K White LED
• 빔 각도(Beam Angle): 4.5° – 36° (Motorized Zoom)
• 조도 (4.5°): 21,343 Lux @ 5m
• 조도 (36°): 1,653 Lux @ 5m
• Main Light Brightness: 8,380 Lm
• Strobe Beam Angle: 120°
• Strobe Brightness (7000K): 14,700 Lm
• Strobe Brightness (3000K): 12,250 Lm
• DMX 채널: 26채널 / 59채널 / 128채널 / 152채널 / 182채널 / 314채널 / 329채널
• LED Control: Single Pixel Point Control
• 디 밍: 0-100% Linear Dimming
• Strobe Effect: 0-25헤르츠, Multiple Strobe Effects, Adjustable Speed
• Color Mixing: RGBW Mixing or CMY Mixing Effect
• 입력 전압: AC 200V-240V, 50/60헤르츠
• 전력 소비: 800W, 4.8A @ 230V 50Hz
• 작동 온도: -40°C to 45°C
• Starting Temperature: -20°C to 45°C
• 제품 크기: 1000 x 232 x 321 밀리미터
• 순중량: 30.5 킬로그램
• Housing Color: 검정

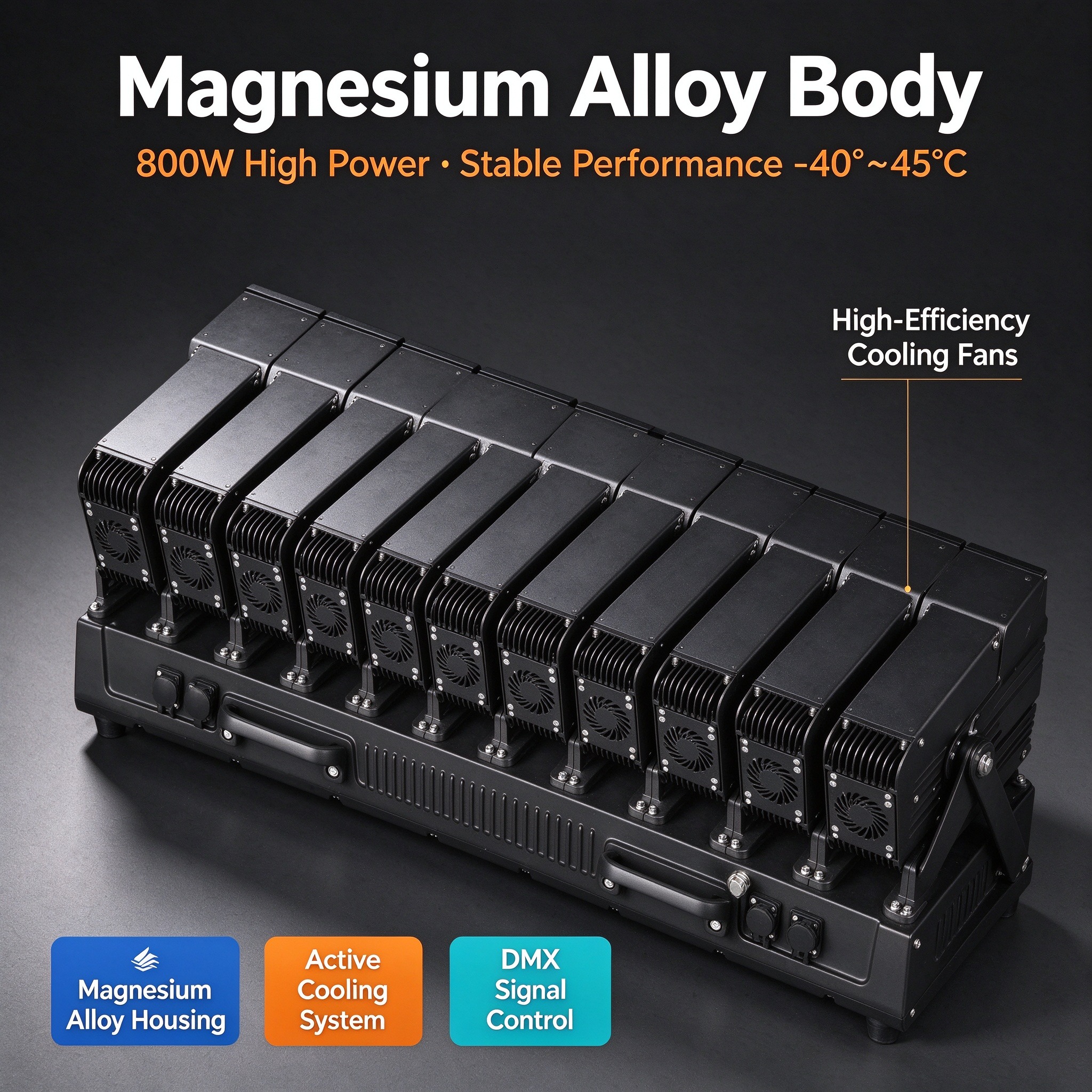

• Housing Material: Magnesium Alloy
• 방수 등급: IP65 등급
• Carton Size: 109 x 40 x 33 센티미터

Key Features:

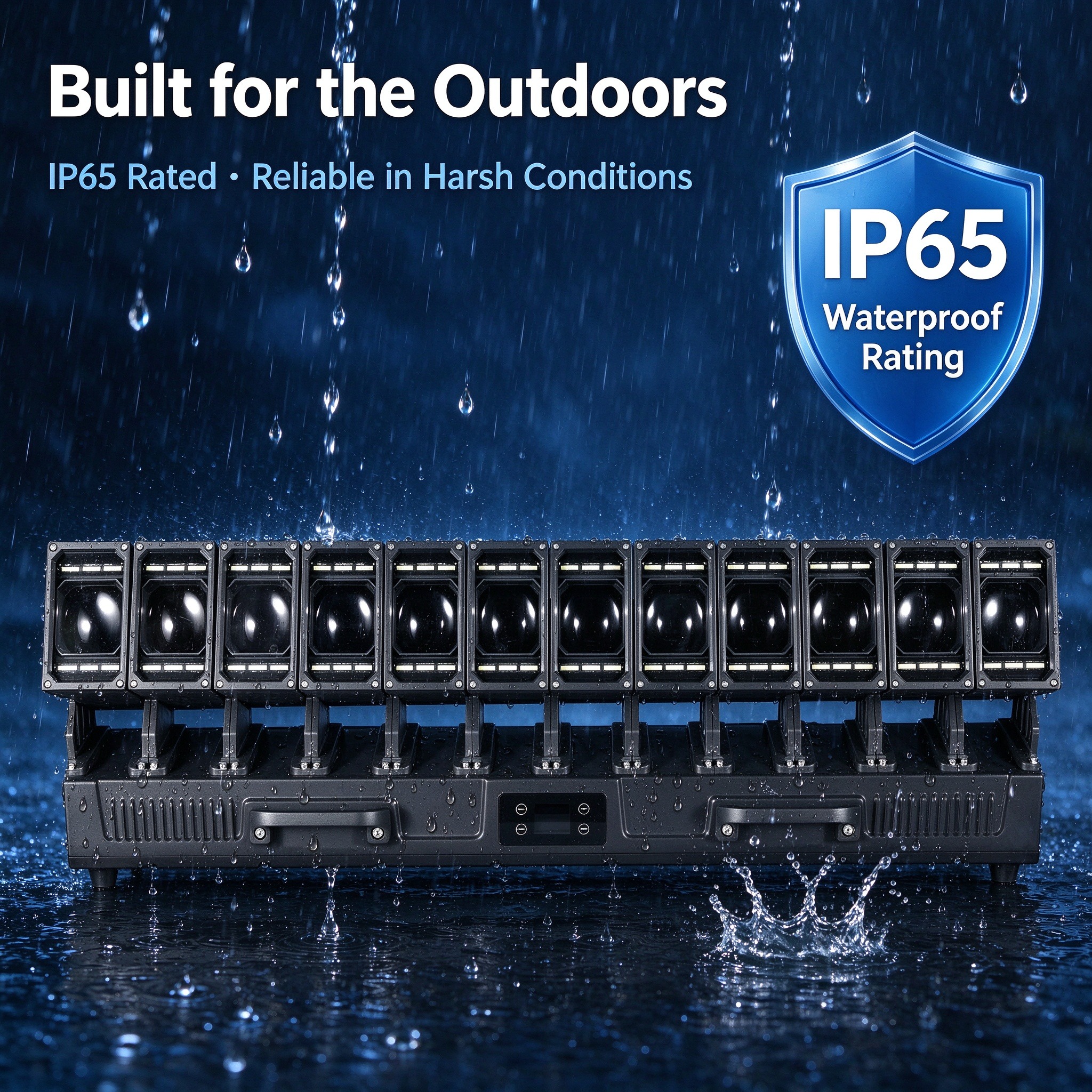

• IP65 Waterproof design for outdoor events, 콘서트, festivals and architectural lighting

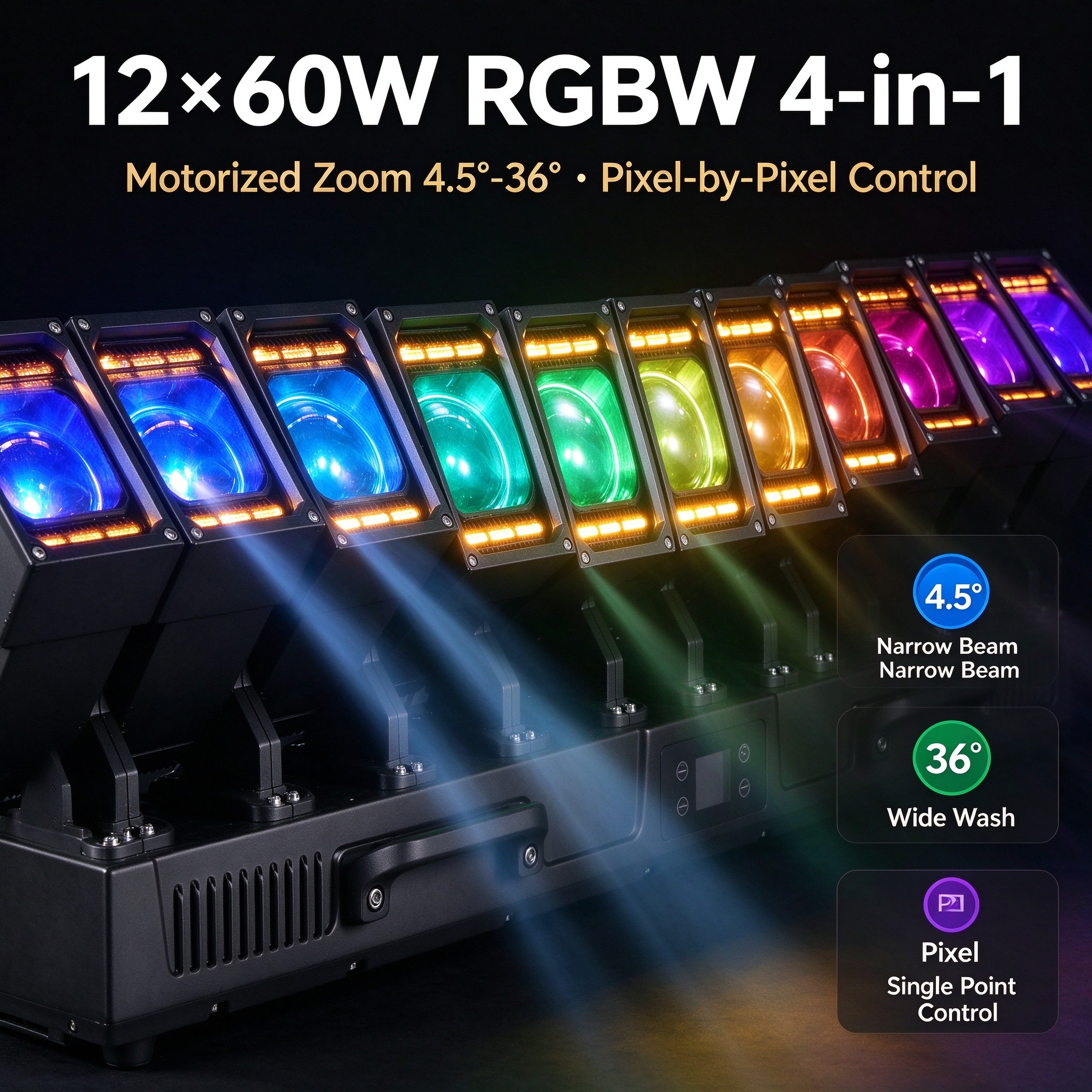

• 12 independent 60W RGBW 4-in-1 LED pixels with motorized zoom (4.5°-36°)
• 240 x 1W strobe LEDs (120x 6500K cool white + 120x 3000K warm white) for dynamic flash effects
• Single pixel point control enables “Thousand Hand Guanyin” style chasing and wave effects
• RGBW color mixing with optional CMY simulation effect
• 7 DMX channel modes for flexible control from simple to advanced pixel mapping
• Wide operating temperature range -40°C to 45°C suitable for extreme environments
• Lightweight magnesium alloy housing, only 30.5 킬로그램
• 0-100% 선형 디밍, 0-25Hz adjustable strobe speed
• Standard accessories: power cable, signal cable, user manual, hanging brackets

DMX Channel Description:

• 26채널: Basic control mode for simple dimming and color mixing
• 59채널: Standard mode with individual pixel control
• 128채널: Enhanced mode with full zoom and strobe control
• 152채널: Advanced pixel mapping mode
• 182채널: Professional mode for complex effects
• 314채널 / 329채널: Full pixel-by-pixel control mode for pixel mapping software

Applications:

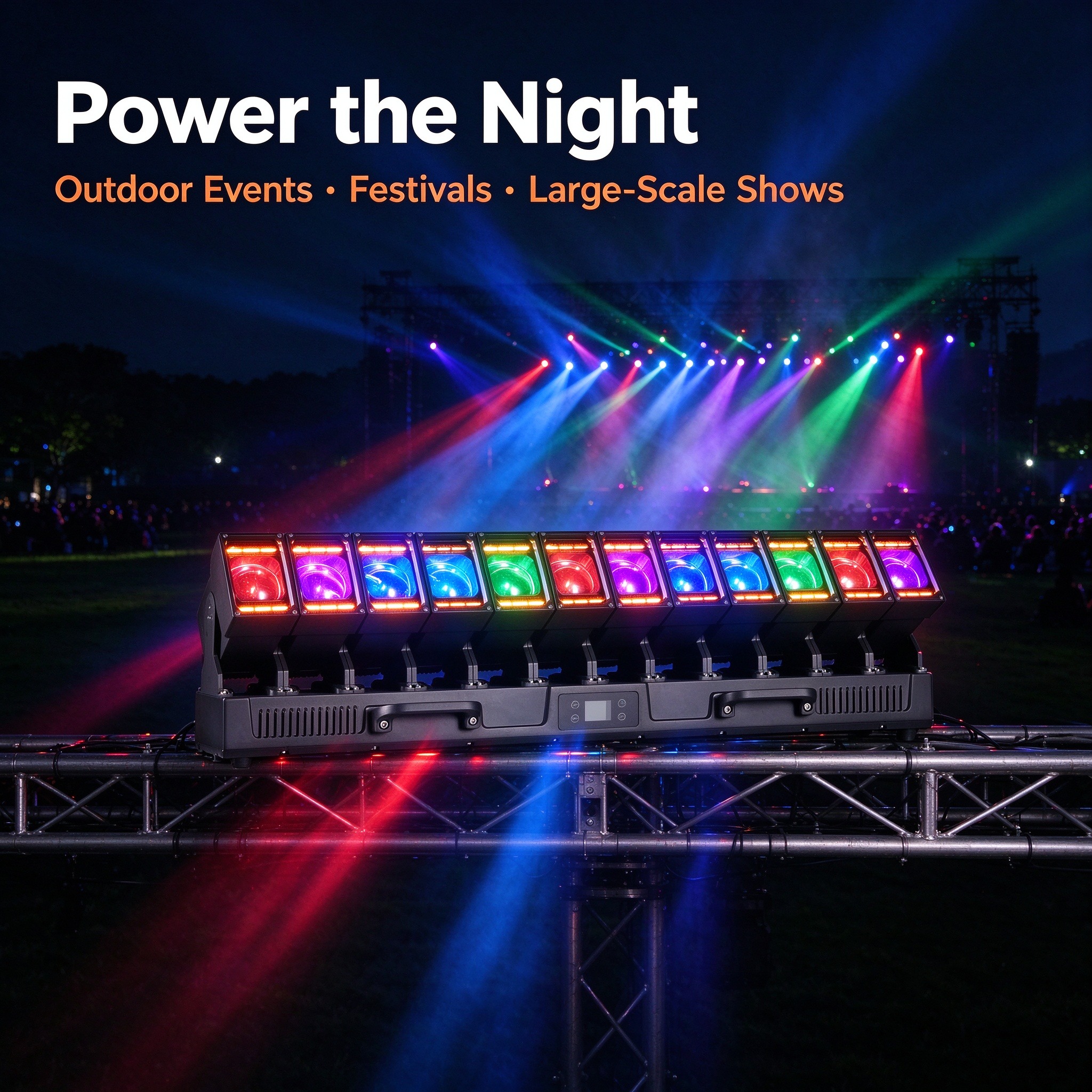

• Outdoor concerts, music festivals and live events
• Theme parks, scenic spots and architectural lighting
• TV studios, theater stages and nightclubs
• Weddings, corporate events and exhibitions
• Building facades and landscape lighting
• LED pixel mapping shows and visual performances
