Cat Eye Pixel Wall Washer Light DC24V SM16703 RGB LED Bar A/B Model
* Garantie: Dedans 2 année.[ Réparation gratuite, fournir des accessoires,si nécessaire, retourner à l’usine,L’acheteur doit payer les frais d’expédition.]
Product Technical Parameters:
- Supply Voltage: DC 24V
- Driver IC: SM16703
- Channel Order: GRB
- Grey Scale: 256 levels
- Model A: 19.2W, 18 Pixels, 270 x 100 x 100 mm, 0.55 Kg
- Model B: 16.3W, 12 Pixels, 180 x 75 x 85 mm, 0.36 Kg
- Signal Protocol: SPI / TTL
- Control Modes: DMX512, maître-esclave, auto, music
- Logement: Die-cast aluminium + acrylic
- Indice IP: IP33 (splash resistant)
- Daisy-chain signal in / dehors; one controller drives up to 8 output ports
Caractéristiques clés:

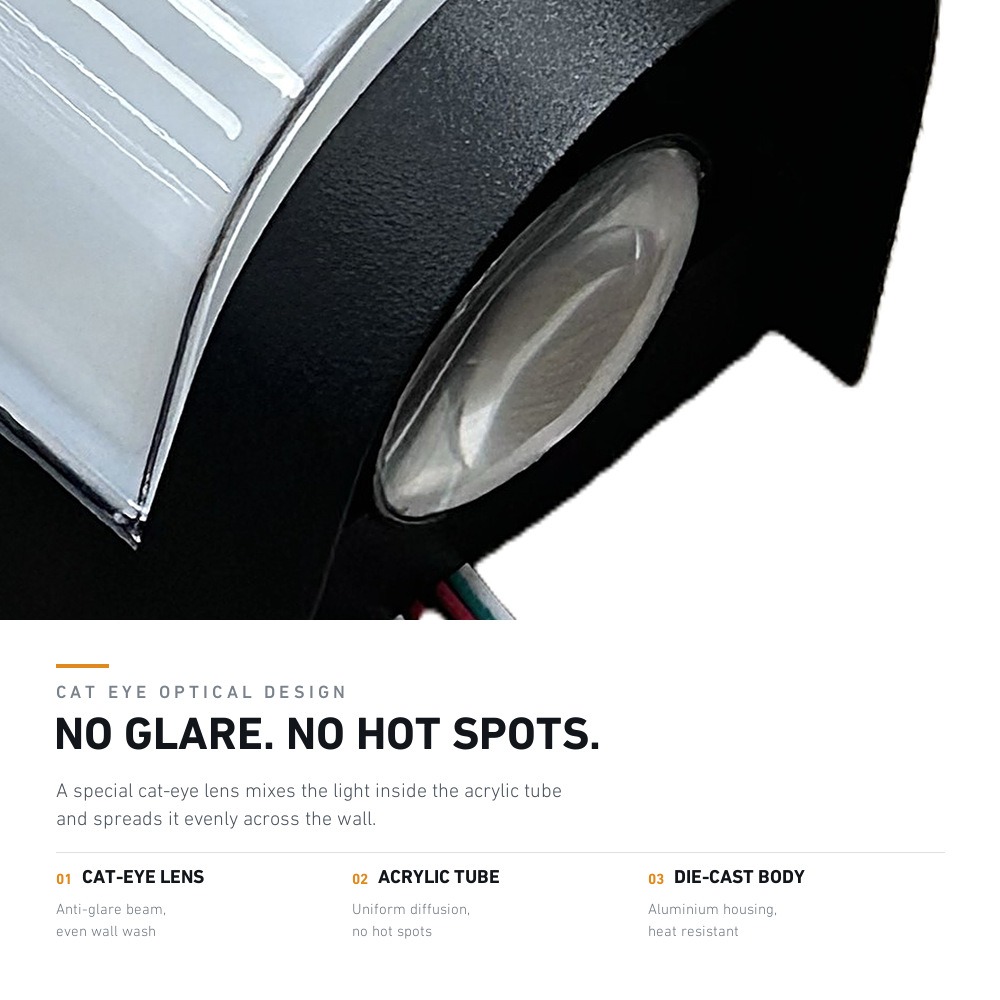

- Cat-eye shaped lens barrel produces a smooth wash with a glowing ring around each pixel.
- 18 Pixels (Un) ou 12 Pixels (B) addressable RGB dots for chase, wave and fade effects.
- Die-cast aluminium housing with clear acrylic tube for even light distribution.
- DMX512, maître-esclave, auto and music control modes.
- Daisy-chain signal in / dehors; 8-port SPI/TTL controller drives a whole wall.

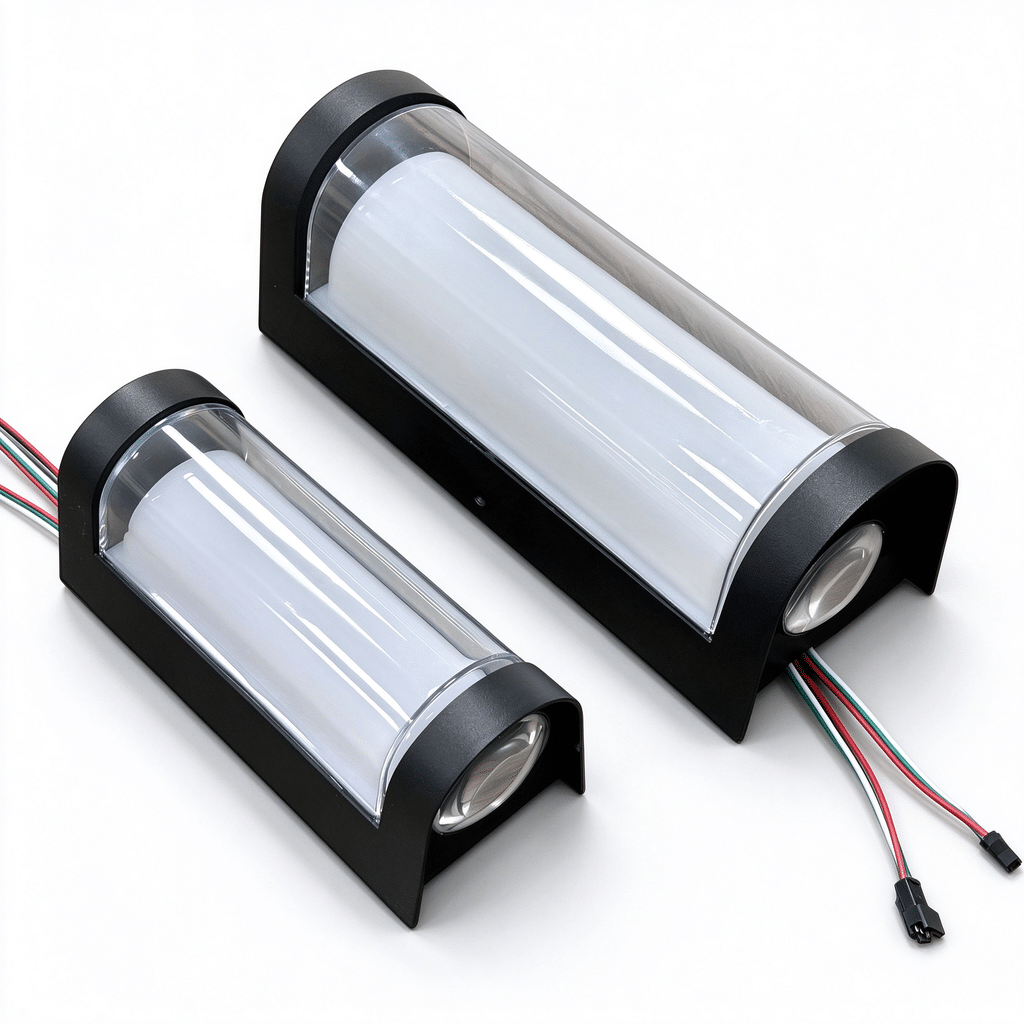

- Two compact sizes to fit small bars, KTV rooms and decorative feature walls.
DMX Channel Description:
- Pixel control via external SPI/TTL controller, SM16703 protocol, GRB order, 256 grey levels.
- DMX512 console or software drives the 8-port controller; fixtures link signal-in / signal-out.
- Maître-esclave, auto and music modes run standalone without a console.
Applications:

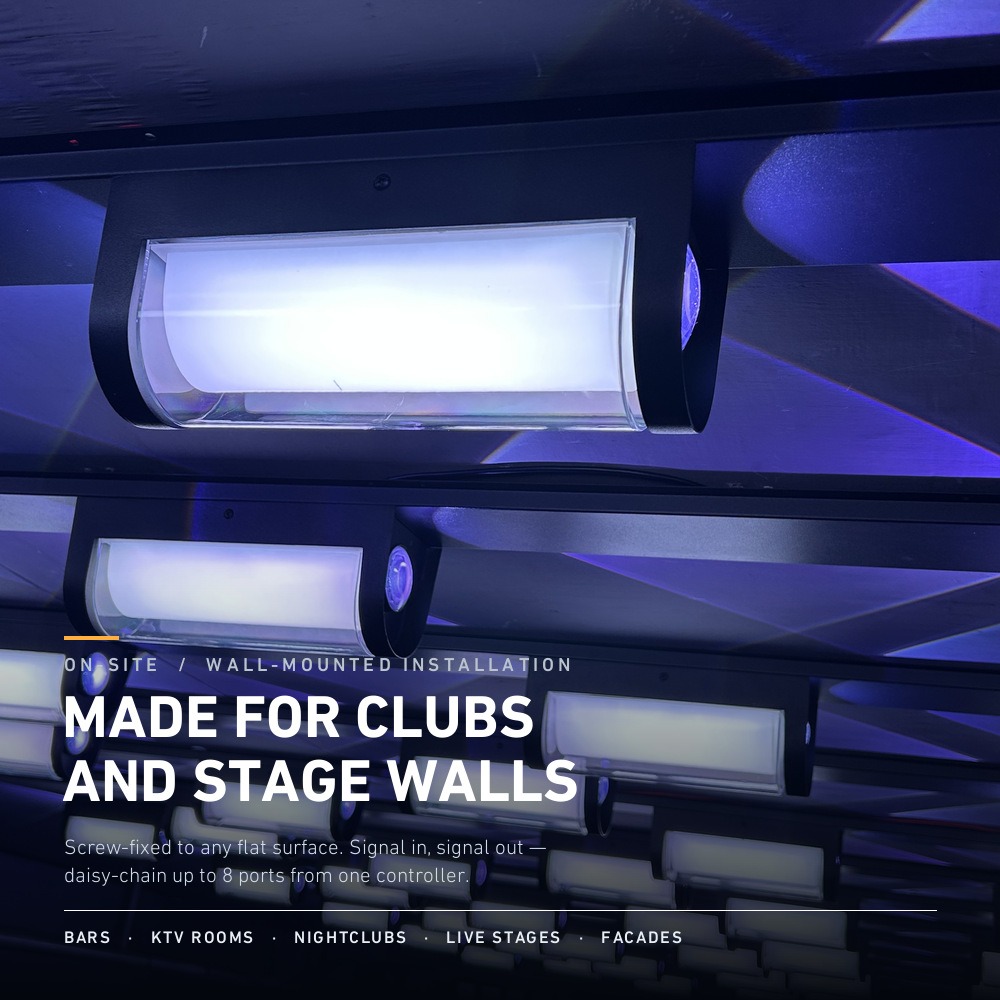

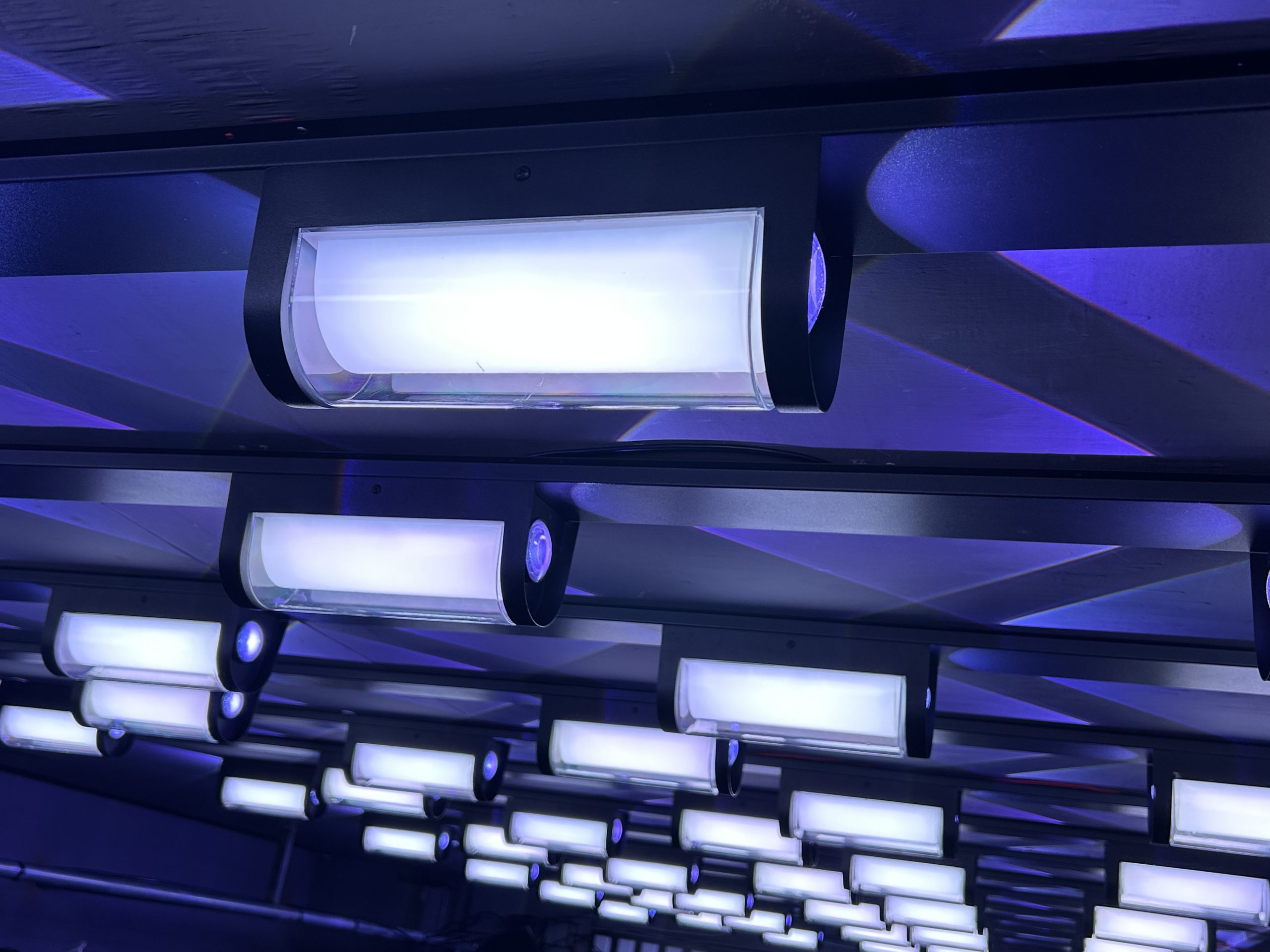

- Bars, lounges and KTV rooms
- Concert and live stages
- Commercial decorative walls
- Rental and event production
