Éclairage Hosen

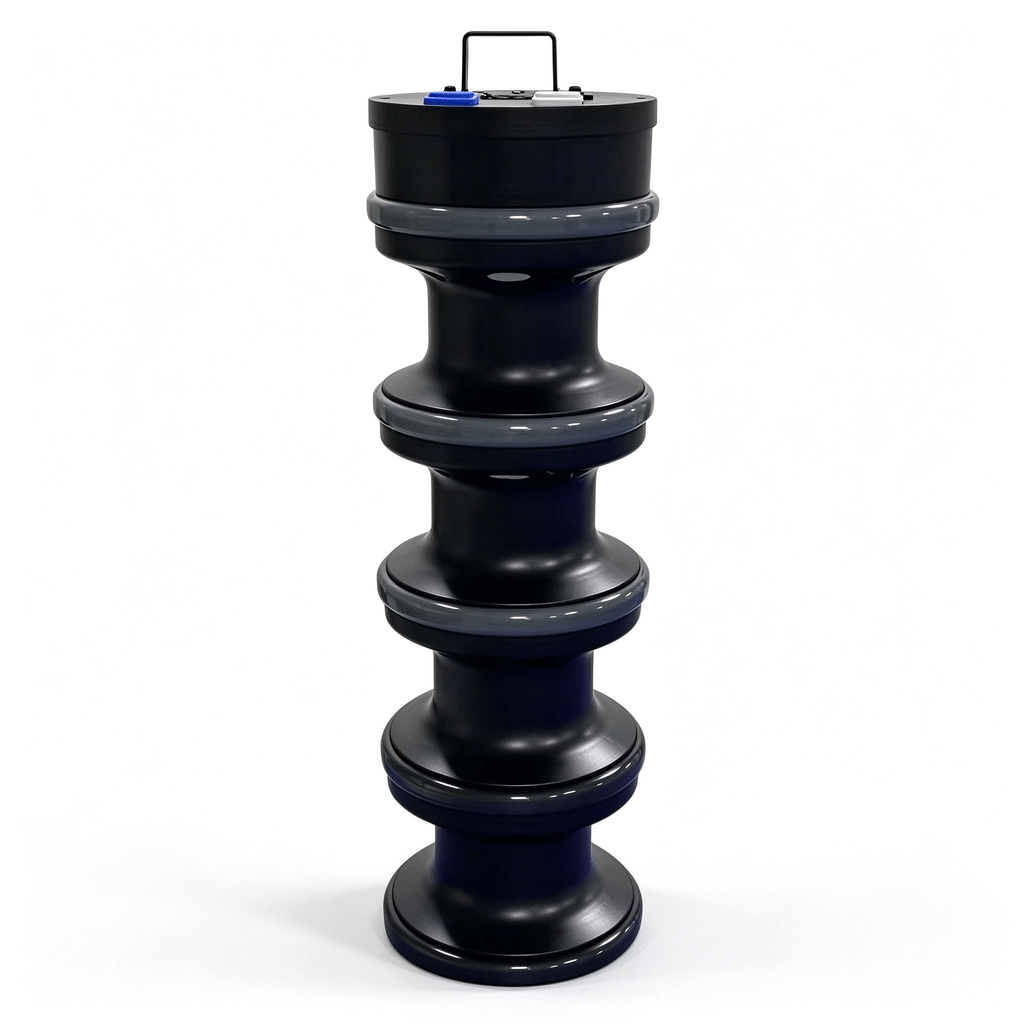

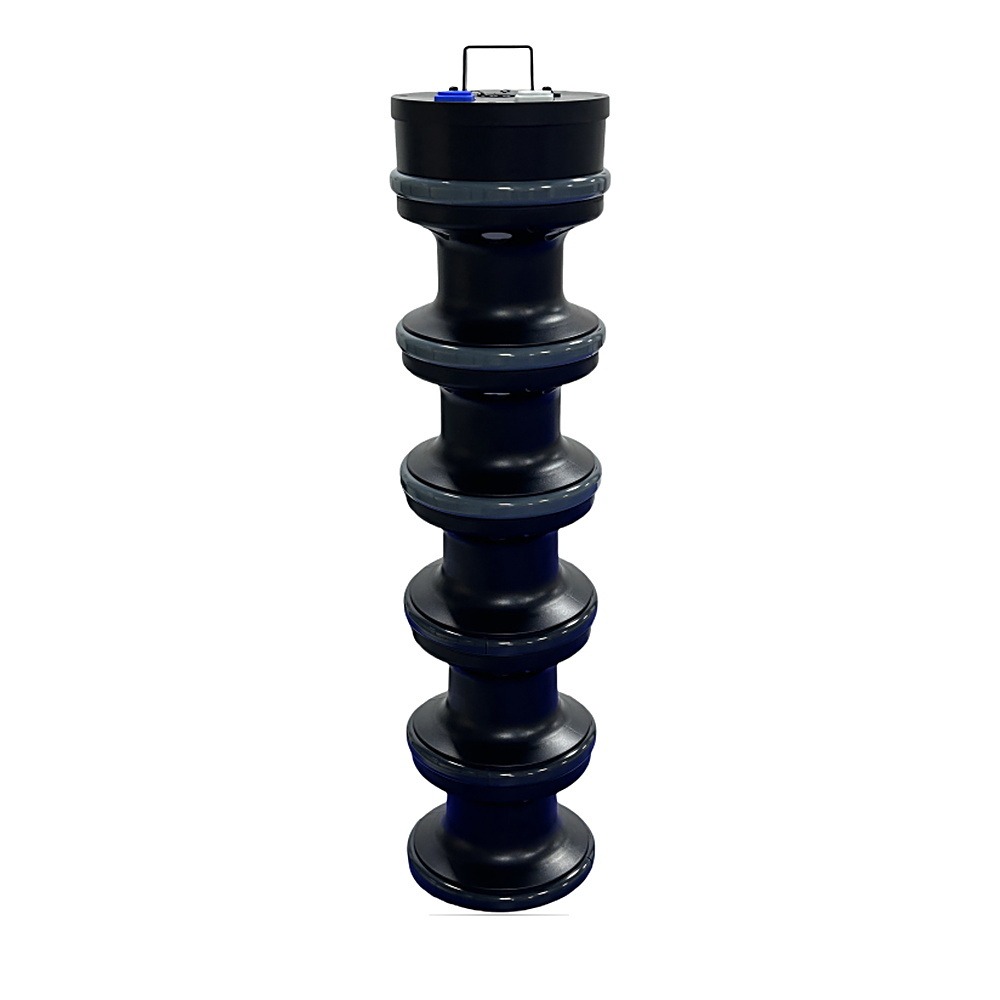

SDIP 3D Matrix Bamboo Light WS2812 RGB Pixel Column
* Garantie: Dedans 2 année.[ Réparation gratuite, fournir des accessoires,si nécessaire, retourner à l’usine,L’acheteur doit payer les frais d’expédition.]
Product Technical Parameters:
- LED Chip: WS2812 RGB addressable pixels
- Channel Order: GRB
- Grey Scale: 256 levels
- Supply Voltage: AC 220V (built-in power)
- Control Protocols: DMX512, Art-Net, MADRIX, DVI (Anglais seulement), SPI
- Control Architecture: Maître + sub controller
- Signal Connection: RJ45 in / dehors, daisy-chain power
- Power Chain: 220V up to 10 units per 2.5mm2 line; 110V up to 5 units
- Canaux DMX: 8
- Built-in Programs: 64
- Logement: Métal + ABS + PC
- Mounting: Hanging with hook clamp
- Indice IP: IP33
Caractéristiques clés:

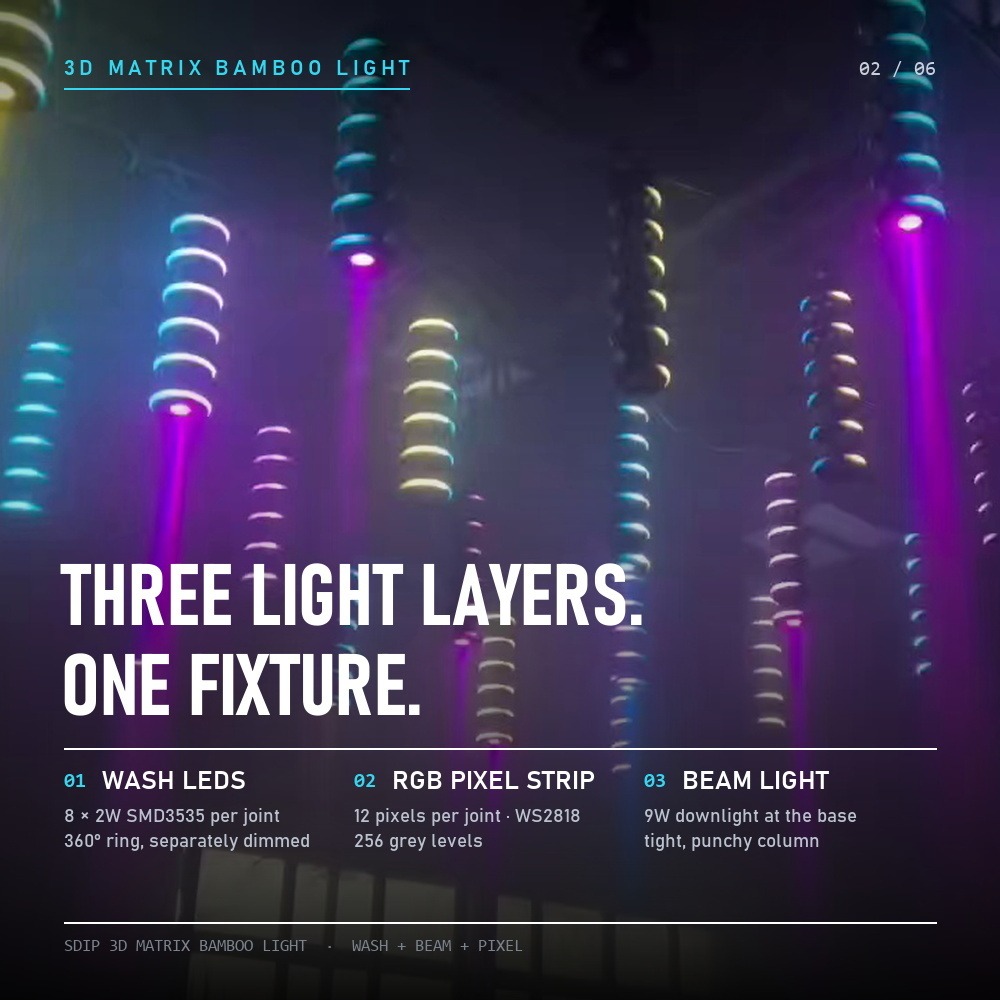

- Bamboo-joint shaped pixel column creates a segmented 3D point-matrix look.

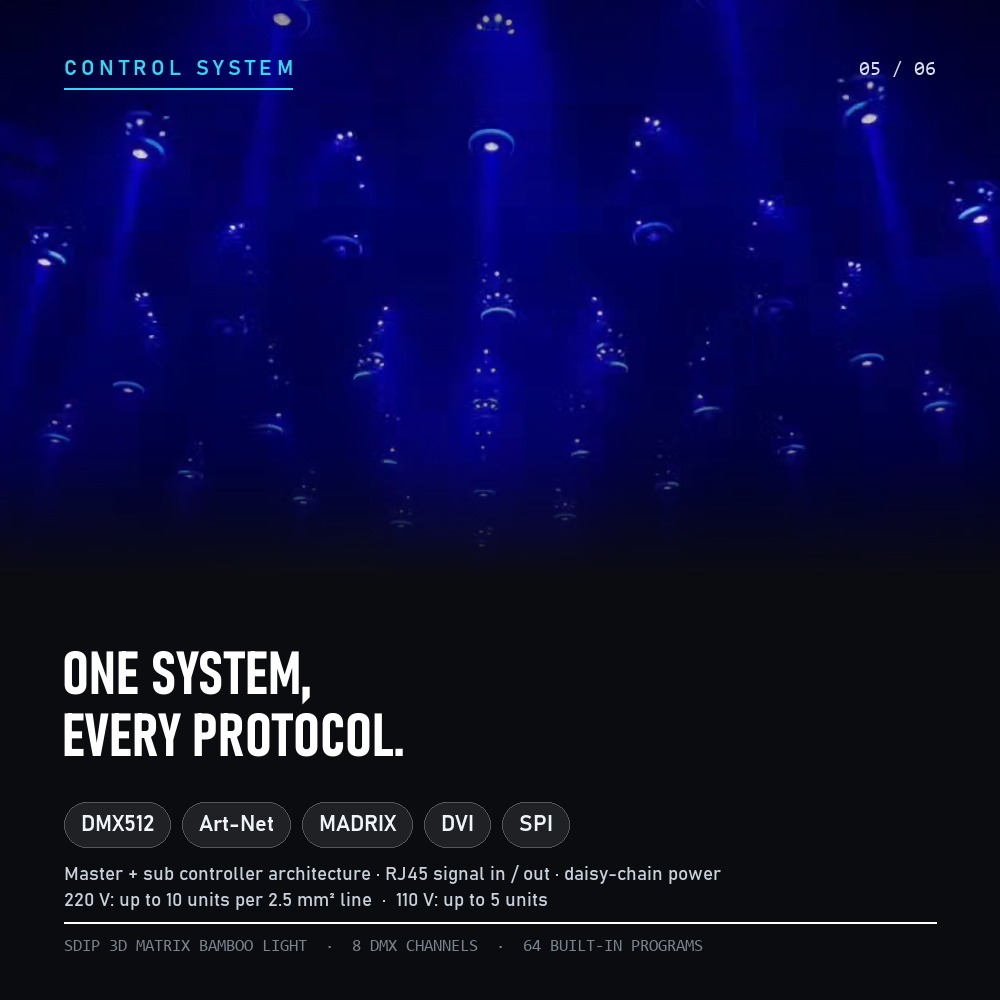

- One system supports every protocol: DMX512, Art-Net, MADRIX, DVI and SPI.
- Maître + sub controller architecture with RJ45 signal in / dehors.
- Daisy-chain power: jusqu’à 10 units on 220V, 5 units on 110V per line.
- 8 DMX channels and 64 built-in programs for standalone shows.

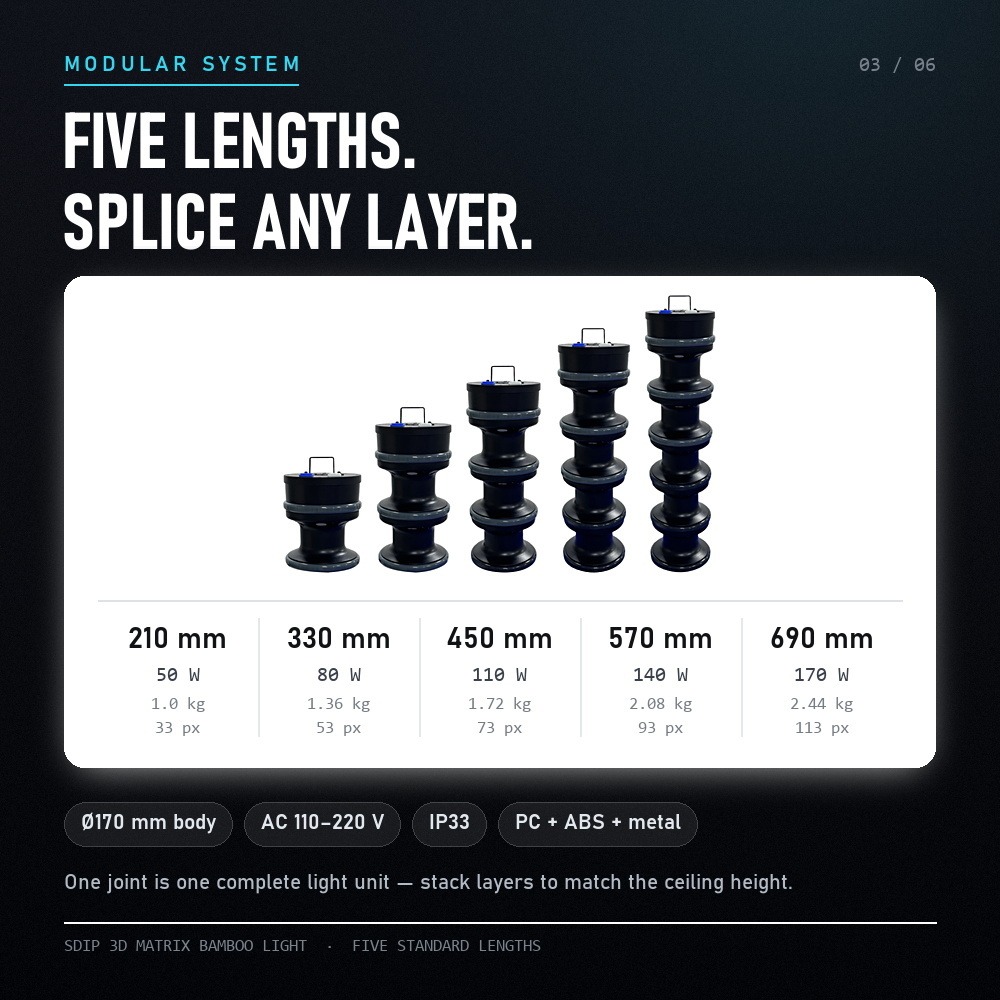

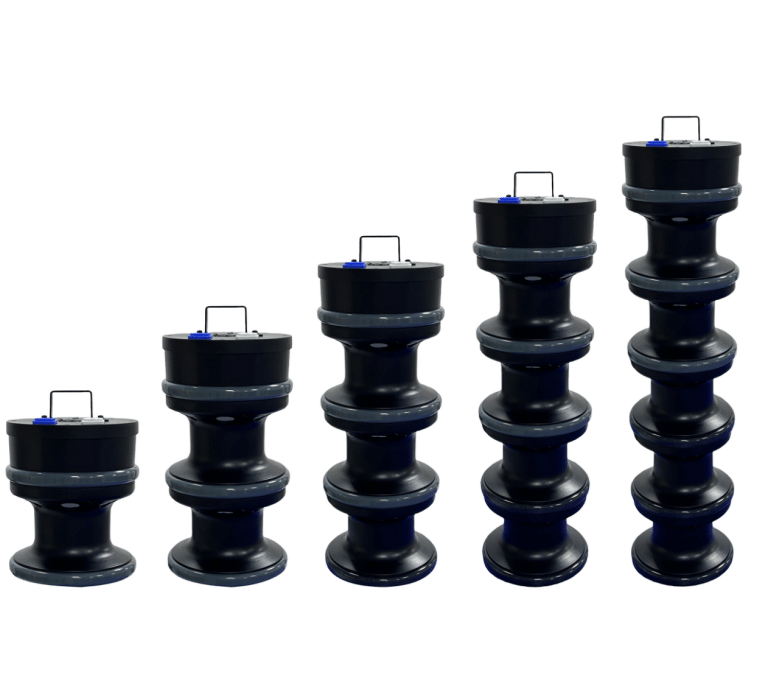

- Available in five lengths to build custom hanging arrays.
DMX Channel Description:
- 8 DMX channels per fixture; 64 built-in programs for auto / music / master-slave modes.
- Maître + sub controller drives daisy-chained units via RJ45.
- Full pixel mapping via Art-Net / MADRIX / DVI for real-time 3D effects.
Applications:
- Bars, lounges and dance clubs
- Live stages and performances
- Rental and event production
- KTV rooms
- Cinétique / hanging pixel arrays and feature ceilings
