20W Mini LED Profile Light DMX Remote HS-LPL20M

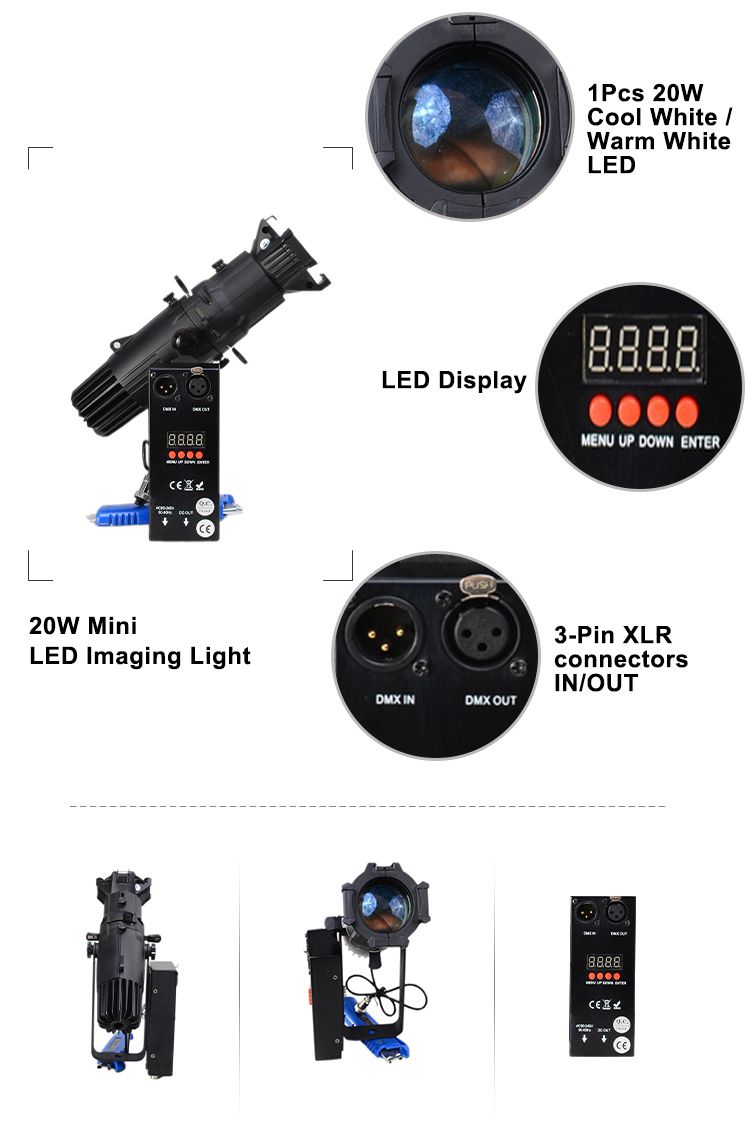

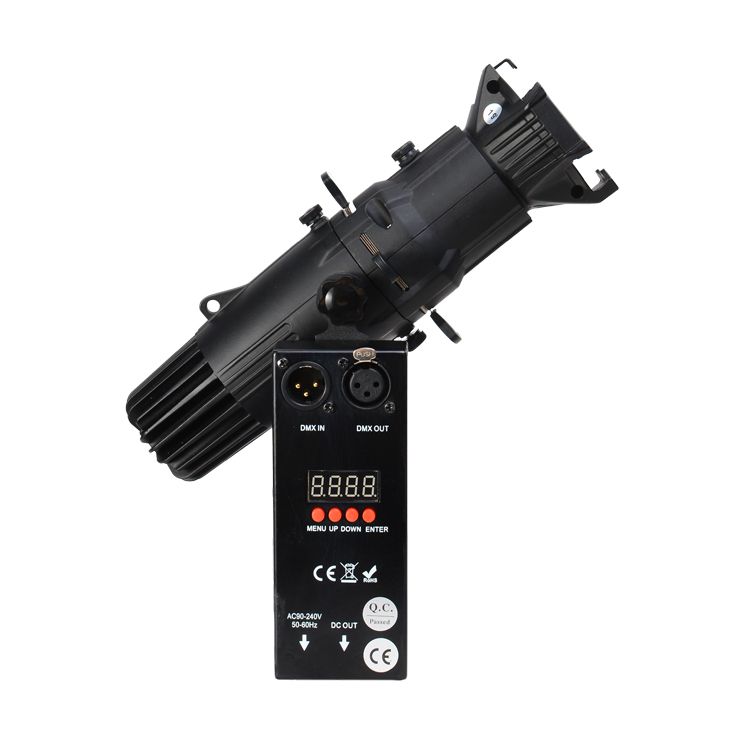

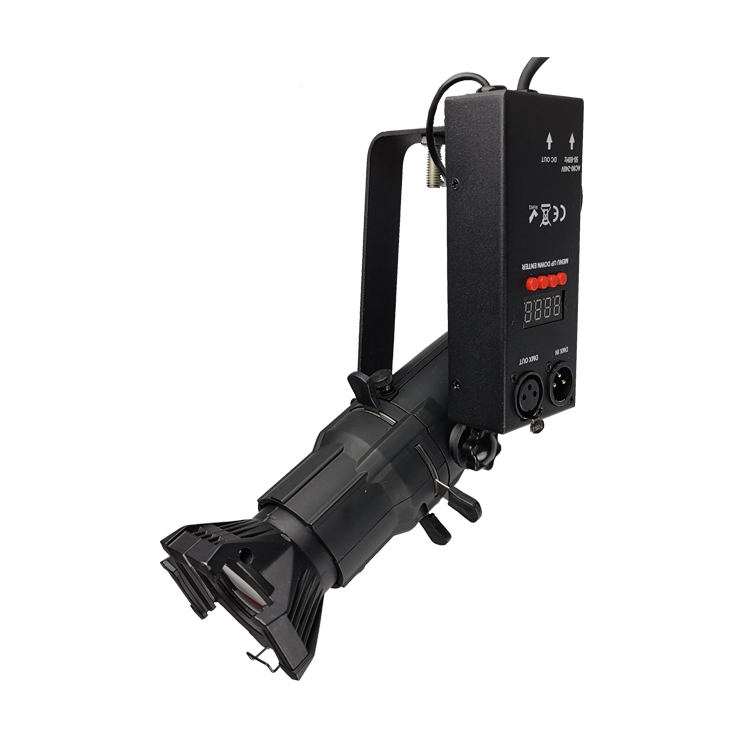

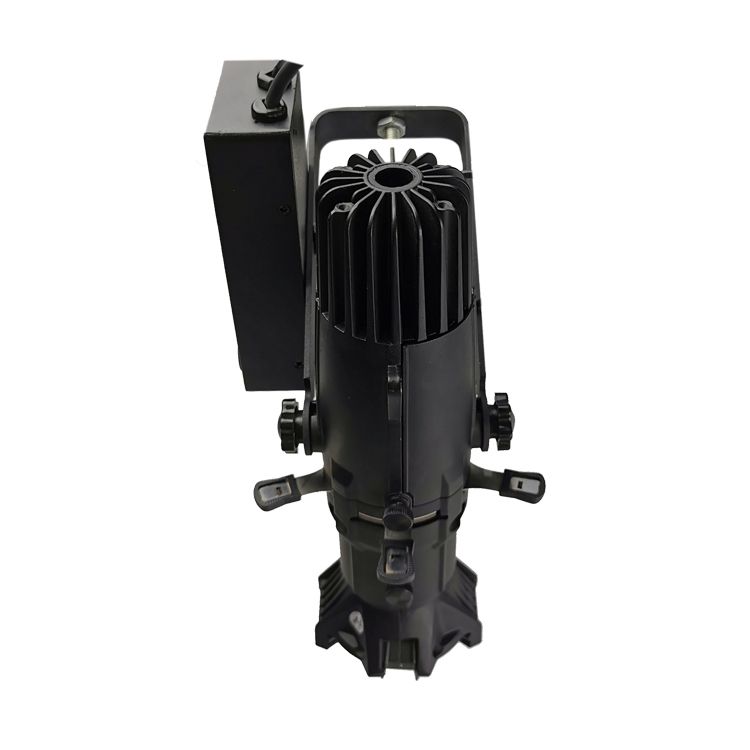

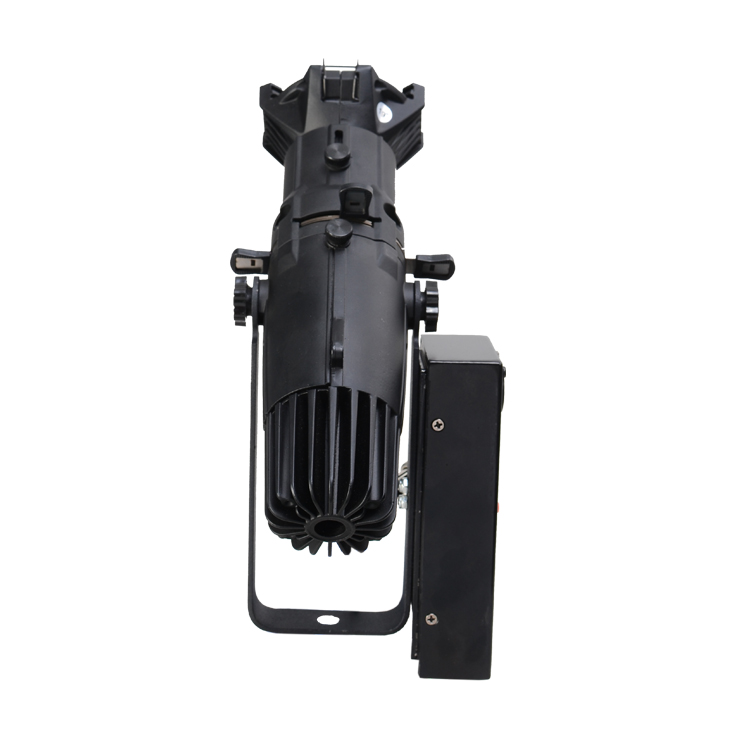

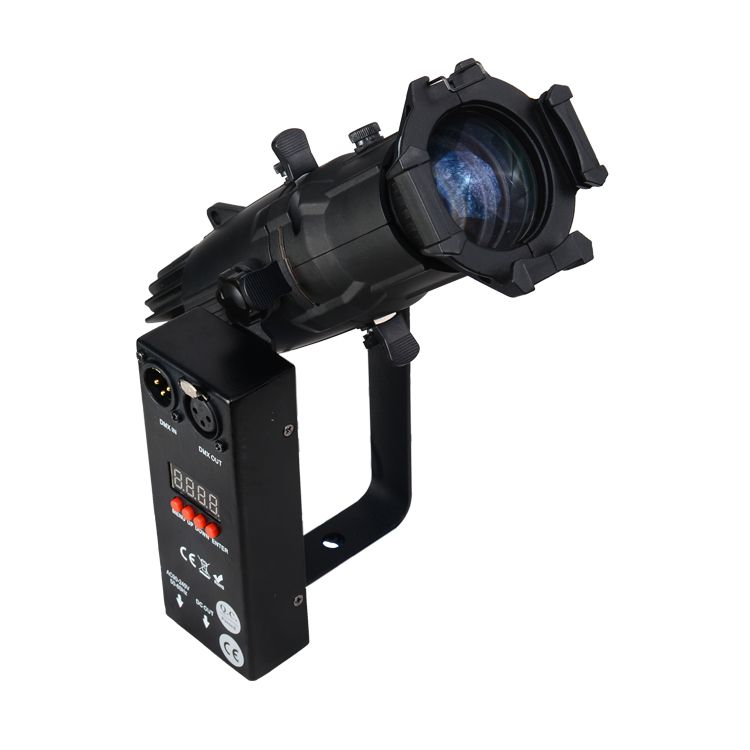

PROFILE 20 is a mini profile light, small size, light weight, the shell have black or white color. This fixture use a imported 20W LED bulb with high purity aspherical glass lens to make the light spot uniform, high brightness. PROFILE 20 light uses four shading blades to easily cut out a variety of different shapes. It is designed for use in advertising, museums, restaurants, churches, educational theaters.
| Model No. | Power | Light Source |
Emitting Color |
Beam Angle | Optional Beam Angle | DMX Channels |
Remote |
| HS-3343A20W 19DWW |
26 | 1*20W | 3200K | 19° | 26°/36°/50° | 1/3CH | X |
| HS-3343A20W 19DCW |
26 | 1*20W | 5600K | 19° | 26°/36°/50° | 1/3CH | X |
| HS-3343A20W 19D2IN1 |
26 | 1*20W | 2IN1 | 19° | 26°/36°/50° | 2/5CH | X |
| HS-3343B20W 19DWW |
26 | 1*20W | 3200K | 19° | 26°/36°/50° | ü | |
| HS-3343B20W 19DCW |
26 | 1*20W | 5600K | 19° | 26°/36°/50° | ü | |
| HS-3343B20W 19D2IN1 |
26 | 1*20W | 2IN1 | 19° | 26°/36°/50° | ü |
Optical System
- Light source:1x20W LED ( Japan Nichia brand)
- LED life expectancy: 50,000 – 80,000 hours
- Lens angle: 19° (26°/36°/50°optional)
- Color Rendering Index(CRI): Ra≥90
- Dynamic Effects
- Focus manually
- 0-100% smooth linear dimming system
- Shutter: 1-25 times/sec high speed strobe, speed adjustable
- With random strobe and pulse effect
- Control and Program
- DMX512, master-slave, auto programs
- Built-in pre-program
- Marco function
- Electrical Specification and Connections
- Input voltage: AC90-240 V, 50-60 Hz, auto ranging
- Data connector in/out: 3-pin XLR
- Working Environment
- Ambient temperature: -25℃ ~ +45℃ (-13℉ ~ +113℉)
- Protection grade: IP20
- Aluminum housing
- Approvals
- CE, ROHS,
- If any other certificates are required, confirm with us please
- Product and Packing Dimensions
- Product: 245*100*145mm (9.6*3.9*5.7inch)
- Box: 345*160*145mm (13.6*6.3*5.7inch)
- Net weight: 1.6kg (3.5 lbs)
- Gross weight: 2.2 kg (4.9 lbs)
- Packing List
- Profile 20
- User manual
- Power cable
- Optional Accessories
- Flight case:6/12pcs-in-1
- Clamp
- Safety rope
- DMX wire
