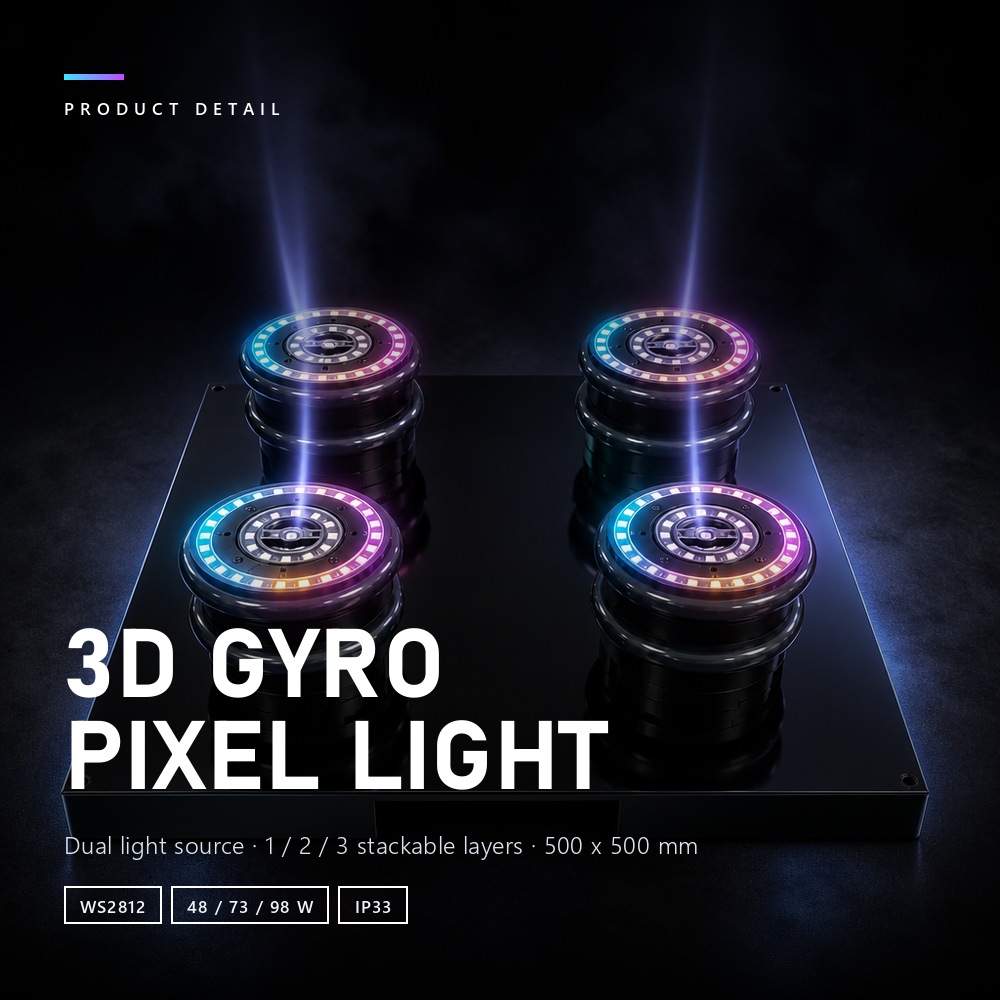

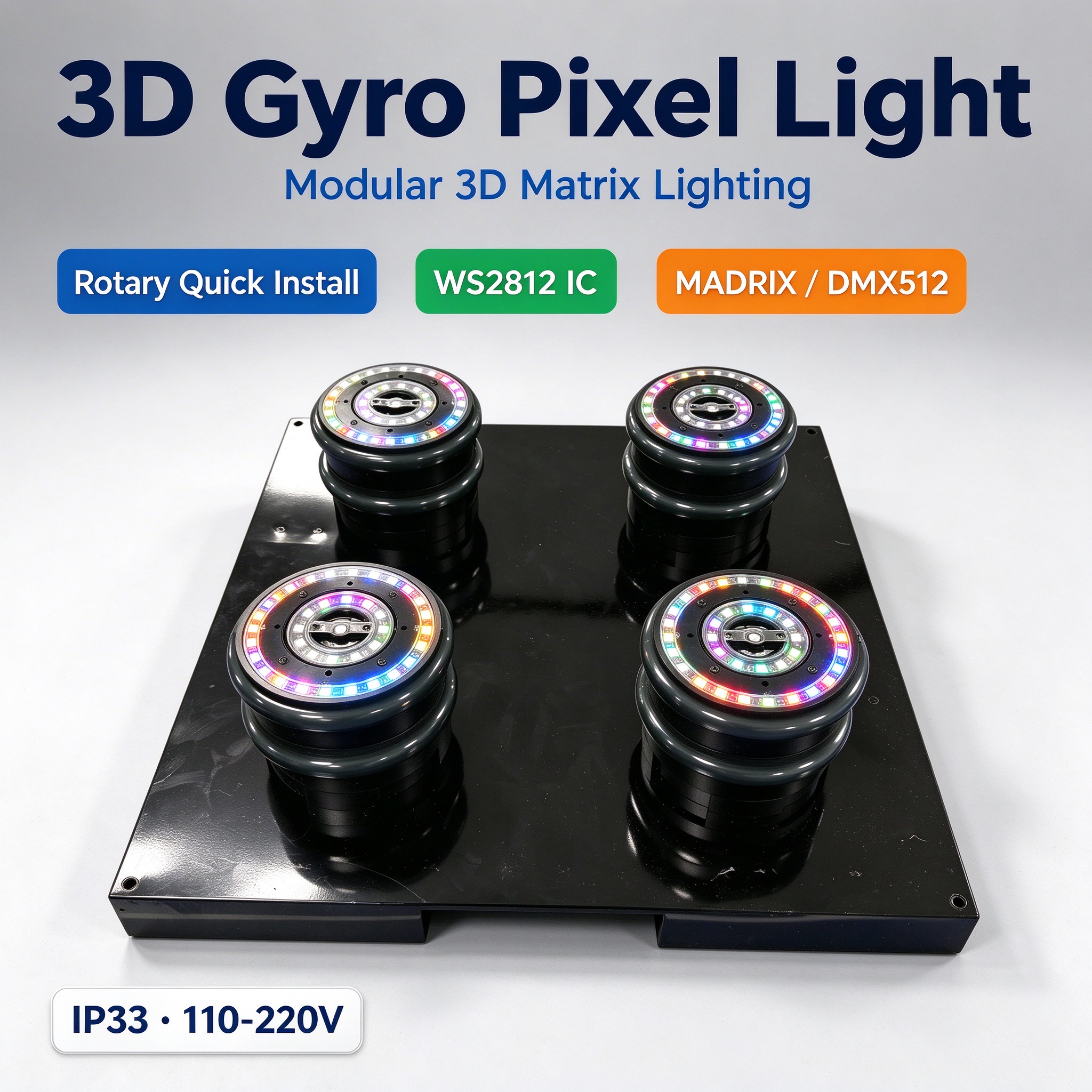

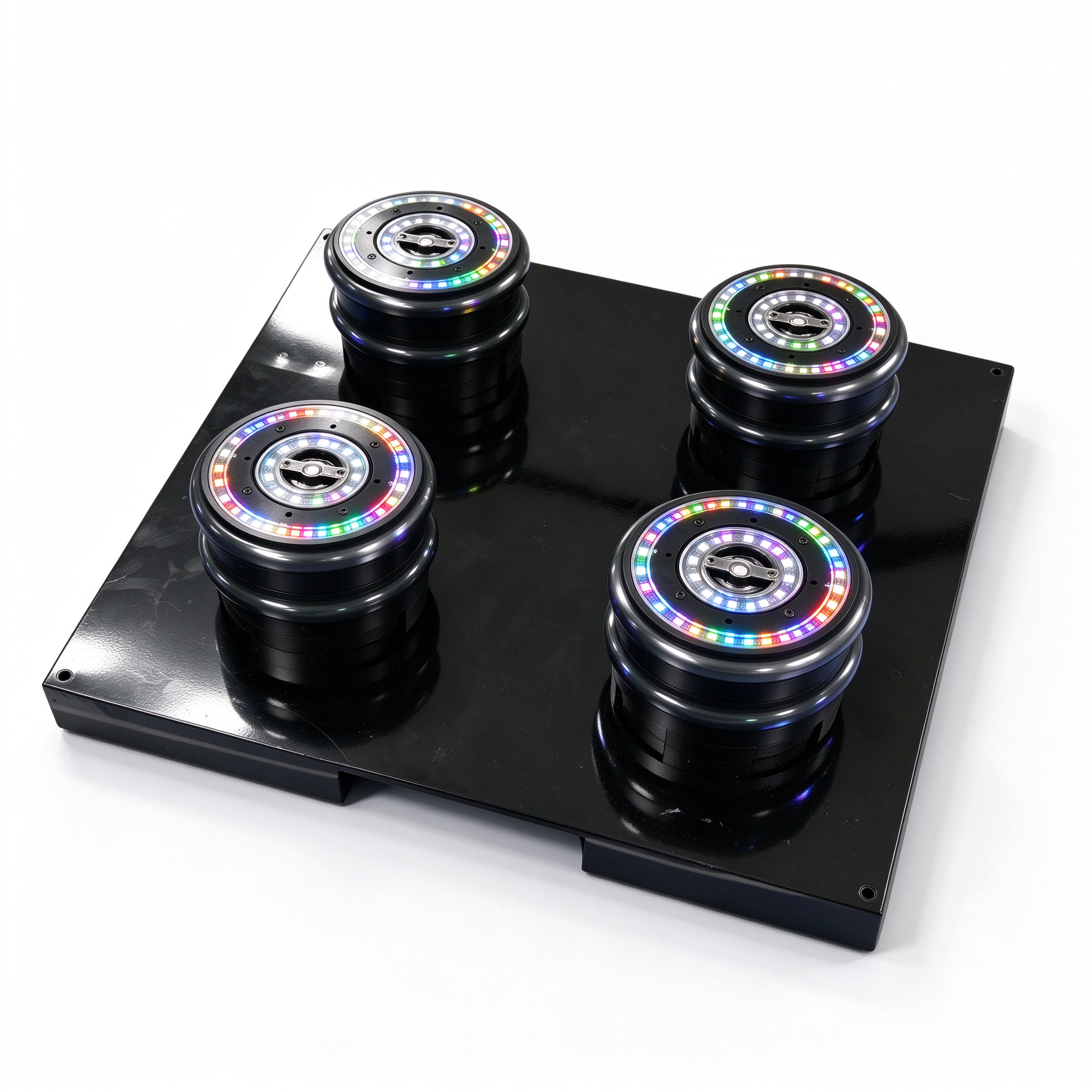

3D Gyro Pixel Light WS2812 RGB Matrix Stage Light 500x500mm Modular 1-3 Layers Beam Pixel Dual Source
* Warranty: Within 2 year.[ free to repair, provide any accessories,if need return back to factory,Buyer need pay for the shipping cost.

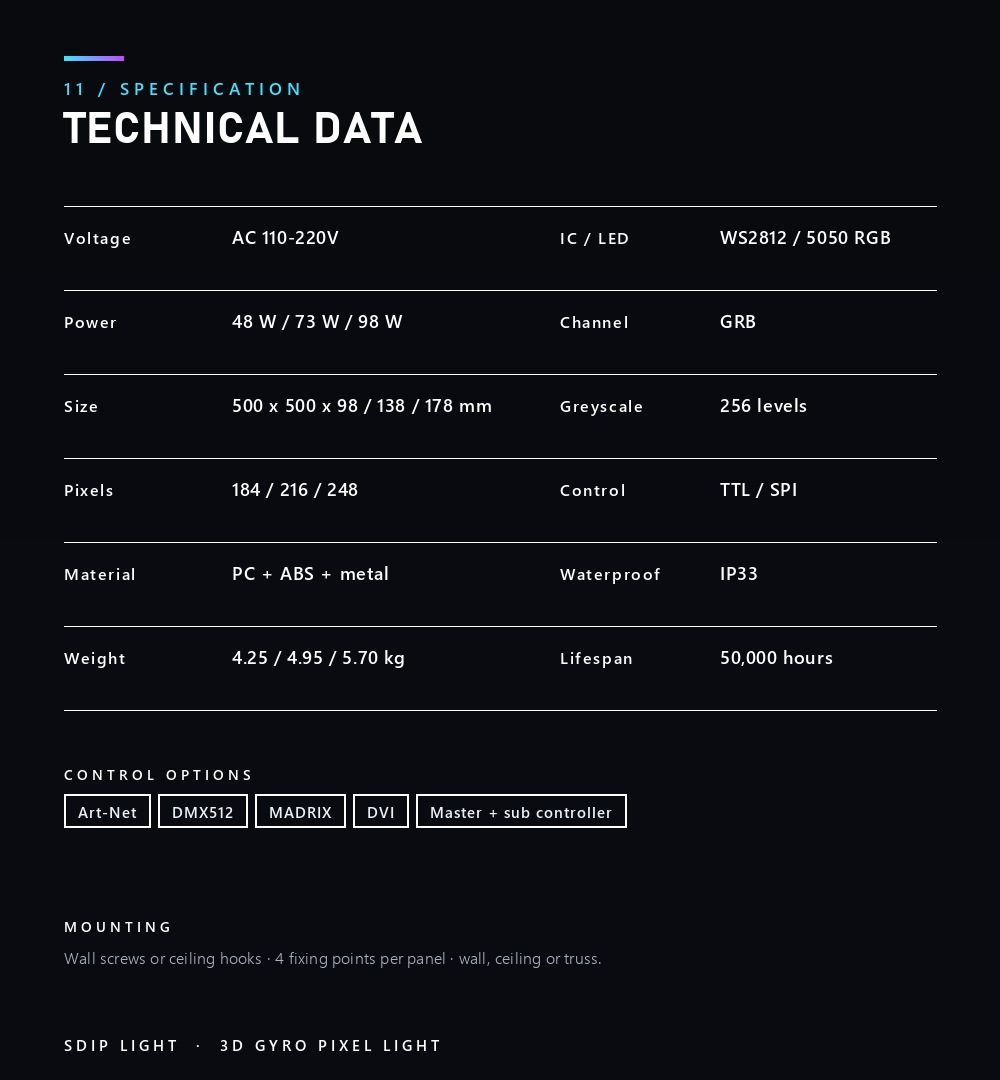

Product Technical Parameters:
Model: SDIP-220V-249D-WS2812
Type: 3D Gyro Pixel Light / LED Matrix Panel
Voltage: AC 110-220V
Power: 48W (1 layer) / 73W (2 layers) / 98W (3 layers)

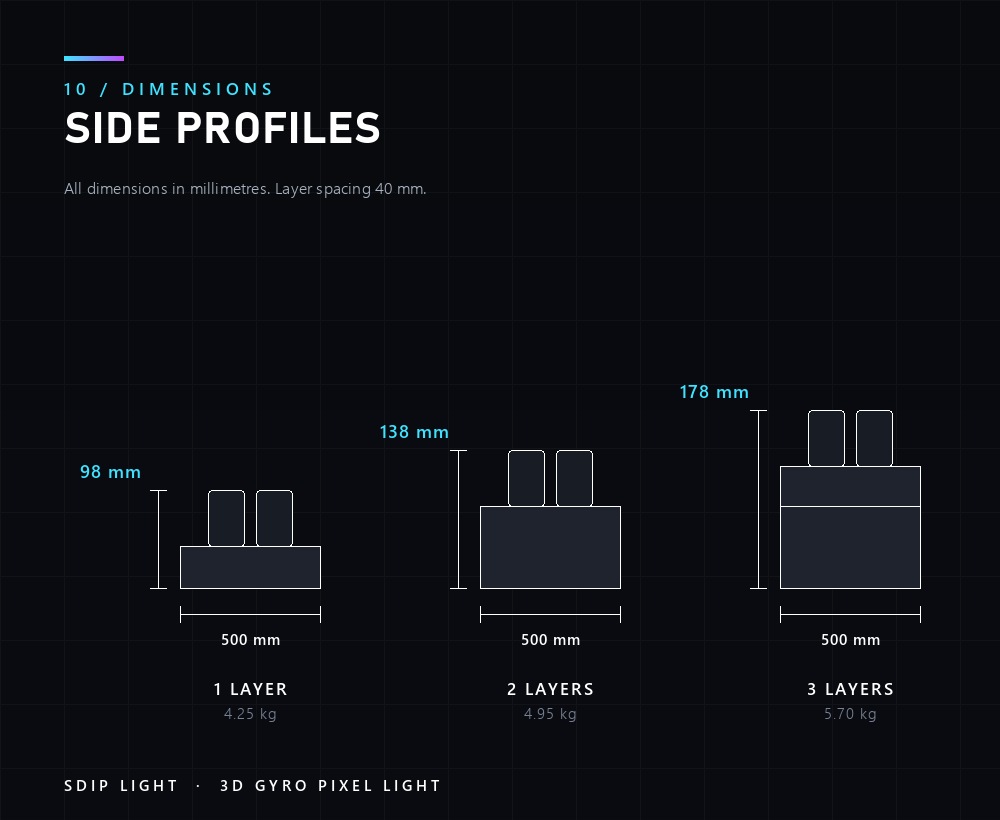

Size: 500 x 500 x 98 mm (1 layer) / 500 x 500 x 138 mm (2 layers) / 500 x 500 x 178 mm (3 layers)
LED: WS2812 5050 RGB
IC Model: WS2812
Channel: GRB
Pixels: 184 (1 layer) / 216 (2 layers) / 248 (3 layers)
Greyscale: 256 levels
Material: PC + ABS + metal
Control: TTL / SPI; Art-Net, DMX512, MADRIX, DVI
Waterproof: IP33
Weight: 4.25 kg (1 layer) / 4.95 kg (2 layers) / 5.70 kg (3 layers)
Lifespan: 50,000 hours
Installation: wall screws or ceiling hooks, 4 fixing points per panel
Key Features:

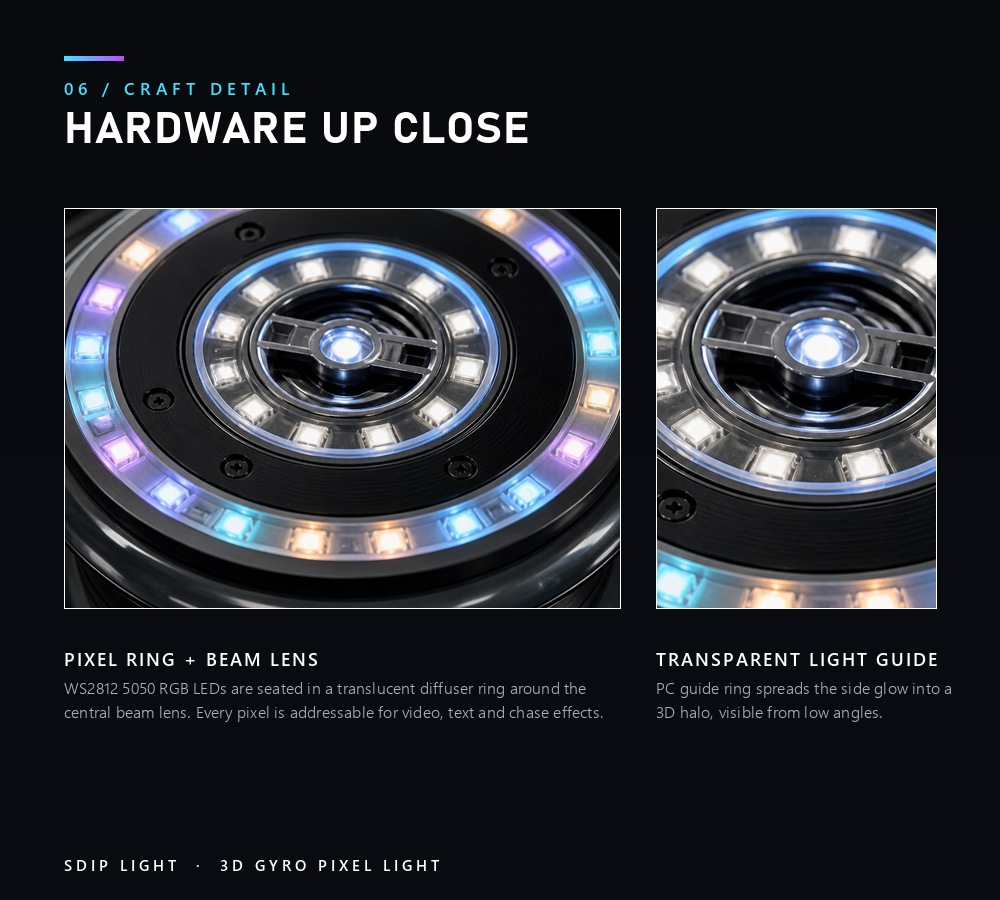

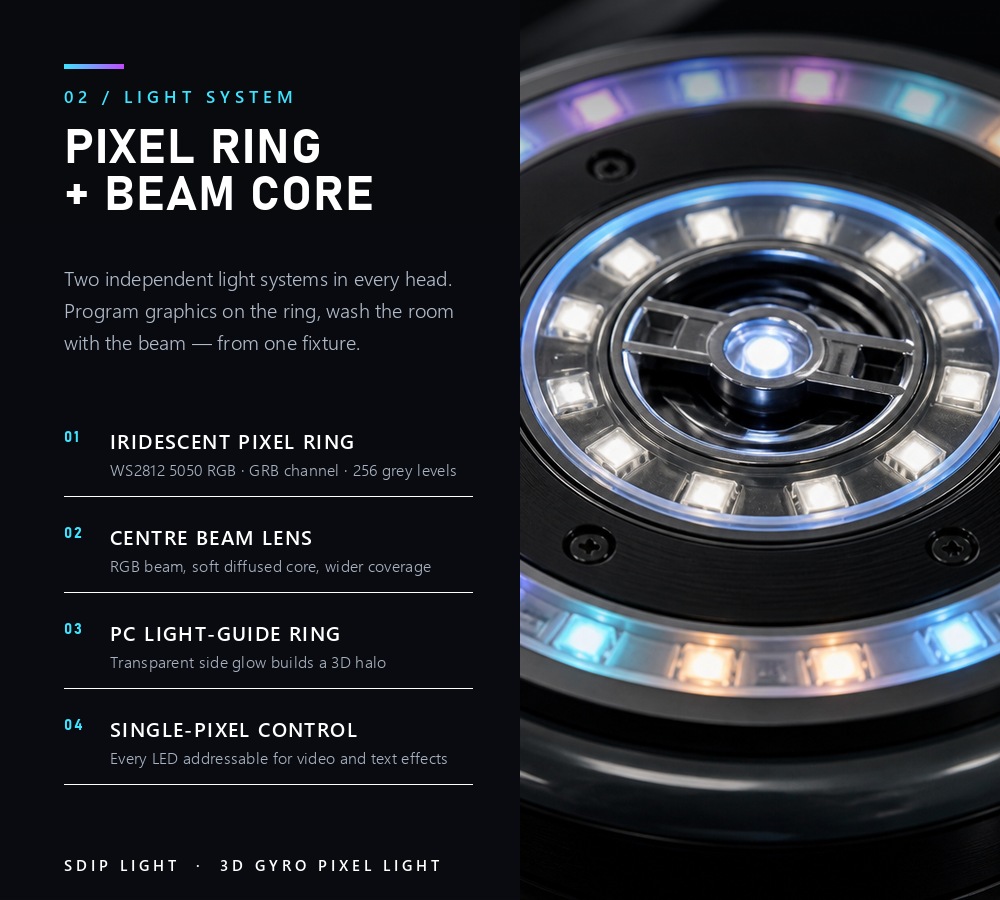

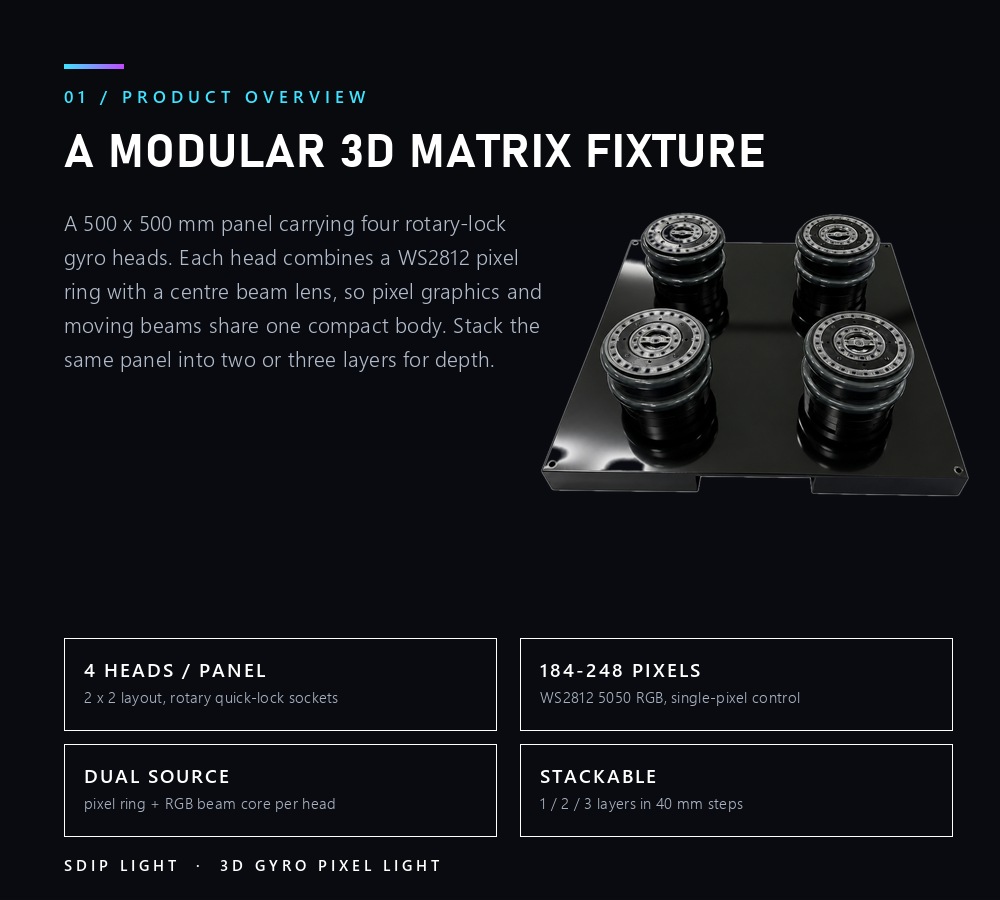

1. DUAL LIGHT SOURCE – Each gyro head pairs an addressable WS2812 pixel ring with a central RGB beam lens, so pixel graphics and beam effects run from one fixture.

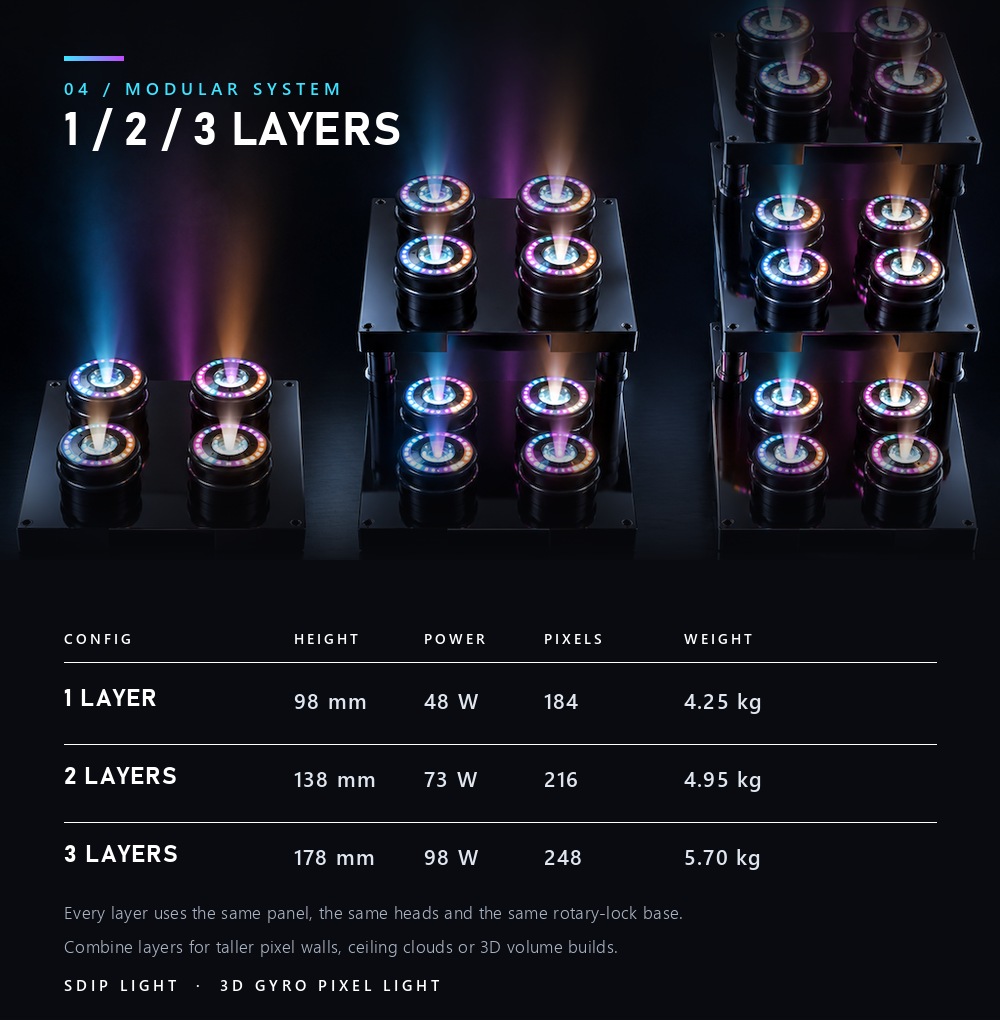

2. MODULAR 1/2/3 LAYERS – The same 500 x 500 mm panel stacks into two or three layers in 40 mm steps, building taller 3D pixel walls without changing the fixture.

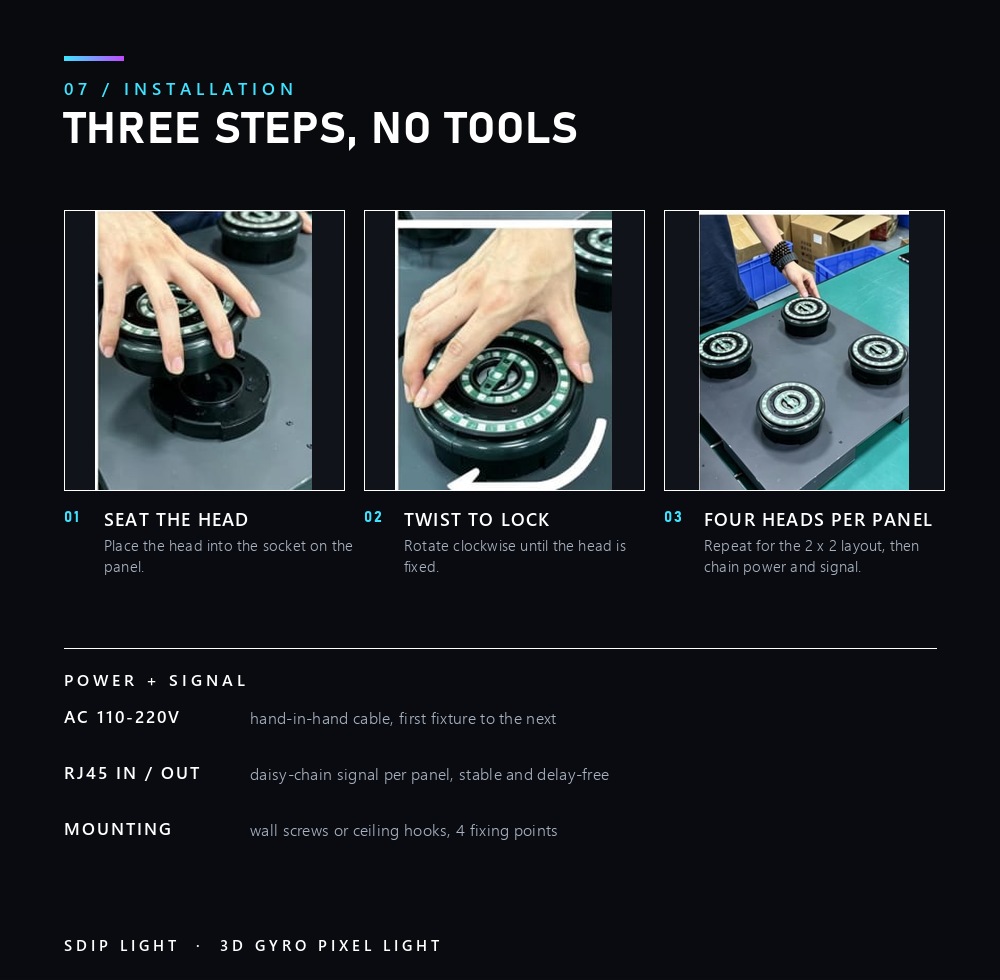

3. TOOL-FREE ROTARY LOCK – Heads seat into the socket and lock with a twist; four heads per panel, fast to install and service on site.

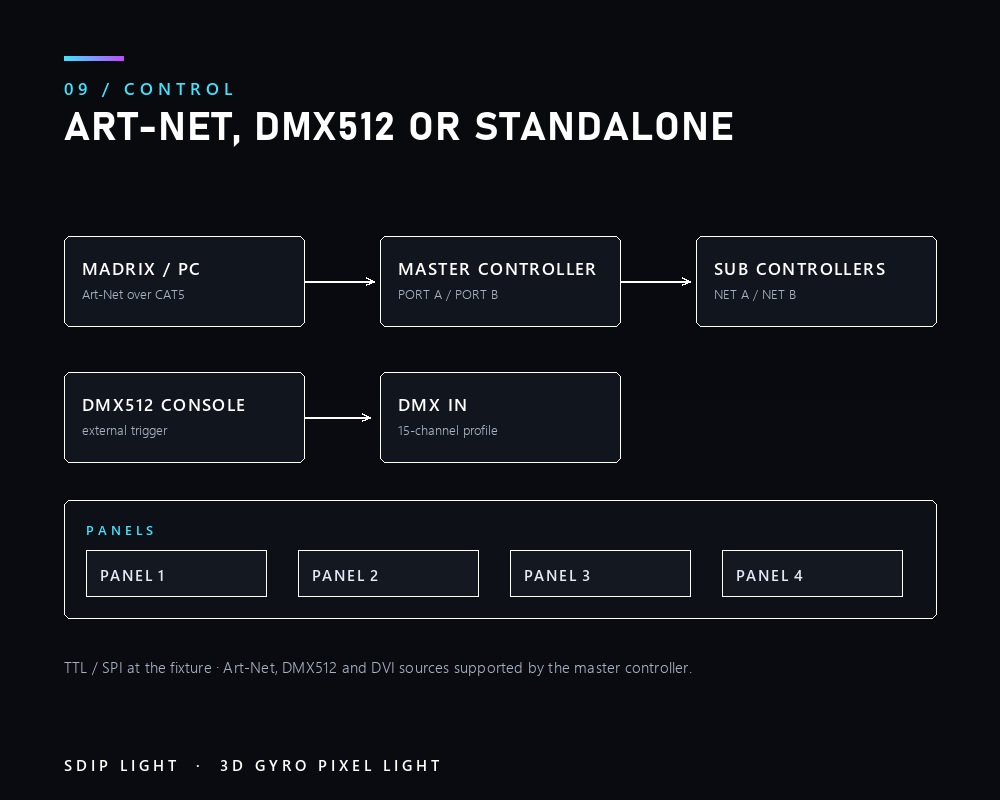

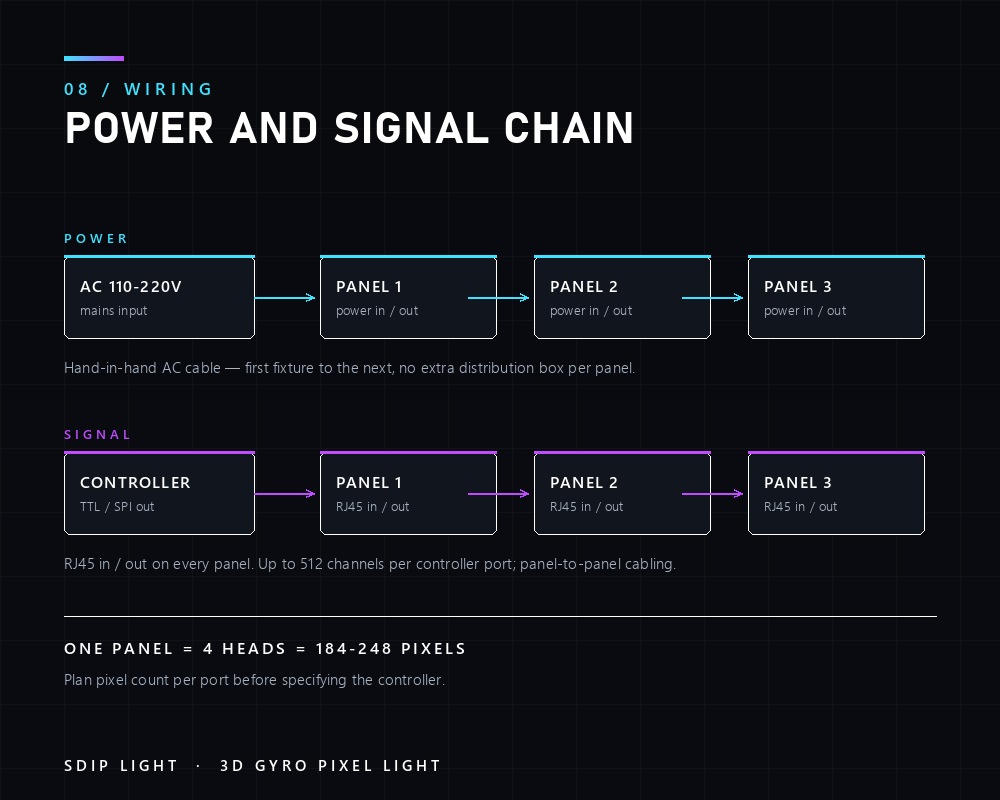

4. DAISY-CHAIN POWER AND SIGNAL – AC 110-220V hand-in-hand power plus RJ45 in/out per panel; TTL/SPI at the fixture, Art-Net / DMX512 / MADRIX from the controller.
5. 184-248 PIXELS PER PANEL – WS2812 5050 RGB, GRB channel, 256 grey levels, 50,000-hour lifespan, PC + ABS + metal housing, IP33.

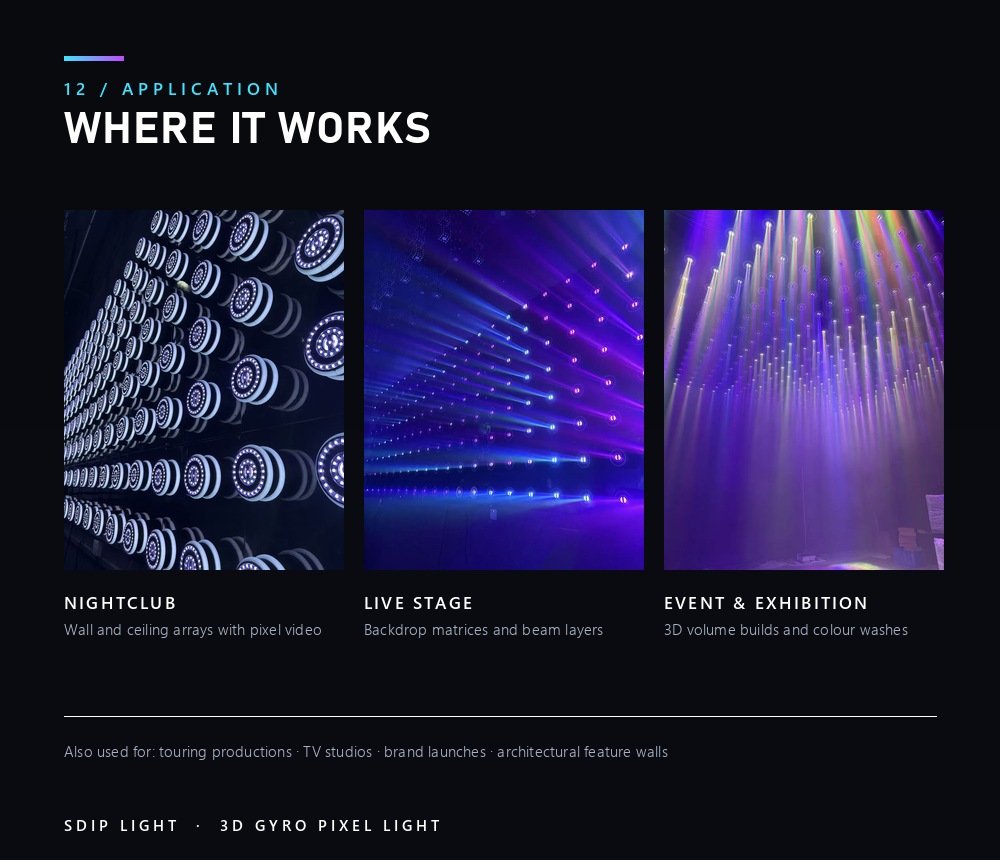

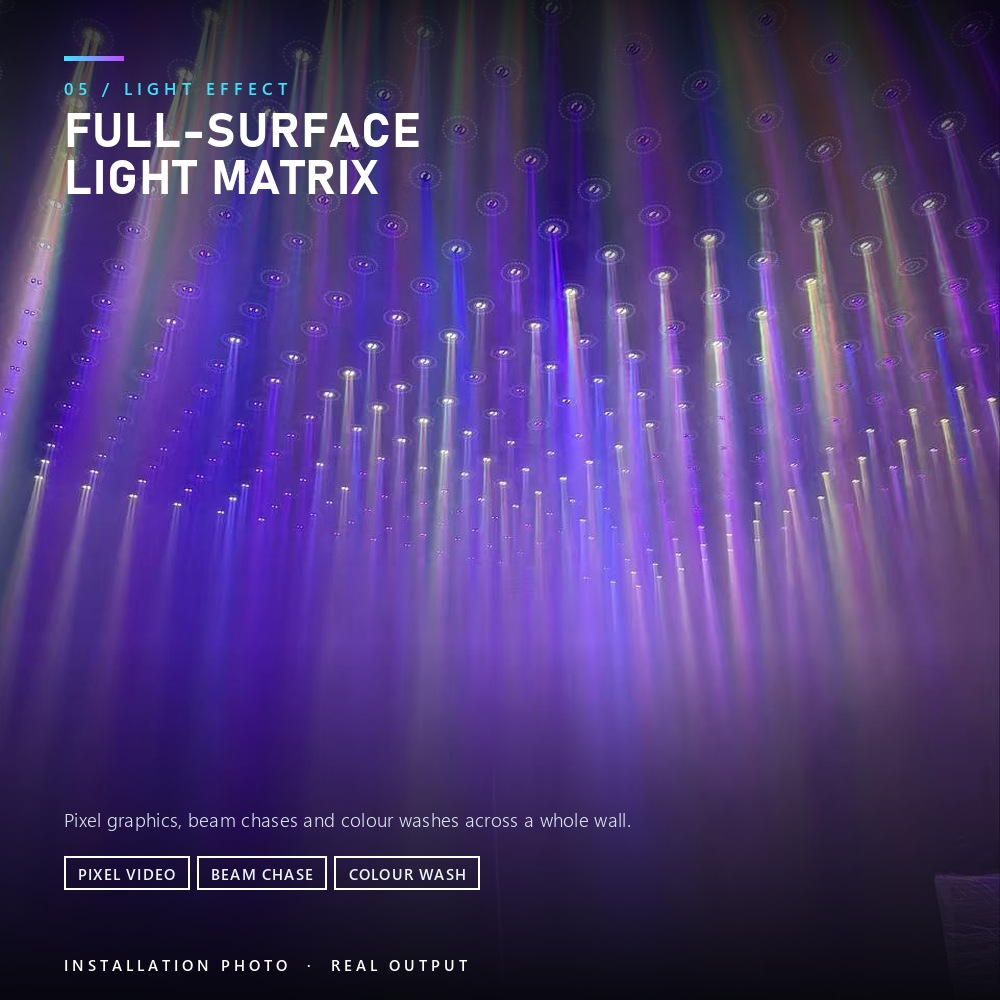

Applications: nightclub, live stage, touring production, exhibition, TV studio, architectural feature wall
