4PCS Wash LED Matrix Par Light HS-P64-046072

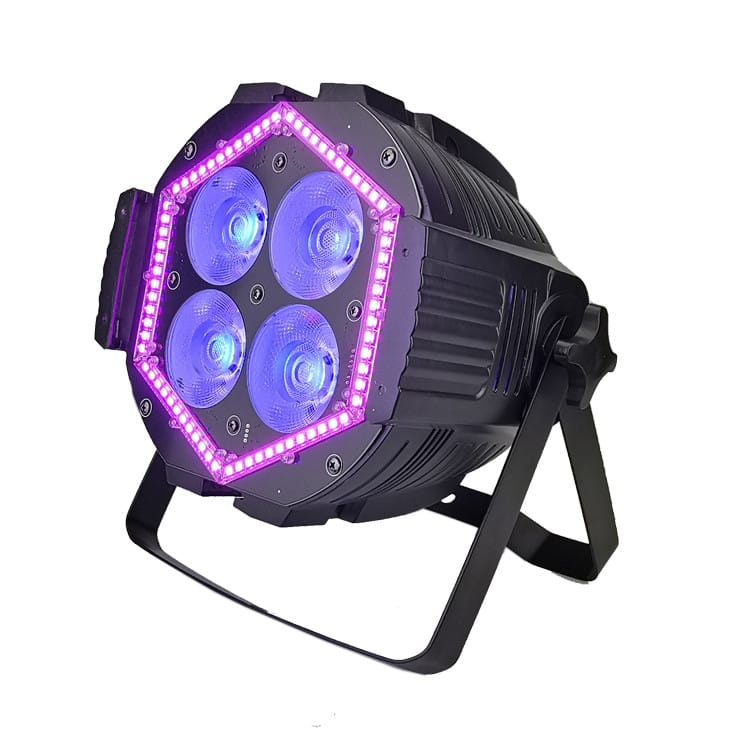

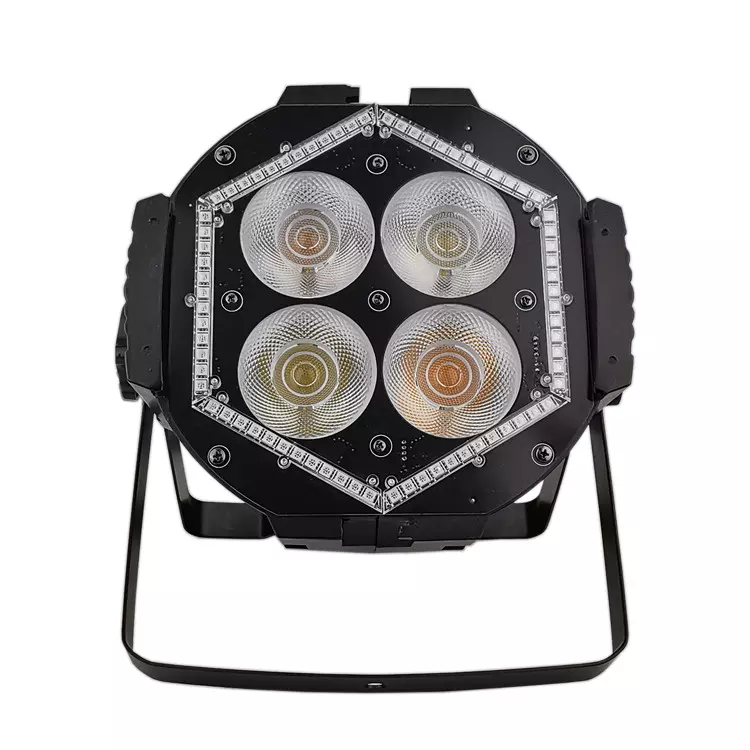

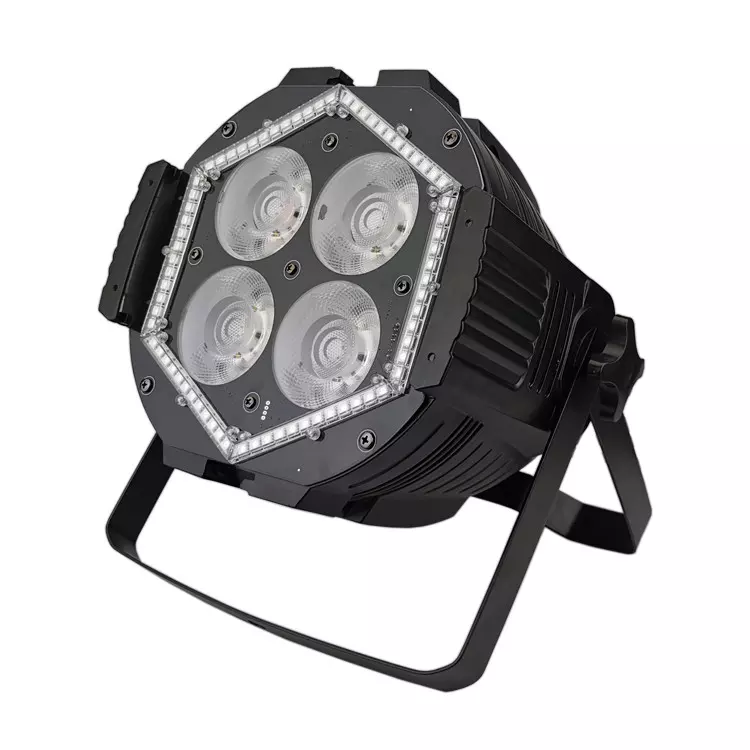

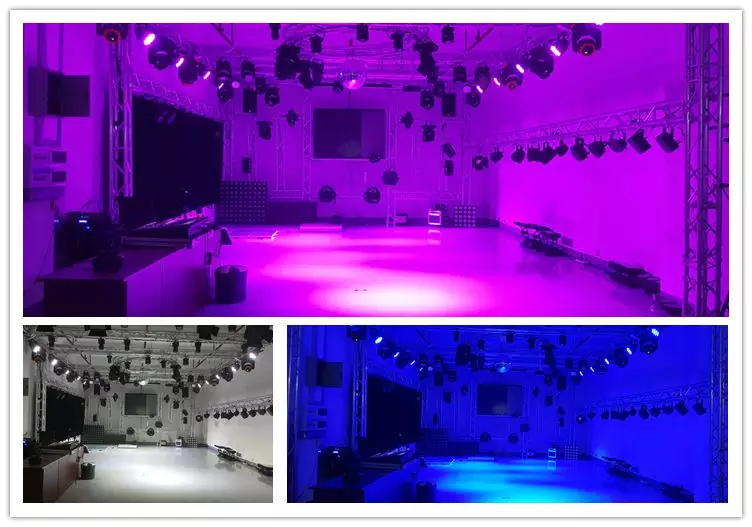

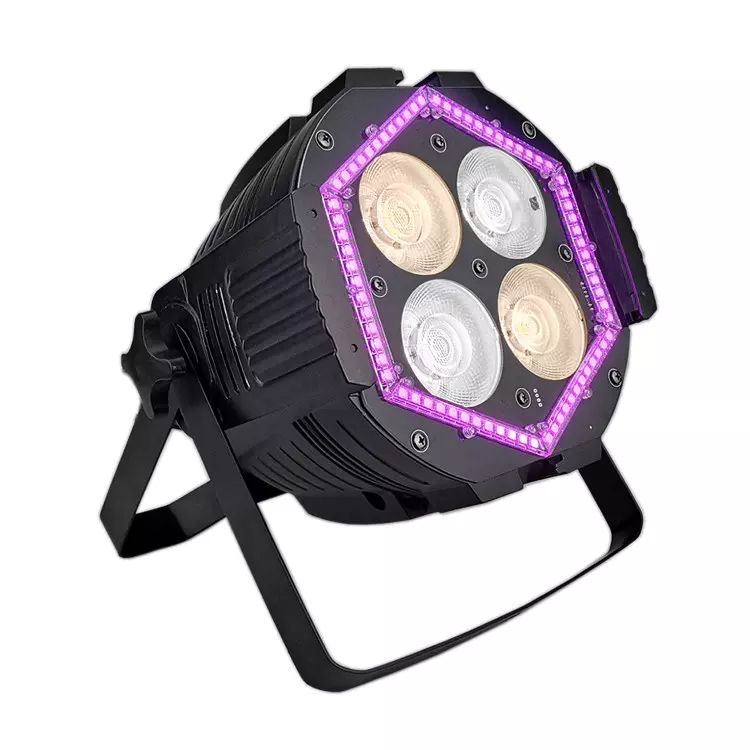

LED MATRIX PAR 472 use 4PCS COB 50W white LED or 4PCS 60W 4IN1 RGBW LED with 72 PCS 0.1W 3IN1 RGB LED made a hexagon around the 4 led , Each led bead can be controlled separately, the smd led can be controlled separately, each 3 LED is a group. Total power reach 246W. It has good color mixing effect, more functions, low noise, no-flicker. LED MATRIX PAR 472 product has 3 option channel mode, easy to operate. It is suitable for multi-function hall, concert, DJ, stage, bar, wedding, etc.
- Optical System

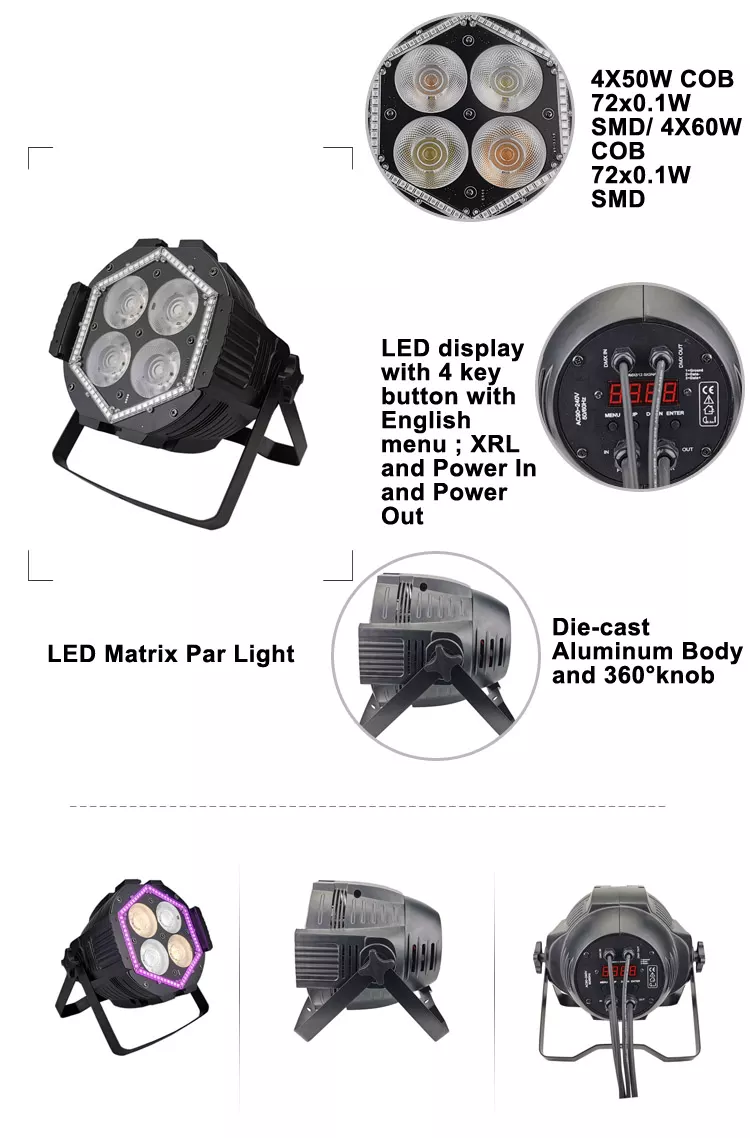

- Light source: 4PCS 50W COB ,72PCS 0.1W SMD LED
4PCS 60W COB ,72PCS0.1W SMD LED
- LED lifespan: min. 50,000 – 80,000 hours
- Lens angle: 24°/12°/36°
- Dynamic Effects
- LED rainbow effect
- LED stream effect
- 0-100% smooth linear dimming system
- LED shutter function, speed adjustable0-100% smooth linear dimming
- 20 times/sec strobe effect
- With random strobe and pulse effect
- Each LED can be controlled separately
- Control and Program
- Protocol: DMX512, master-slave, sound control, auto
- Control Channels: 7/16/76/88CH
- Built-in pre-programs
- Marco function
- Electrical Specification and Connections
- Power supply: electronic auto-ranging
- Input voltage: AC90-240 V, 50-60 Hz
- Power connector in/out: power plug

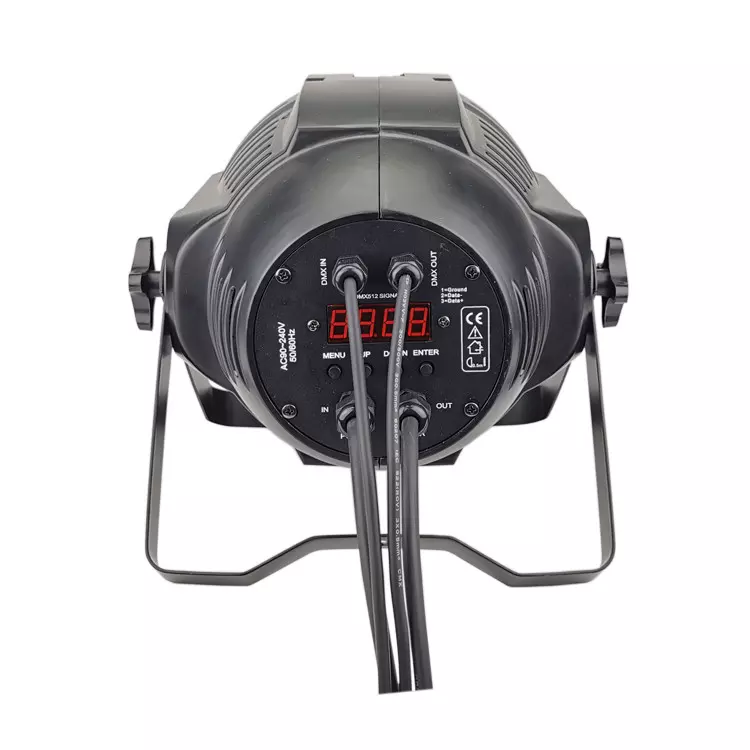

- Data connector in/out: 3-pin XLR
- Working Environment
- Ambient temperature: -25℃ ~ +45℃ (-13℉ ~ +113℉)
- Protection grade: IP33
- Approvals
- CE, ROHS, MSDS for battery
- If any other certificates are required, confirm with us please
- Product and Packing Dimensions
- Product: 290*240*310mm(4*9.4*12.2inch)
- Carton: 255(D)*255(W)*365(H)mm(10.0*0*14.4inch)
- Net weight: 5kg ( 11lbs)
- Gross weight: 8kg ( 17.6lbs)
- Carton(6pcs-in-1):800(D)*540(W)*390(H)mm,24kg(5*21.3* 15.4inch,52.9lbs)

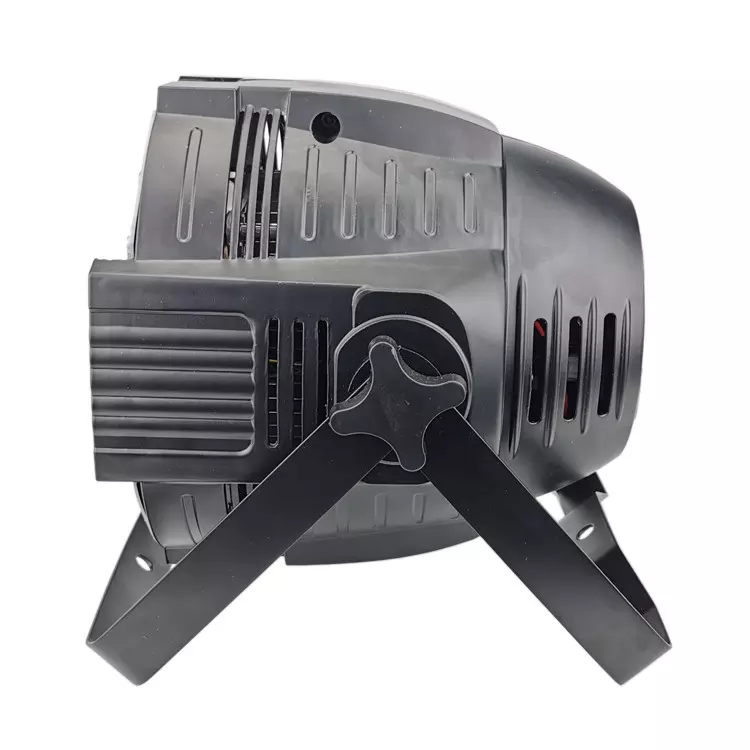

- Die-cast Aluminum housing and metal base
- Packing List
- LED MATRIX PAR 472
- User manual
- Power cable
- 3-pin XLR connectors
- Optional Accessories
- Clamp
- Safety rope
- DMX wire
- Flight case
