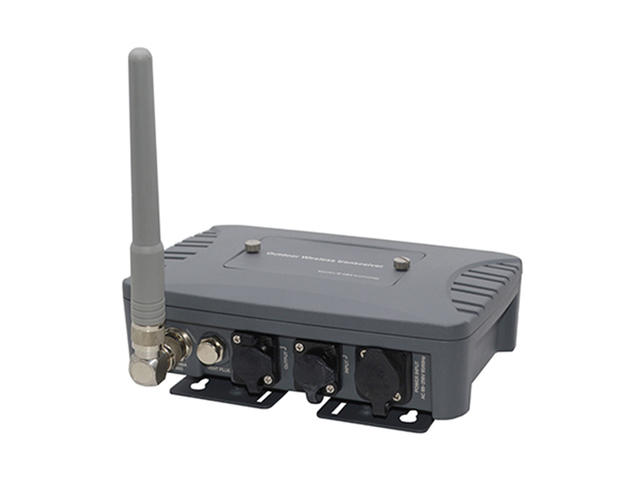

Cast Aluminum Indoor DMX Wireless Transmitter and Receive HS-C24-W
This is a new designed 2.4G wireless transmitter and receiver for DMX console. It equips original Sweden wireless solution chips and antenna. This equipment is very good using for your event if you don’t want to use the dmx cables.
Features
·Using 3-pin plastic with card position Nutric signal XLR socket;
·Adopt Swedish W-DMX transceiver technology;
·A variety of installation methods, which can be hung in different activity places arbitrarily;
·DMX wireless system is suitable for consoles and lighting equipment with 512 signals and any number of channels, accurate and fast, without mutual interference, and automatic error correction;

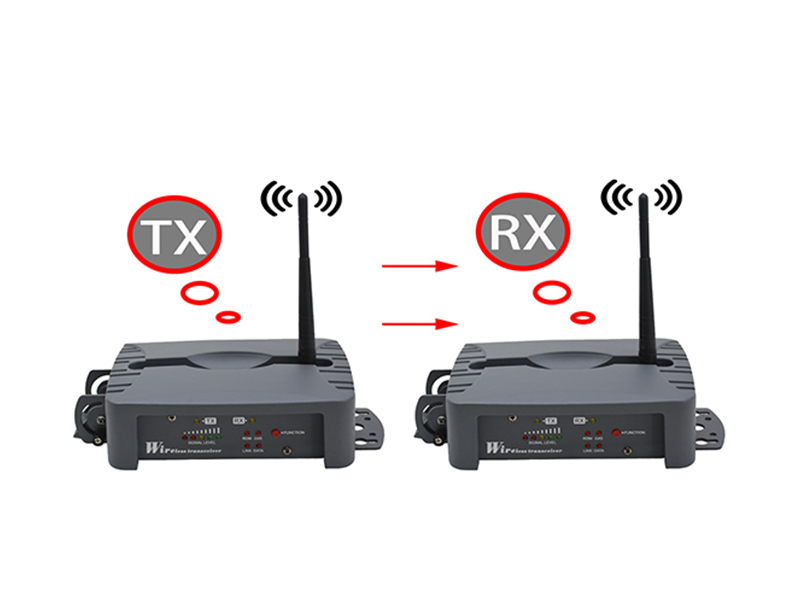

·One-to-one transmission or one-to-multiple reception;
·Multiple groups of transmitters can be installed in the same place, and the frequency is automatically matched;
·A variety of installation methods, which can be arbitrarily hung in different activity places.
Specifications
DMX Signal Output
·Signal strength: 2.4G
·Transmission power: 20～26.4DBM
·Transmission distance: 300 meters (open space)
·Carrier frequency: 2403M～2479MHz
·Communication distance: 300M (open space, it varies depending on the environment)
·Working frequency band: 2.4G ISM, 126 frequency bands
·Receive sensitivity: -106dBm
·DMX signal interface: 3-pin XLR
·Antenna configuration: standard 100mm helical SMA antenna, optional large gain antenna
Control and Programming
·Control panel: 1 buttons
Thermal Specification
·Maximum ambient temperature: 45 °C (113 °F)
·Maximum surface temperature: 170 °C (338 °F)
Electrical Specification
·Power supply: switching power supply
·Input voltage range: AC80-256V, 50/60Hz
·Power consumption: 6W
Mechanical Specification
·Dimension: 176*117*58mm
·Weight: 0.7kg
·Material: Aluminum die casting
·Appearance color: black
Using Environment
·IP rating: IP65
·Working temperature: -25-40℃
Installation
·Installation style: stand on floor/installed on truss
Standard Accessories
·1pc power cable
Package Information
·Carton box package size: 245*205*100mm(1pc/carton)
·N.W/G.W: 0.9kg/1.15kg
·Carton box package size: 430*270*340mm(6pcs/carton)
·N.W/G.W: 7.15kg/7.7kg
