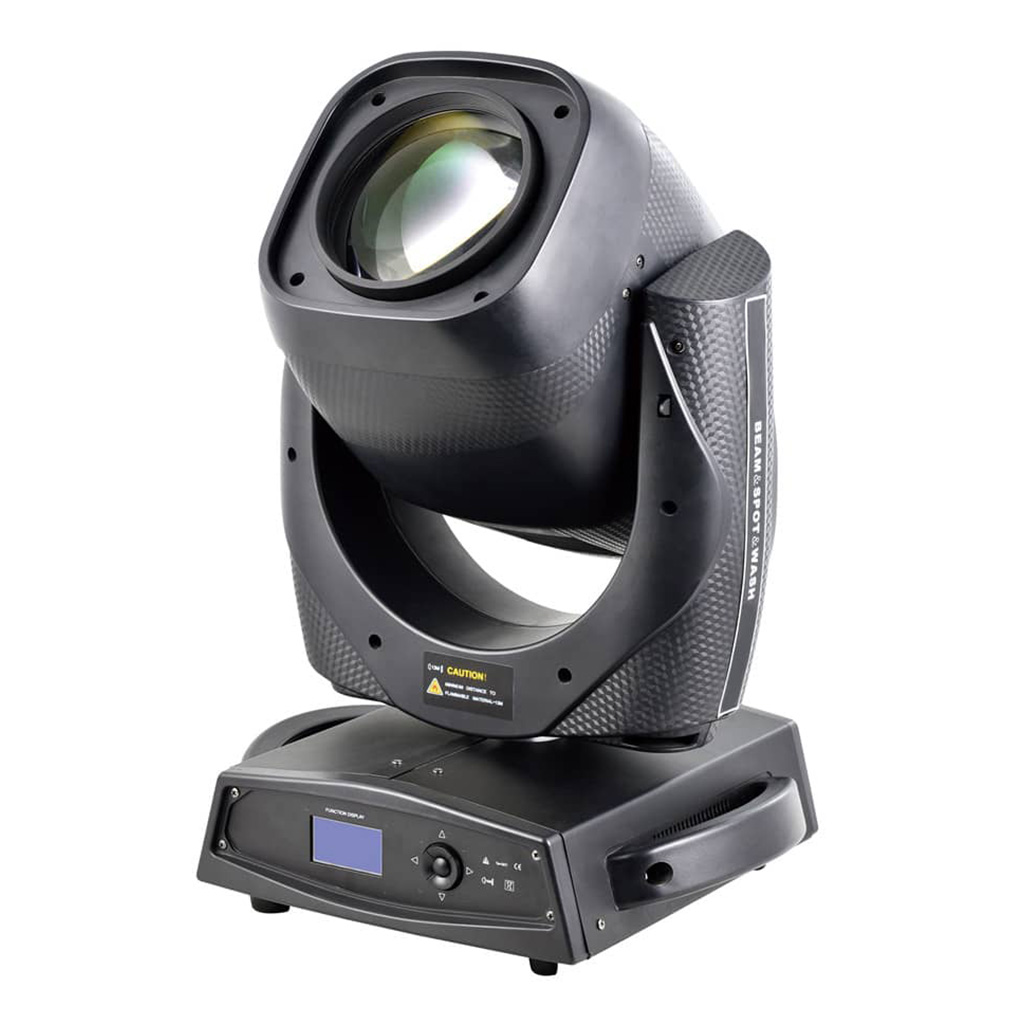

Clay paky mythos 470W Beam Spot Wash 3in1 CMY Moving Head Light HS-MB470-1


Units Sold: 22

Clay paky mythos 470W Beam Spot Wash 3in1 CMY Moving Head Light HS-MB470-1

In Stock:500

SKU: HS-MB470-1 Category:

Clay paky mythos 470W Beam Spot Wash 3in1 CMY Moving Head Light HS-MB470-1
Beam spot 470 features a new and reliable OSRAM SIRIUS HRI 461W 7800k stage Lamp, which ensures the extraordinary performances. Beam spot 470 is an excellent spotlight, which produces an outstanding large light beam, featuring a zoom that ranges from 2.5° to 60° .Light beam is sharp, with perfectly defined edges, from the first millimetres after the front lens right along its entire length. The zoom is optimized for focusing, which is separate from that of the fixed and rotating gobos. Its movements are smooth, fast and very quiet. Beam spot 470 also features an indexed visual effect disc, which may be superimposed on all the gobos, both in and out of focus. But Beam 470 is also an extraordinary beam light, allowing you to switch to a minimum fixed beam angle of just 2.5°. A large, very dense, 160 mm-diameter light beam leaves the Beam spot 470’s front lens and remains parallel for its entire length even at great distances. Beam spot 470 is a very versatile tool, which is useful in any situation and therefore an excellent investment.

Optical System

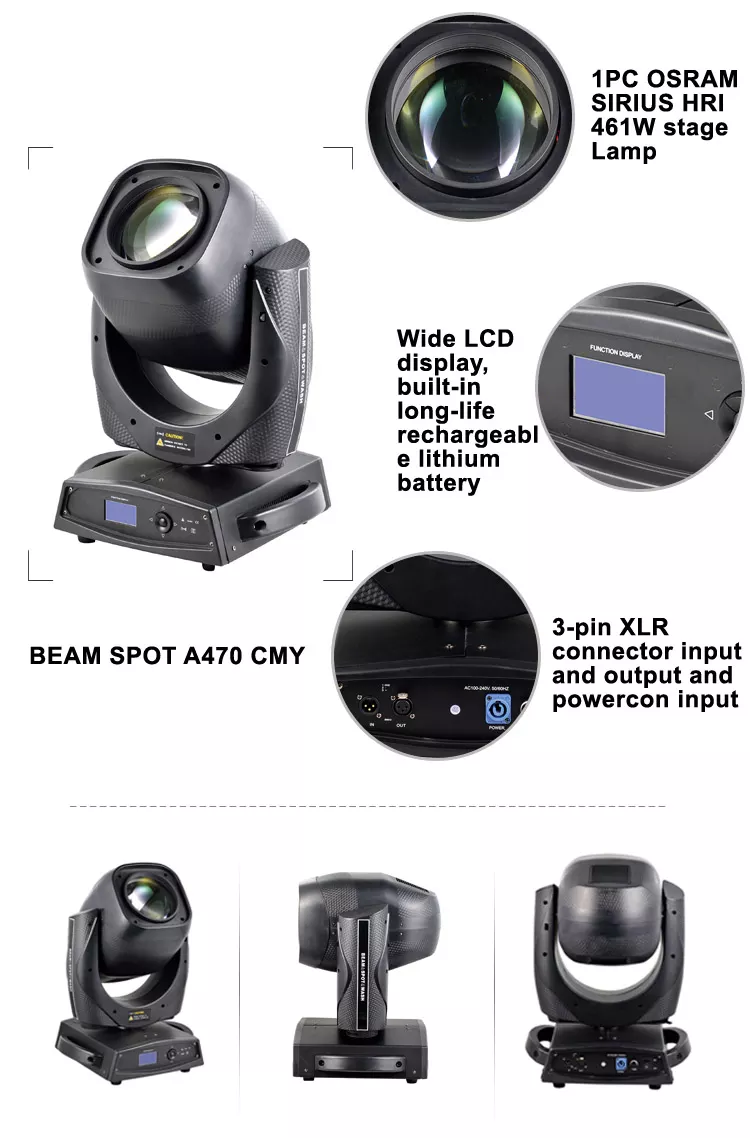

Light source: 1PC OSRAM SIRIUS HRI 461W stage Lamp
Colour temperature: 7800K
LED lifespan: 2000 hours
Dynamic Effects

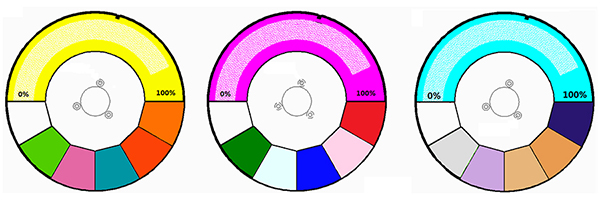

CMY color system with 3 gradient color disks;
15 color filters on 3 color disks;
1 CTO cooling film + 2 CTB heating films
Fix gobo wheel: 18 fixed gobo + white

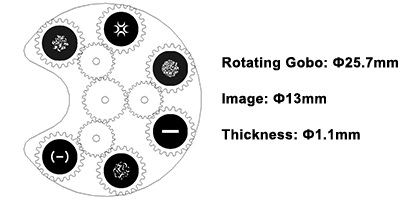

Rotating gobo wheel: 6 rotating gobo + white
Prism 1: 8-facet round prism
Prism 2: 4-facet linner prism
Frost : 1pc frost
Color half step function

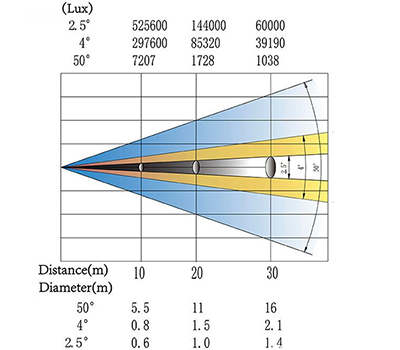

ZOOM range: 2.5°-5° beam model; 5°–60° spot model
Electric focus from near to far
Linear ZOOM function
0-100% electronic dimming
1-20 times/second high-speed strobe effect,Random and pulse strobe function
Control and Program
Use wide LCD display, built-in long-life rechargeable lithium battery, you can set the lamp function without connecting power
Protocol: DMX512, master-slave, sound control, auto mode
Control channels: 30/34 CH
Pan/Tilt resolution: 16 bit smooth scanning
Pan movement: 540°
Tilt movement: 270°
Movement control: Standard and Speed
Controllable speed of Pan/Tilt movement
Automatic Pan/Tilt position correction
Electrical Specification and Connections
Power supply: Electronic auto-ranging
Input voltage: AC100-240 V, 50/60 Hz
Power consumption: 620W
Power connector in/out: Powercon in
Data connector in/out: 3-pin XLR
Working Environment
Ambient temperature: -20℃ ~ +45℃ (-4℉ ~ +113℉)
Protection grade: IP20
If any other certificates are required, confirm with us please
Product and Packing Dimensions

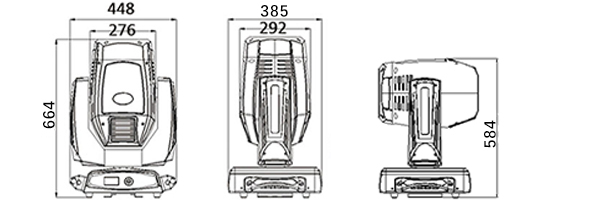

Product: 410(L)*360(W)*450(H)mm (16.1*14.2*17.7 inch)
Carton: 505(L)*485(W)*450(H)mm (19.9*19*17.7 inch)
Net weight: 28.5 kg (62.8 lbs)
Gross weight: 31.5 kg (69.4 lbs)
Packing List
User manual
Power cable
XLR Connector
O-mega clamp
Optional Accessories
Flight case: 2pcs in 1
Safety rope
DMX wire

Clay paky mythos 470W Beam Spot Wash 3in1 CMY Moving Head Light HS-MB470-1


    [mathcaptcha your-iq-mathcaptcha id:wppop-iq-mathcaptcha class:wppop-mathcaptcha]

    Weight 35 Kg
    Dimensions 40 × 25 × 20 CM

    1pieces carton box packing, 2pieces with flight case

    Plug Type

    EU, US, AU, UK

    EXW price

    Factory Price
