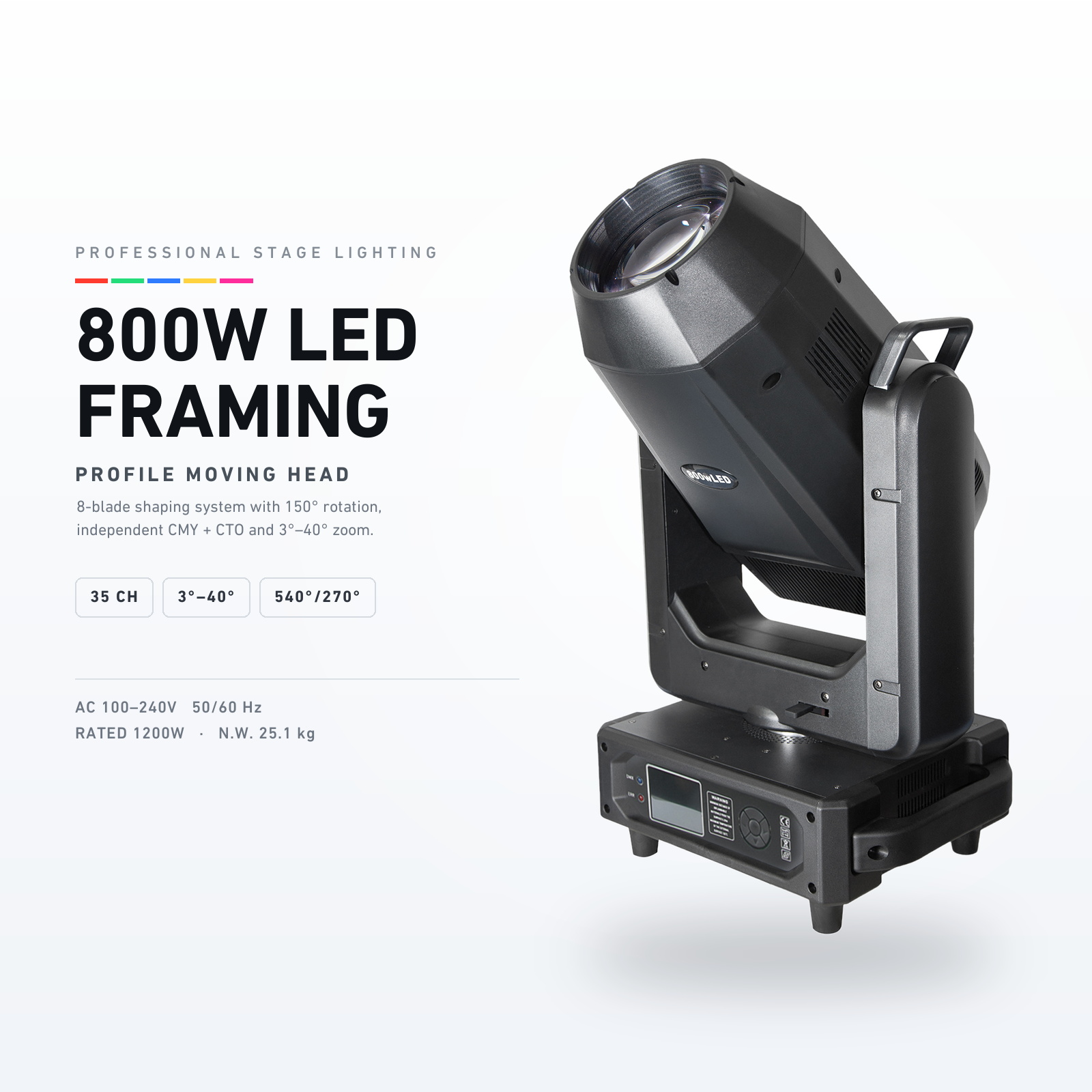

800W LED Framing Profile Moving Head 8-Blade Cutting System CMY CTO 3-40° Zoom DMX512 Stage Light
* Warranty: Within 2 year.[ free to repair, provide any accessories,if need return back to factory,Buyer need pay for the shipping cost.]
Product Technical Parameters:
– Input voltage/frequency: AC100V-240V, 50/60Hz
– Rated power: 1200W
– Light source: One high brightness high-power 800W white LED
– LED lifespan: 20,000 hours
– Spot uniformity: 90%
– Beam angle: 3°-40° motorized zoom, linear zoom in/out
– DMX channels: 35 international standard DMX512 channels
– Operation modes: DMX512, RDM, Auto, Master-Slave, Sound active
– Color wheel: 5 colors + white, with CTO and high CRI
– Independent CMY color mixing system, with flowing effect
– Fixed gobo wheel: 6 fixed gobos with gobo shake function
– Rotating gobo wheel: 7 plug-in rotating gobos (white), with gobo shake and arbitrary gobo positioning
– Framing shutters: 8-blade controllable shutter system, 150° system rotation, creates any shaped spot
– Prism: 1 prism + 8-facet prism, bi-directional rotation, stackable, speed adjustable
– Focus: DMX linear HD focus, 2m to infinity
– Frost: Built-in frost filter for soft effect
– Strobe: 1-25 Hz ultra-high speed strobe, random and pulse strobe selectable
– Dimming: 0-100% linear dimming
– Iris: 5%-100% smooth adjustment
– Pan/Tilt: Pan 540, Tilt 270, 16-bit precision scanning, auto position correction
– Display: LCD touch screen
– Smart energy saving: LED auto-off when dimmer is fully off
– Product size: 77.5 x 40.5 x 28.5 cm
– Net weight: 25.1 kg
– Gross weight: 28 kg
– Carton size: 79.5 x 36.5 x 50.5 cm
Key Features:
– 800W white LED engine with 20,000h lifespan and 90% spot uniformity
– 8-blade framing shutter system with 150 rotation for precise cutting to walls, sets and screens
– Independent CMY mixing + CTO + 5-color wheel with white for smooth color changes
– 3-40 degree motorized zoom and linear focus from 2m to infinity
– 6 fixed + 7 rotating plug-in gobos, dual stackable prism (1 + 8-facet)
– Frost filter, iris 5-100%, 1-25 Hz strobe, 0-100% linear dimmer
– 16-bit pan/tilt scanning with auto correction, LCD touch screen, RDM supported
Applications:
– Theater, TV studio, concert halls and live events
– Corporate shows, exhibitions and architectural lighting
– TV broadcasting, film and video production
– Clubs, bars and entertainment venues
– Wedding and stage performance lighting
