Hosen Lighting

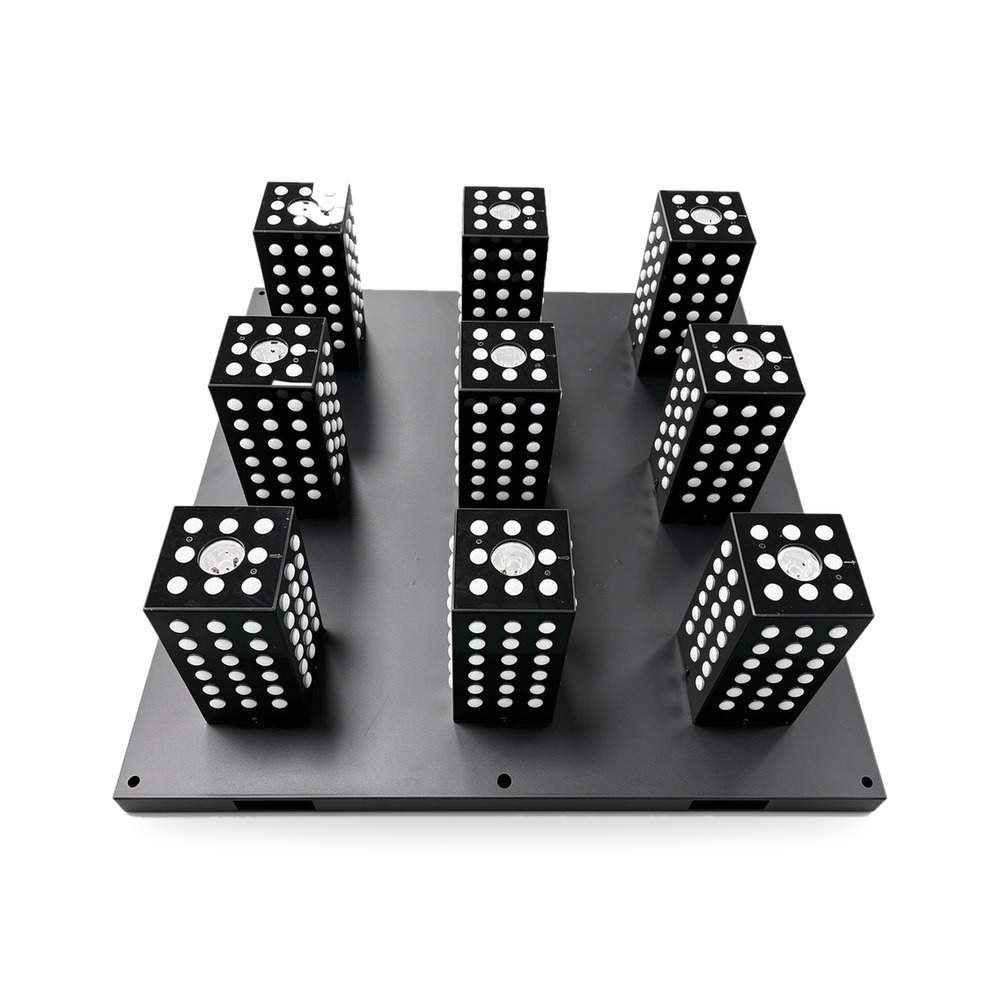

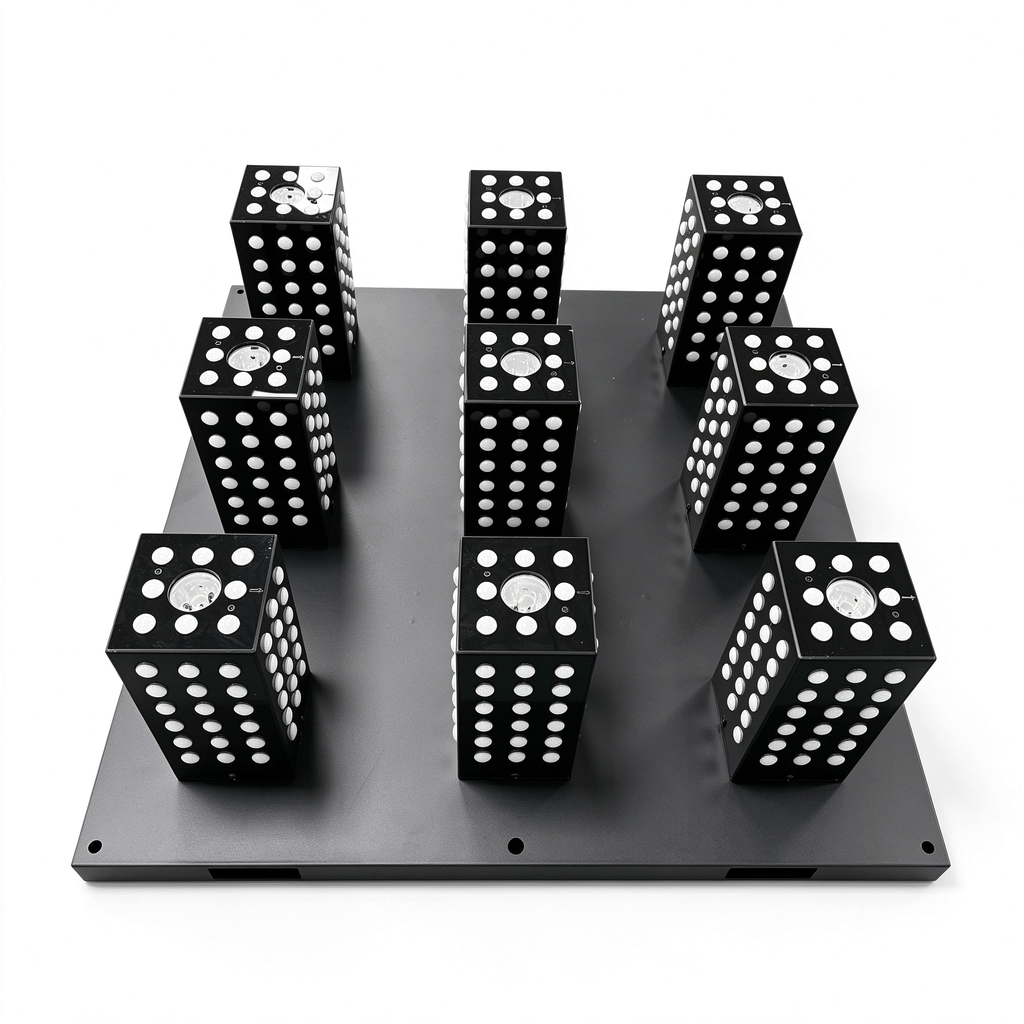

3D Matrix Corn Light 720 Pixel WS2812 RGB Beam Pixel Column
* Warranty: Within 2 year.[ free to repair, provide any accessories,if need return back to factory,Buyer need pay for the shipping cost.]
Product Technical Parameters:
- Supply Voltage: AC 220V (built-in power)
- LED Chip: WS2812-2020 RGB
- Total Pixels: 720 addressable pixels
- Pixel Faces: 5-sided, 6 layers per corn column
- Beam Pixel: 9 x 9W high-power LEDs with 3 degree optical lens
- Max Power Consumption: 135W
- Working Current: 27A
- Channel Order: GRB
- Grey Scale: 256 levels
- Signal Protocol: SPI serial, DMX512, ArtNet, DVI
- Housing: Metal (powder coated) + ABS + PC cover

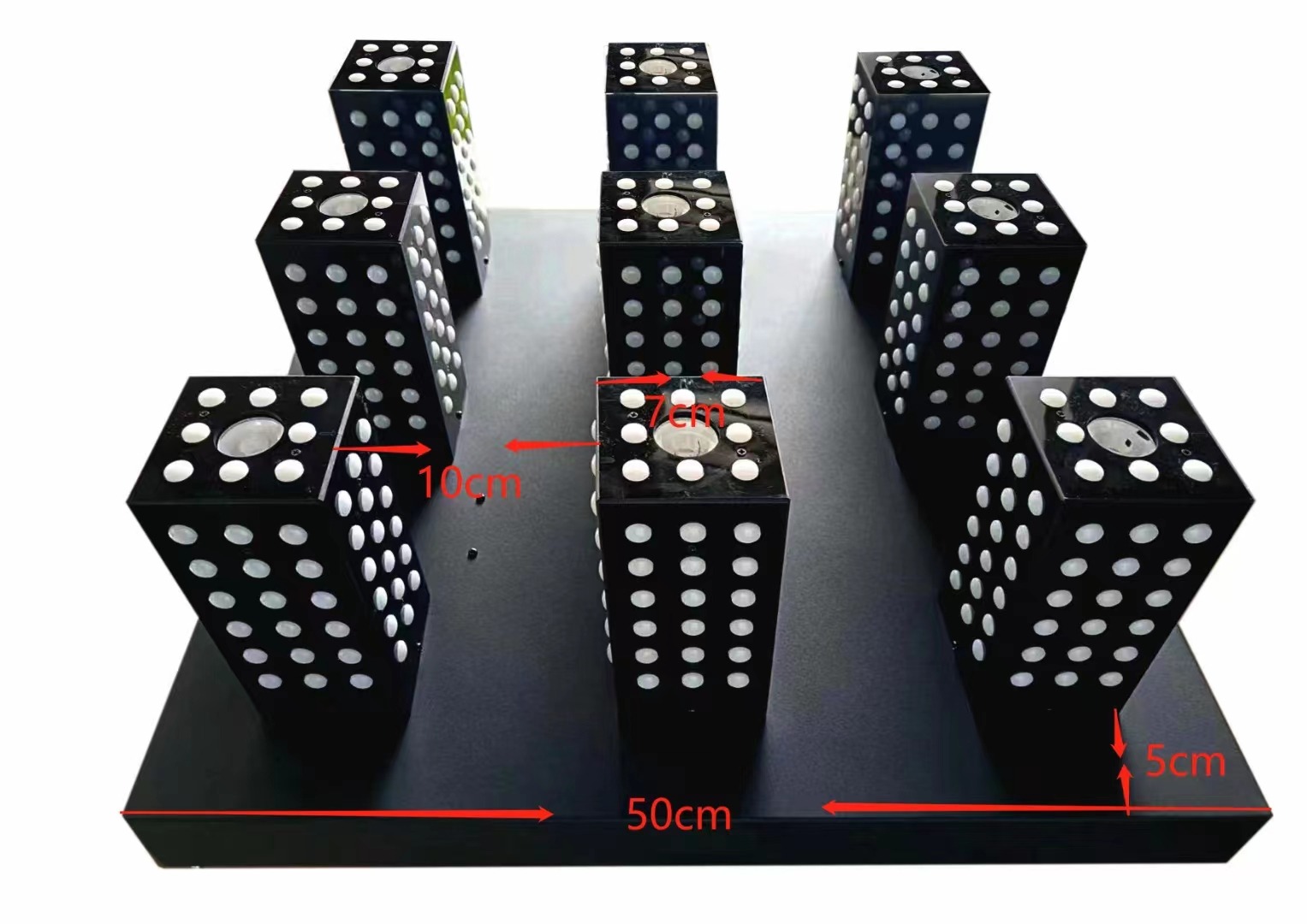

- Dimensions: 500 x 500 x 240 mm
- Net Weight: 7.5 kg
- IP Rating: IP33

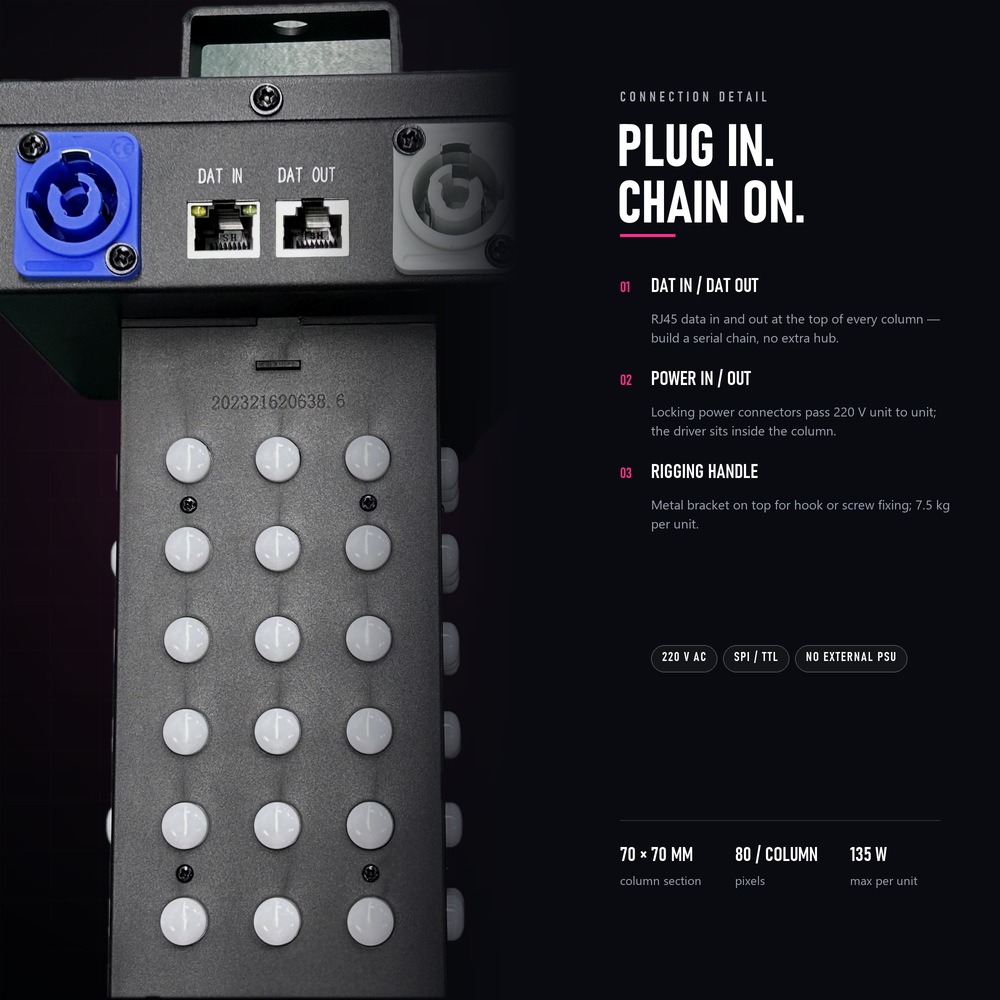

- Signal Connection: RJ45 in / out
- Mounting: Hanging / hook or screw mount
Key Features:

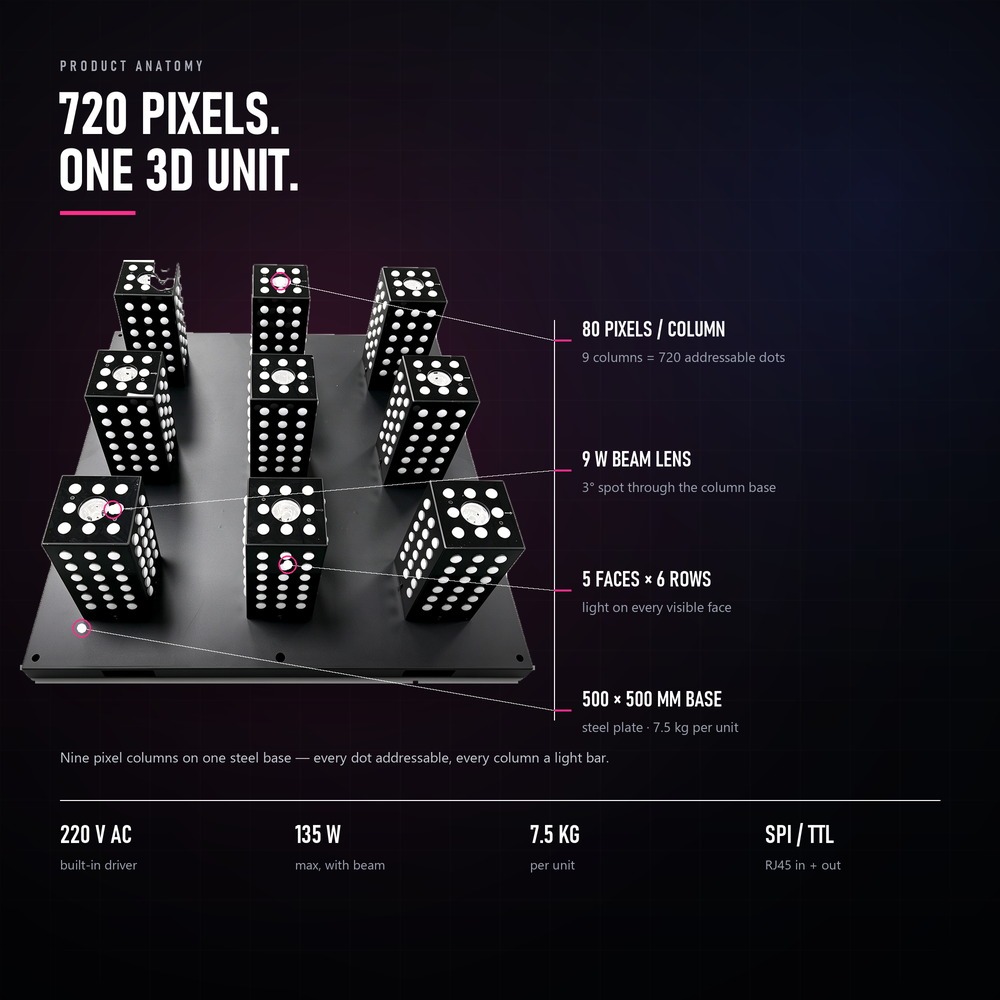

- 9 corn columns form one 3D point-matrix unit; each unit has 5 faces and 6 layers of pixels.
- 720 independent addressable pixels plus 9 downward beam pixels for a dual-source 3D effect.

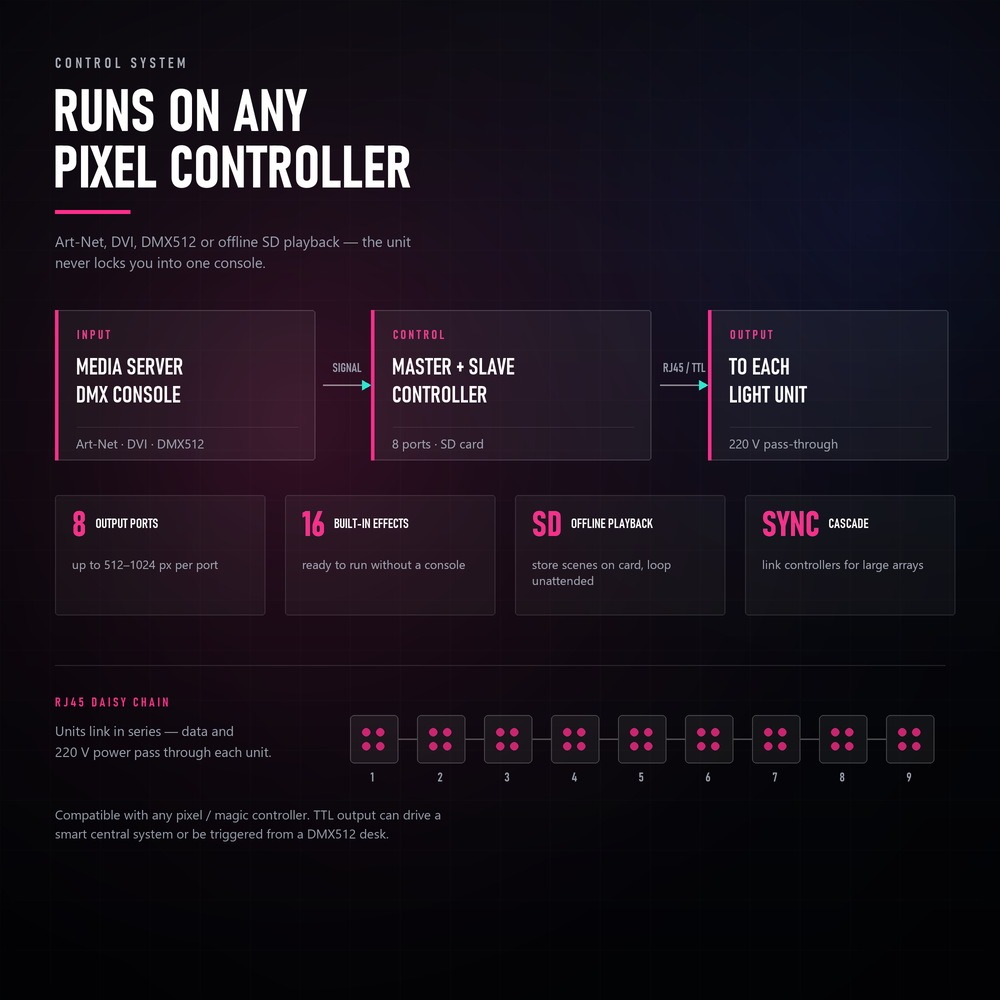

- Compatible with any pixel controller; supports offline, DVI, ArtNet and DMX512 control.
- TLL controller links to smart central control or DMX512 console.
- Metal spray-paint body with dedicated mounting bracket, hook or screw fixing.
- Built-in power supply connects directly to 220V; RJ45 signal in / out for daisy chaining.

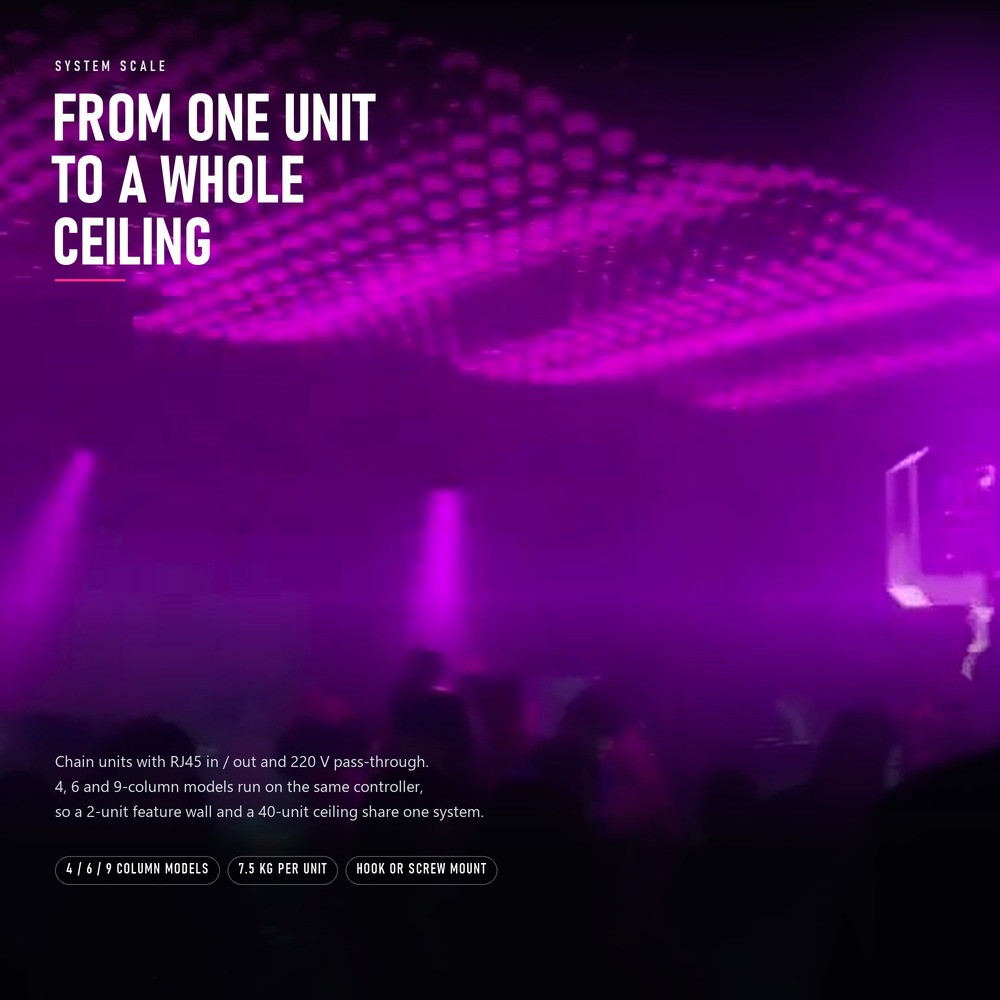

- 4, 6 and 9 column models run on the same controller – from a 2-unit feature wall to a 40-unit ceiling.
DMX Channel Description:
- Pixel control via external SPI pixel controller, WS2812 protocol, GRB order, 256 grey levels.
- Supports DMX512, ArtNet and DVI input for real-time mapping on MADRIX or similar software.
- Units chain RJ45 signal in/out and 220V pass-through for large ceiling or wall installations.
Applications:

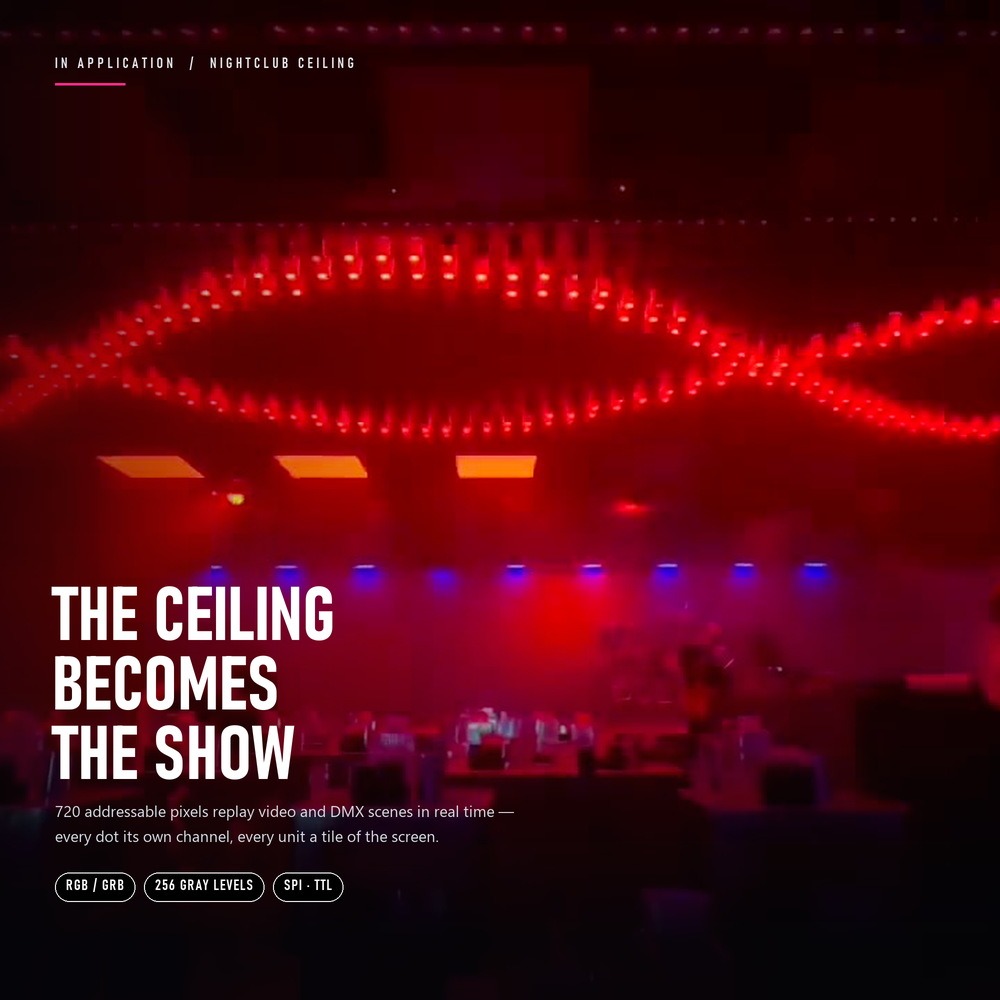

- Bars, lounges and dance clubs
- Live stages and performances
- Rental and event production
- KTV rooms
- Kinetic / lifting pixel ceiling and feature walls
