Hosen Lighting

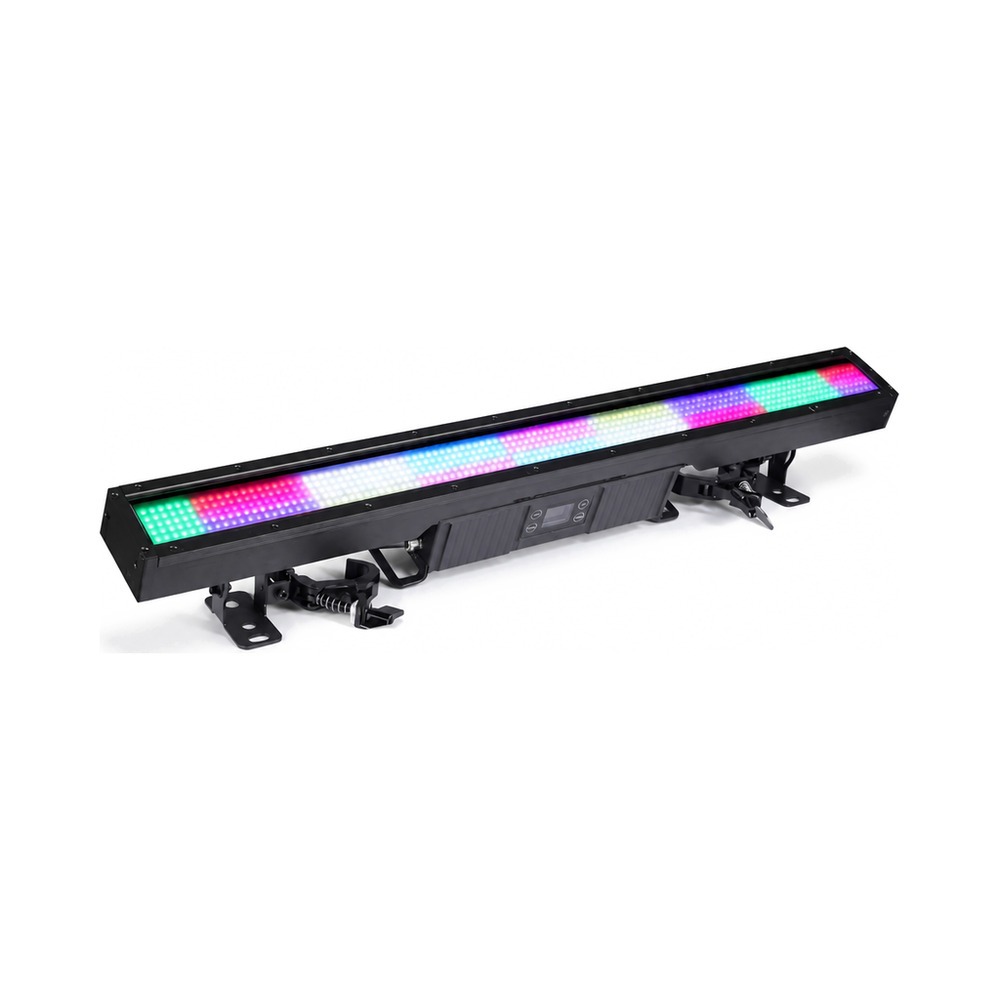

600W IP67 Waterproof LED Strobe Bar 32-Segment RGB + 16-Segment White Running Flash Stage Light
* Warranty: Within 2 year. [ free to repair, provide any accessories, if need return back to factory, Buyer need pay for the shipping cost.]

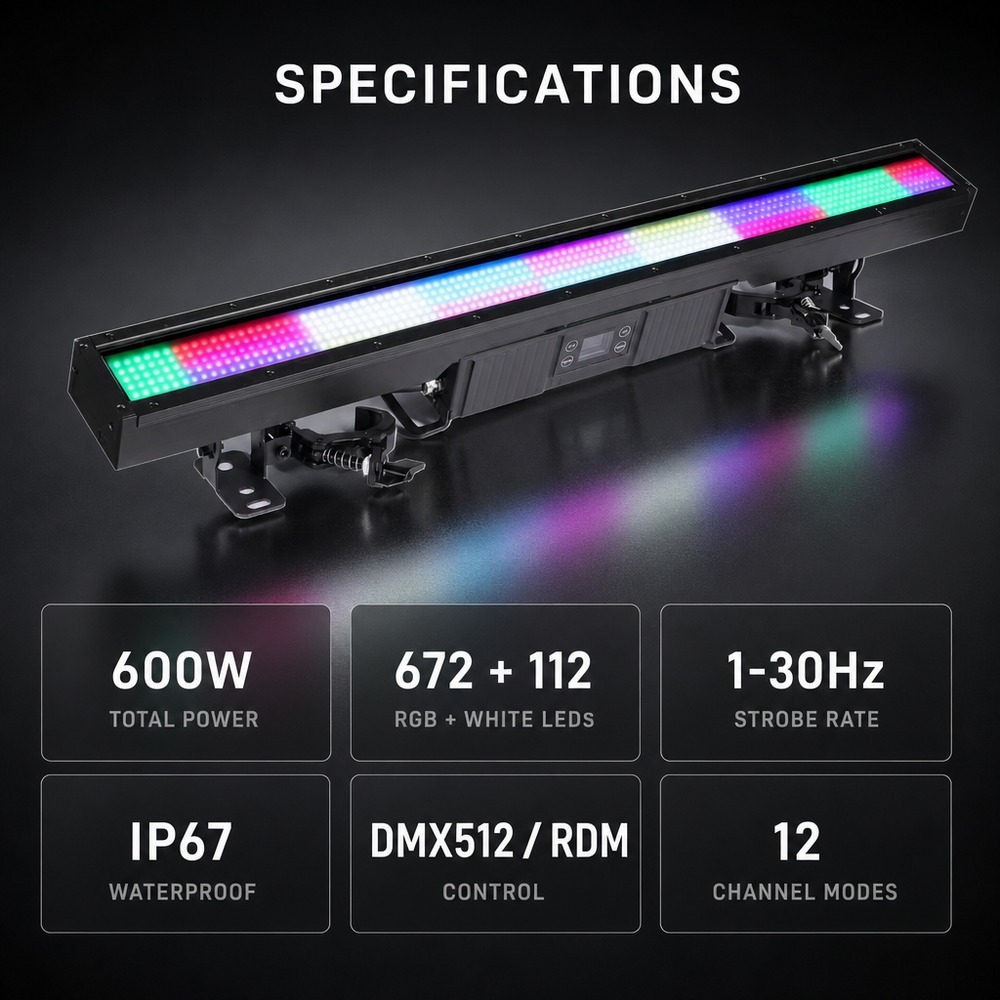

Product Technical Parameters:
- Voltage: AC100~240V 50/60Hz
- Power: 600W
- LED Source: 672pcs 5050-RGB 0.3W + 112pcs 3030-White 3W
- Control Mode: DMX512, Self-propelled, Master-Slave, Voice Control, RDM function
- DMX Channels: 12 channel modes available (CH7, CH15, CH21, CH39, CH112, CH17, CH33, CH65, CH68, CH117, CH70)
- Dimming: 16-bit 0-100% linear dimming
- Strobe Frequency: 1-30Hz
- IP Rating: IP67 Waterproof
- Working Temperature: -30°C ~ 50°C
- Housing: Metal, black finish
- Connection: DMX512 Input/Output, Power Input/Output
Key Features:

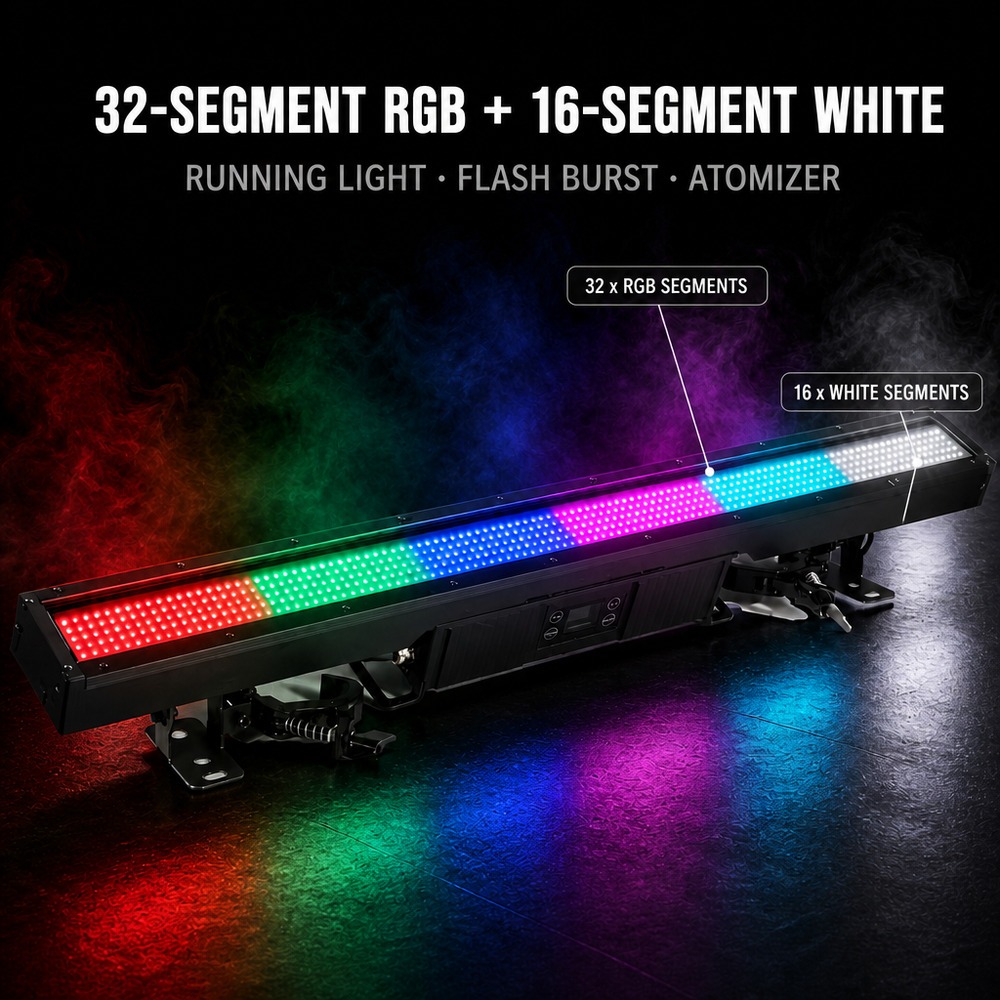

- 32-Segment RGB + 16-Segment White: Independent control per segment for running chase, color mixing and pixel effects
- Running Light + Flash Burst + Atomizer: Three built-in effect modes for dynamic stage atmosphere

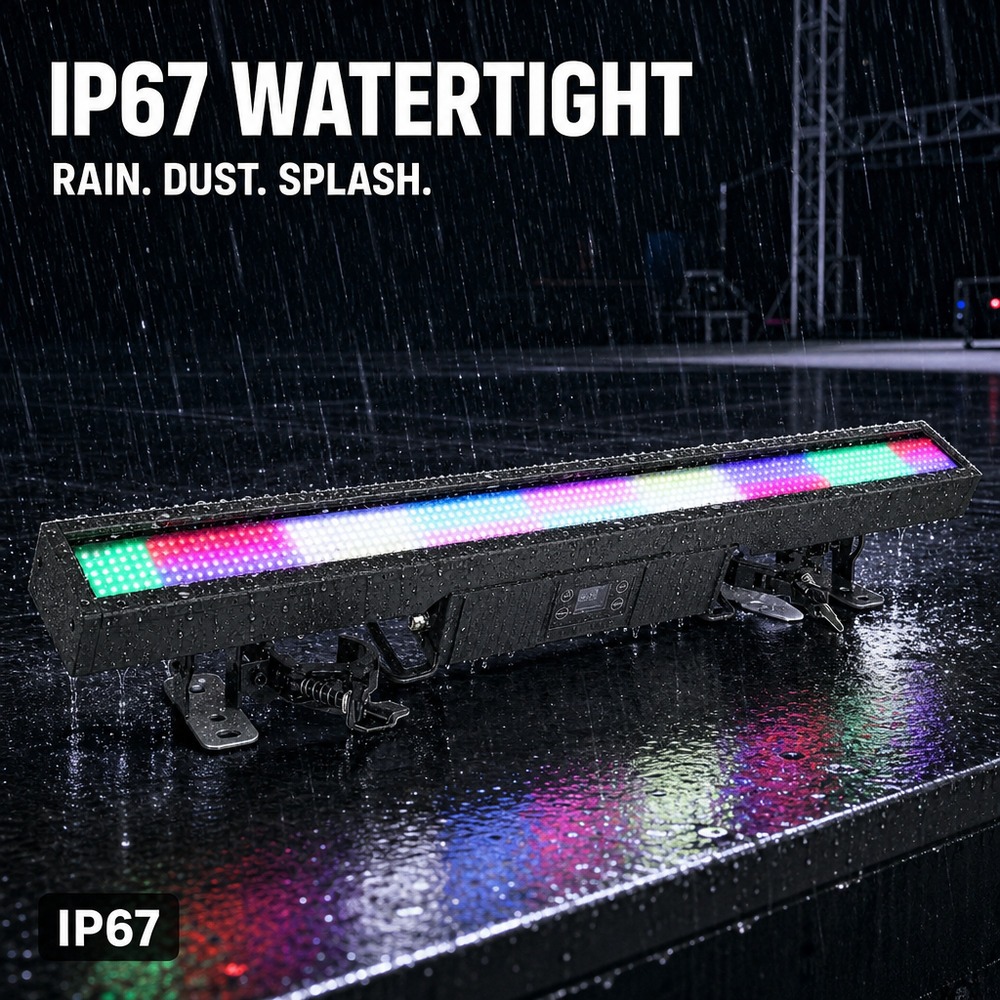

- IP67 Waterproof: Fully sealed against rain, dust and splash — suitable for outdoor events
- 600W High Output: 672 RGB LEDs + 112 white LEDs deliver powerful wash and strobe

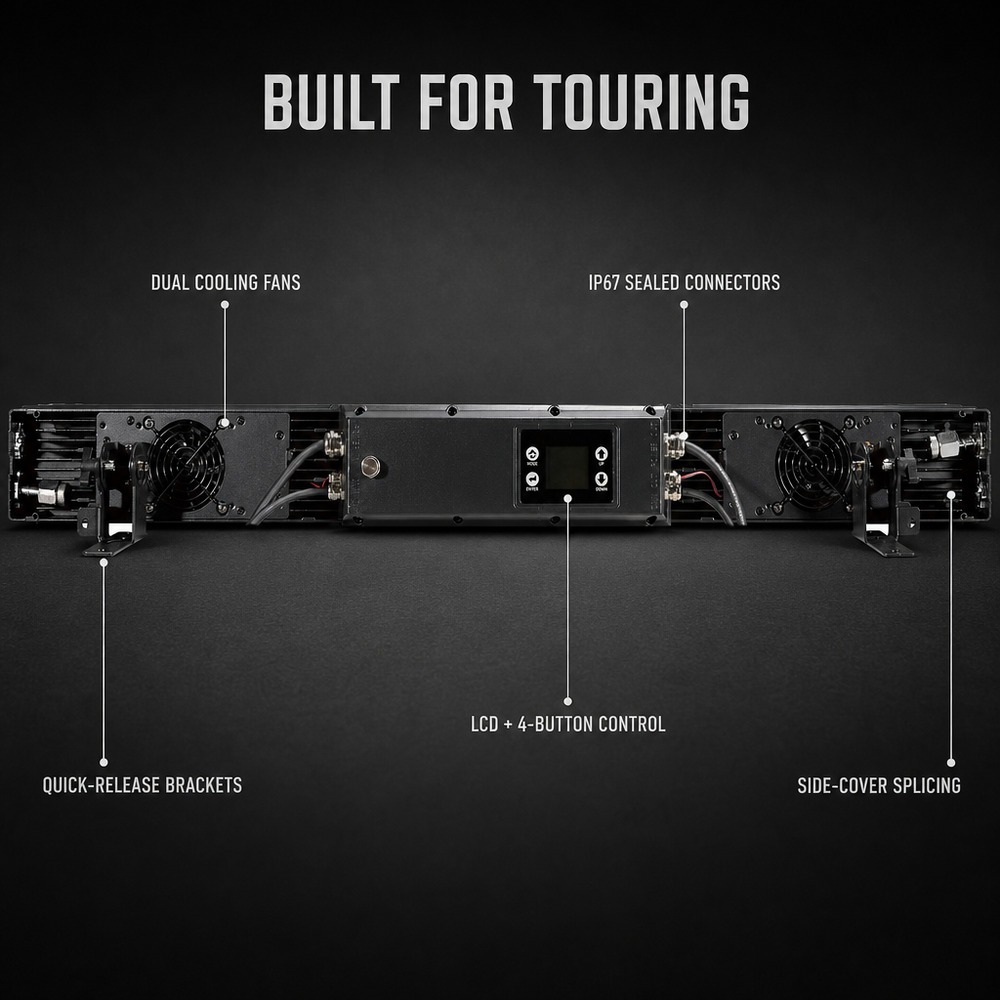

- Dual Cooling Fans: Efficient heat dissipation for continuous touring operation
- LCD + 4-Button Control: Intuitive onboard menu for quick setup
- Quick-Release Brackets: Fast mounting and removal on truss
- Side-Cover Splicing: Daisy-chain multiple units for seamless long bars
- IP67 Sealed Connectors: Weatherproof DMX and power links
- RDM Supported: Remote Device Management for address and parameter configuration
DMX Channel Modes:
This fixture supports 12 DMX channel modes for flexible control:
- CH7 Mode: Red, Green, Blue, White, Dimming, Dimmer Fine, Atomization
- CH15 Mode: RGBW + Macro Color + Strobe + Effects + Atomization
- CH21 Mode: RGBW independent dimming, strobe, modes and atomization
- CH39 Mode: 8-zone RGB + 4 white + dimming/strobe/atomization
- CH112 Mode: 32-zone RGB + 16 white individual control (full pixel mapping)
- CH33 Mode: 8-zone RGB + 8 white + atomization
- CH65 Mode: 16-zone RGB + 16 white + atomization
- CH68 Mode: Dimming + RGB/White strobe + 16-zone RGB + 16 white
- CH117 Mode: Full 32-zone RGB + 16 white with strobe and atomization
- CH70 Mode: Dimming + RGB/White strobe + 16-zone RGB + 16 white + fade effects
Applications:
- Concerts and music festivals
- Outdoor stage events and touring
- Nightclubs and bars
- Wedding and corporate events
- Architectural facade lighting
- Theater and TV studio
