Hosen Lighting

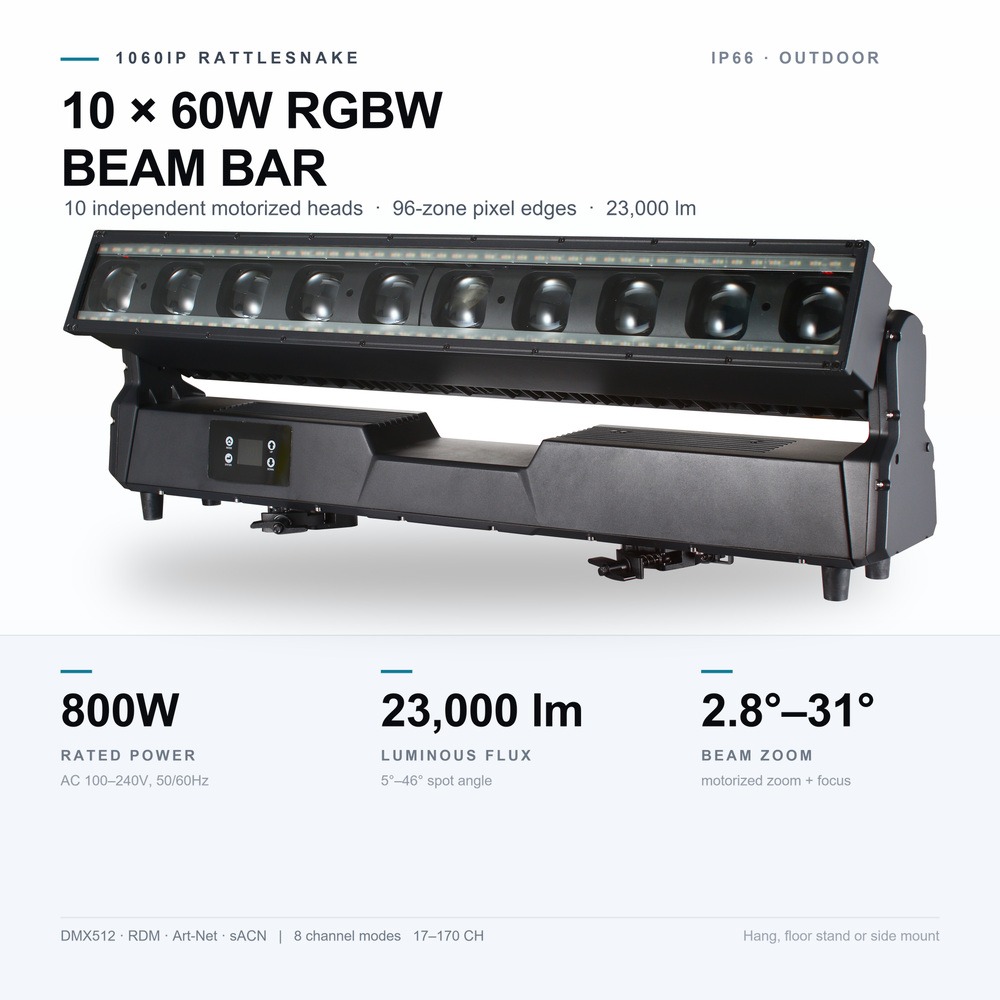

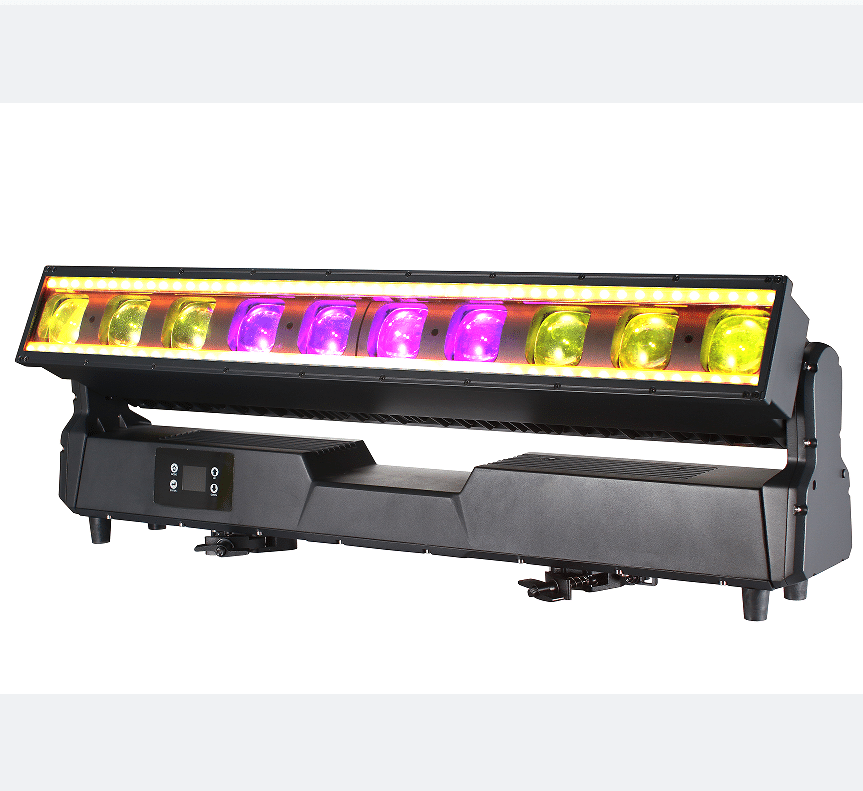

IP66 Waterproof 10x60W RGBW LED Rattlesnake Beam Bar
* Warranty: Within 2 year.[ free to repair, provide any accessories,if need return back to factory,Buyer need pay for the shipping cost.]

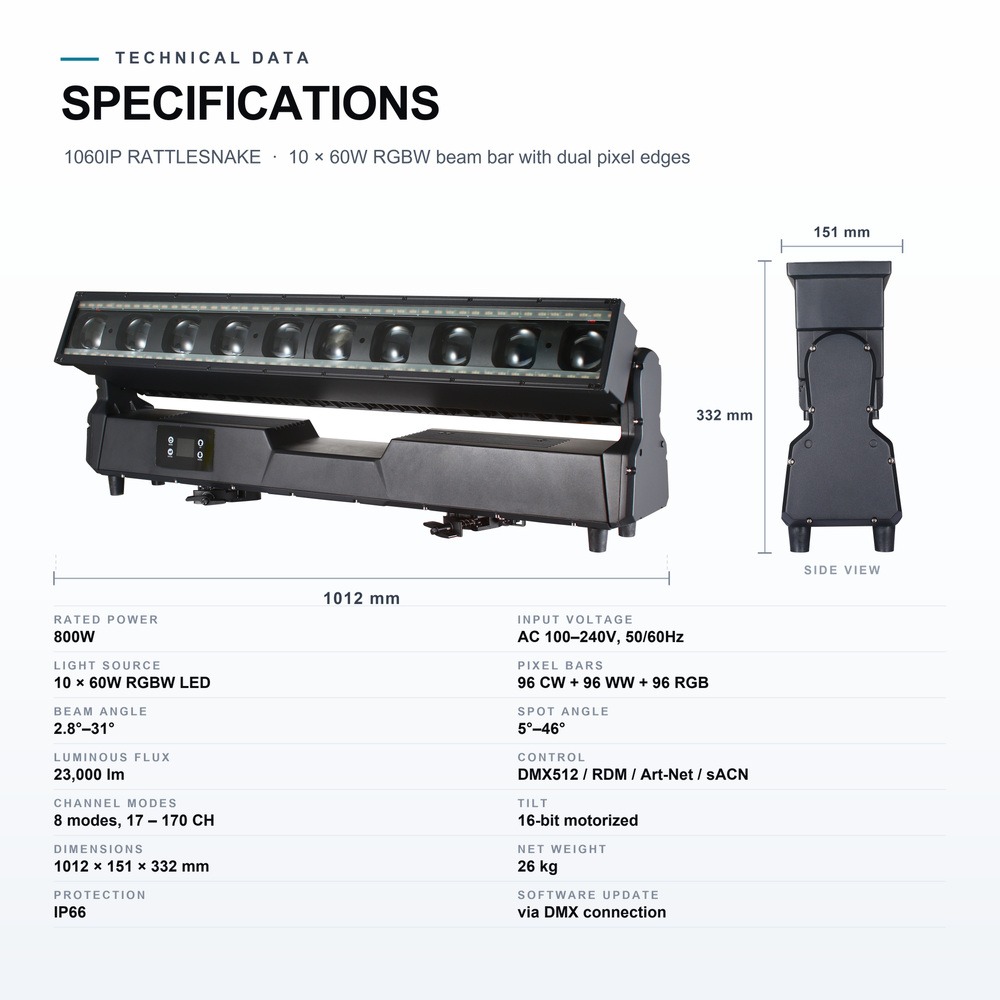

Product Technical Parameters:
- Model: HS-1060IP
- Input Voltage: AC100-240V, 50/60Hz
- Total Power: 800W
- Beam LEDs: 10 x 60W RGBW 4-in-1 LEDs
- Strobe LEDs: 96 x 2W CW + 96 x 2W WW + 96 x 1W RGB LEDs
- Beam Angle: 2.8°-31° (beam end)
- Spot Angle: 5°-46° (beam end)
- Luminous Flux: 23,000 lumens
- Control Protocols: DMX512 / RDM / Art-Net / sACN
- DMX Channels: 8 modes: 17/27/99/108/168/8+100/8+160/170CH
- Pan/Tilt: 202° vertical scan (16-bit resolution)
- Display: LCD, 4 touch buttons
- IP Rating: IP66
- Dimensions: 1012 x 151 x 332 mm
- Net Weight: 26 kg
Key Features:

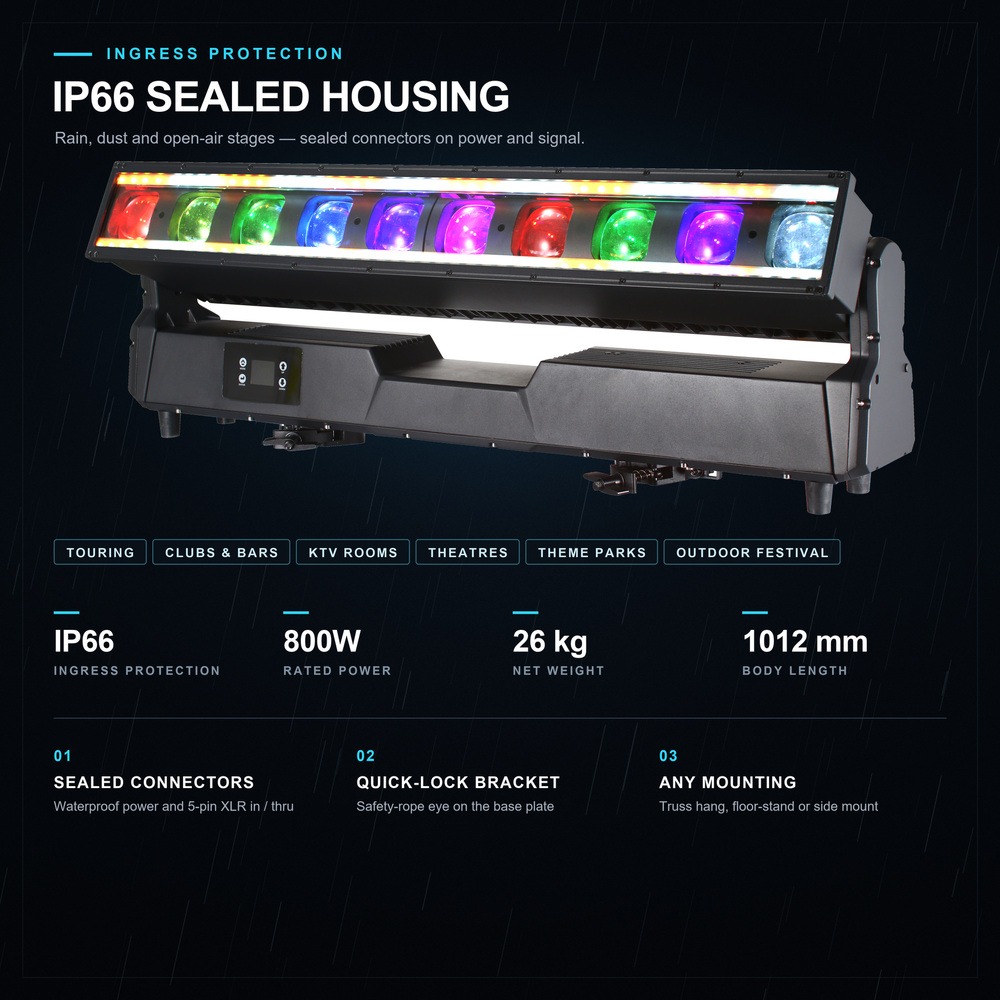

- IP66 waterproof rating — fully rated for outdoor use in rain, humidity and harsh weather.

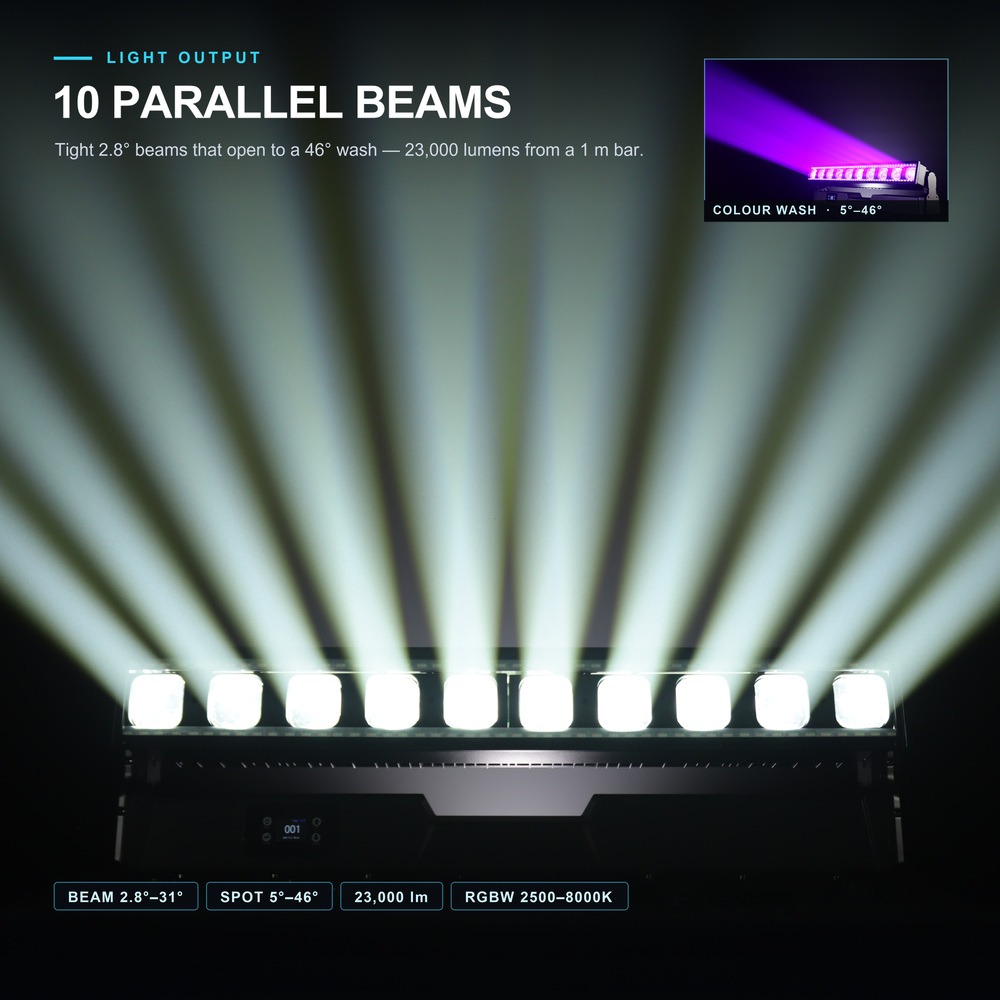

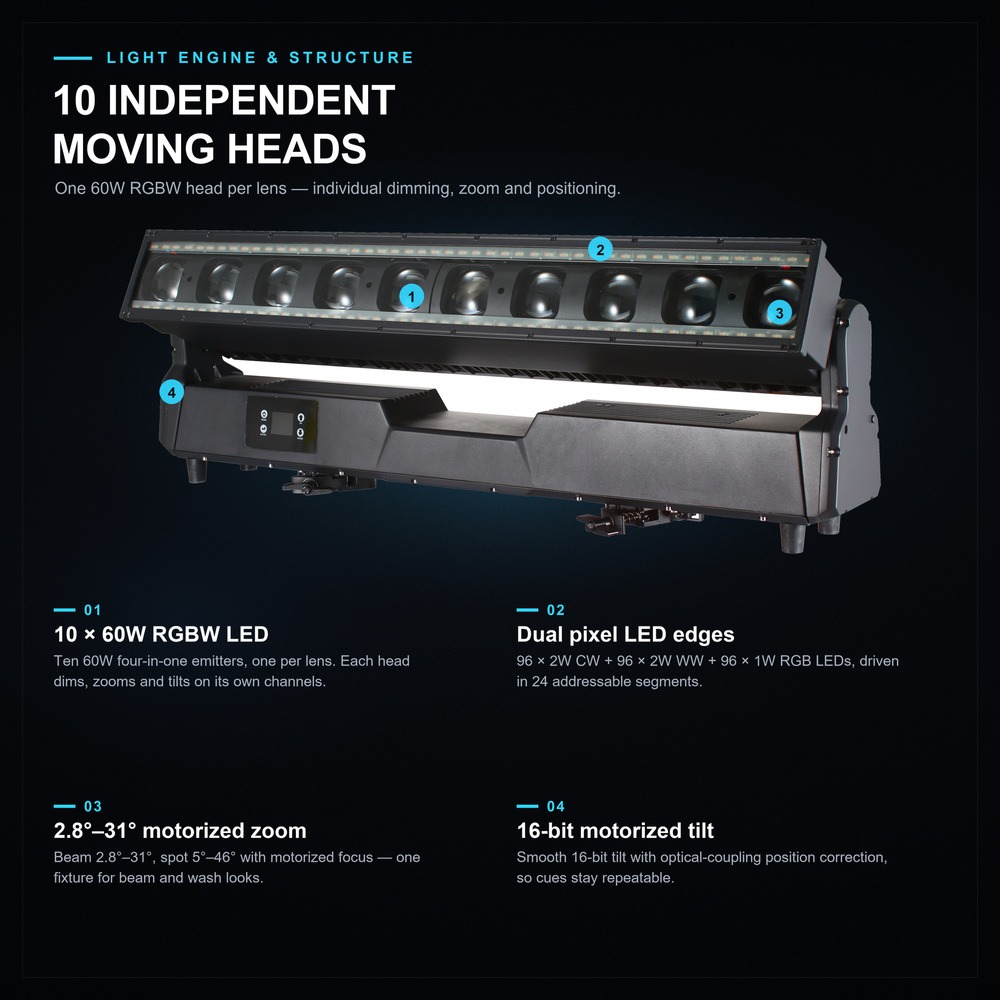

- 10 x 60W RGBW 4-in-1 LEDs deliver 23,000 lumens with adjustable beam angle from 2.8° to 31°.
- Integrated strobe array: 96x2W CW + 96x2W WW + 96x1W RGB for powerful wash and strobe effects.

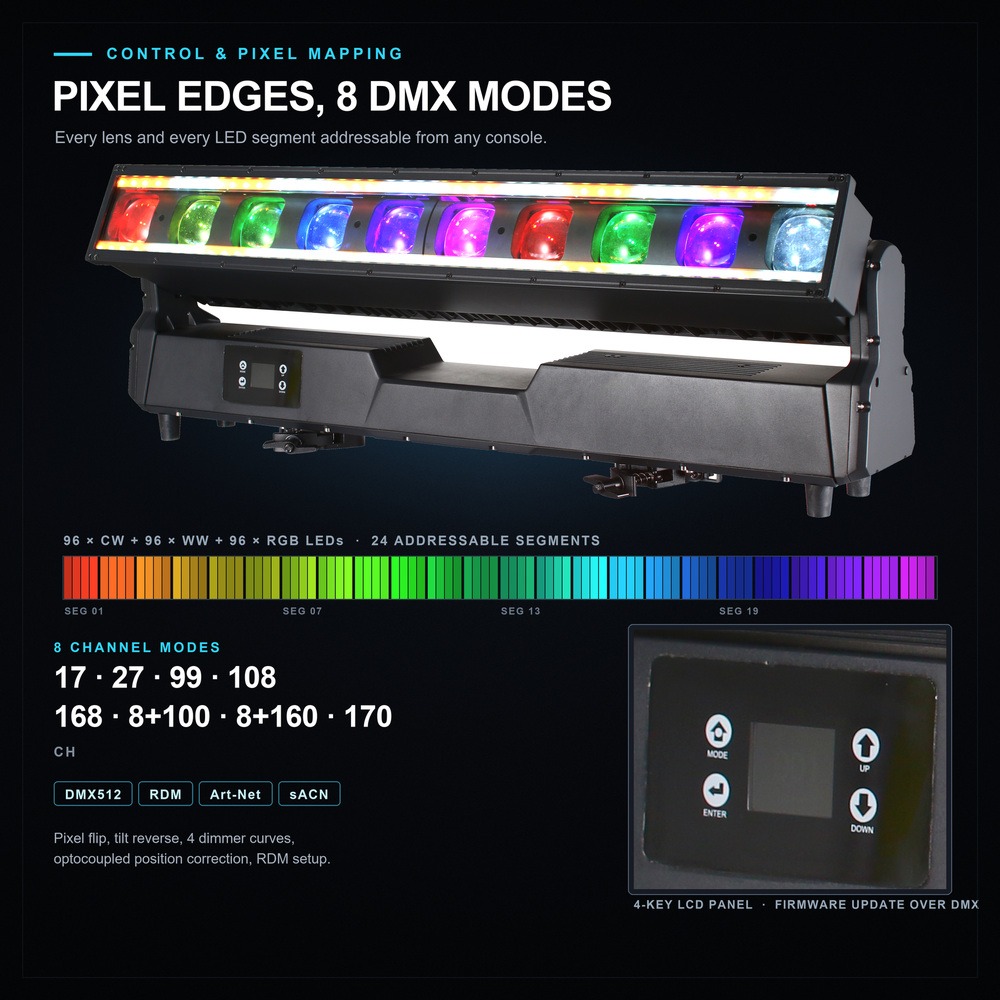

- Full protocol support: DMX512, RDM, Art-Net and sACN for modern media server integration.
- 8 DMX channel modes from simple 17CH to full pixel-level 170CH control.
- 202° vertical scan with 16-bit resolution for smooth, precise movement.
- Ultra-long 1-meter bar form factor — ideal for wall washing, contour lighting and large-scale installations.
- Software upgradeable via DMX connection.
Applications:
- Outdoor concerts, festivals and architectural lighting
- Large-scale stage productions and touring shows
- TV studios and broadcast events
- Building facade and contour lighting
- Club and bar installations
- Corporate events and product launches
